JUKI LU-2860 2 Needle Unison Feed Walking Foot Semi-Dry Direct-Drive Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI LU-2860

2-Needle Unison Feed Walking Foot Semi-Dry Direct-Drive Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

This machine is suited to the sewing of car seats, sofas, and bags. It is a sewing machine provided with dramatically improved workability and functions which are required for sewing large products and extra heavy-weight materials.

Juki's unique feed mechanism promises excellent efficiency of feed. In addition to the standard models of 1-needle and 2-needle machines, other models intended for special purposes are available, including models for extra heavy materials and one having a thread trimmer.

MACHINE FEATURES:

FUNCTIONS FOR IMPROVING SEAM QUALITY AND WORKABILITY

The long distance from the machine arm to the needle contributes to improved workability.

DOUBLE TENSION PROVIDED AS: STANDARD

Single or Double can be set easily through a Multi-functional 6-string switch, regarding the machine with the trimmer. (Available for more thick material)

MULTI-FUNCTIONAL 6-STRING SWITCH (THREAD TRIMMING SWITCH)

In addition to the one-touch type reverse feed switch, a multi-functional 6-string switch is also provided. Changeover of the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one switch.

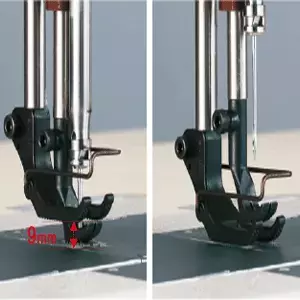

WALKING-FOOT/PRESSER-FOOT ALTERNATING VERTICAL MOVEMENT MECHANISM

The sewing machine has adopted a feed mechanism that keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the sewing machine.

HIGHER LIFT OF THE PRESSER BAR

A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and heavy-weight sponges, which are usually used as materials for expensive sofas, can be carried out with ease.

ECCENTRICITY OF THE FEED DRIVING CAM IS ADJUSTABLE

Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best suited to the material and thread used. It is no longer necessary to prepare other subclass model sewing machines.

NEW LUBRICATION SYSTEM

Lubrication system is powerful and stable even low speed.

NEW BOBBIN THREAD SPOOL DEVICE

New bobbin thread spool device is no necessity of rolling thread manually.

STITCH LENGTH CAN BE CHANGED OVER AMONG DIFFERENT LENGTHS

The sewing machine with a thread trimmer is provided as standard with a 2-pitch dial. One unit of this sewing machine is able to sew different sewing lengths since the sewing length can be instantaneously changed over.

2.0 / 2.7 FOLD-CAPACITY HOOK

The hook can be adjusted with a screw amount of needle guard contact to the needle. The needle guard can be easily adjusted. Therefore, it prevents stitch skipping and wear of hook edge.

HIGH-TORQUE DIRECT-DRIVE MOTOR IS INSTALLED

The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts. The direct-drive motor system has been adopted by all of the sewing machines with a thread trimmer. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, thereby demonstrating improved responsiveness. In addition, the machine is no longer provided with a V-belt. This means that the adoption of the direct-drive motor is also effective in the elimination of belt shavings. Power is directly transmitted from the motor to the sewing machine, thereby contributing to reduced power consumption. (This sewing machine reduces power consumption by 37% as compared with the conventional models.) Adoption of a direct-driven main shaft and a revamping of mechanism design contribute to remarkably reduced noise. Noise has been reduced by 3.5dB as compared with the conventional model to produce this operator-friendly machine.

NEW-TYPE TANK-STYLE AUTOMATIC LUBRICATION MECHANISM HAS BEEN ADOPTED

The oil dropped from the hook and its surrounding sections into the under-cover is filtered to remove dirt and dust and is then returned to the oil tank. This method saves the effort of oiling and reduces oil consumption. The remaining oil quantity indicator is provided on the front face of the machine head. Lubrication can be carried out without tilting the machine head.

DOWNLOADS:

• Instruction Manual - JUKI LU-2860
• Engineer's Manual - JUKI LU-2860
• Parts List - JUKI LU-2860
• Catalog - JUKI LU-2860

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.
