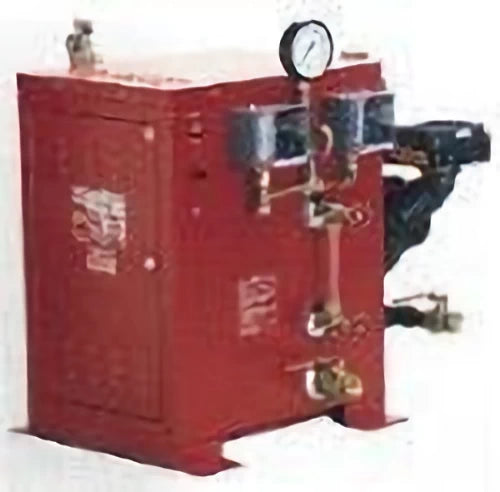

12KW Thru 72KW Automatic Electric Boiler 208-480V BOILER ONLY

Introducing the revolutionary compact and fully automatic boiler, meticulously designed for hassle-free operation and minimal maintenance. Equipped with a convenient blow-down valve, it allows for effortless purging of boiler water and efficient removal of corrosive materials, ensuring long-lasting durability. Rest assured with these cutting-edge built-in safety features, including a safety valve, water gauge, and automatic shut-off mechanism, providing unparalleled peace of mind. Engineered with precision, this boiler is built to deliver unlimited hours of high-quality steam precisely where high-pressure steam is required, offering unmatched performance and reliability.

MACHINE SPECIFICATIONS:

Electricity:
- 12 KW: Single Phase/50 AMP; Three Phase/29 AMP; 1.2 HP
- 18 KW: Single Phase/75 AMP; Three Phase/44 AMP; 1.8 HP
- 24 KW: Single Phase/100 AMP; Three Phase/58 AMP; 2.4 HP
- 36 KW: Single Phase; Three Phase/44 AMP; 3.6 HP
- 48 KW: Single Phase; Three Phase/58 AMP; 6.4 HP
- 60 KW: Single Phase; Three Phase/73 AMP; 8.0 HP
- 72 KW: Single Phase; Three Phase/87 AMP; 9.7 HP
Steam Output Per Hour:
- 12 KW: 41 Lbs
- 18 KW: 62 Lbs
- 24 KW: 83 Lbs
- 36 KW: 124 Lbs
- 48 KW: 166 Lbs
- 60 KW: 166 Lbs
- 72 KW: 166 Lbs
Net Weight (Without Irons):
- 12 KW: 242 Lbs
- 18 KW: 242 Lbs
- 24 KW: 263 Lbs
- 36 KW: 288 Lbs
- 48 KW: 444 Lbs
- 60 KW: 444 Lbs
- 72 KW: 444 Lbs
Product Dimensions:
- 12 KW: 22” x 29” x 31”
- 18 KW: 22” x 29” x 31”
- 24 KW: 22” x 29” x 31”
- 36 KW: 22” x 29” x 39”
- 48 KW: 26” x 31” x 45”
- 60 KW: 26” x 31” x 45”
- 72 KW: 26” x 31” x 45”
Construction:
- Boiler: Steel
Operating Pressure:
- Normal: 80 psi
- Max: 100 psi

Made in USA

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
