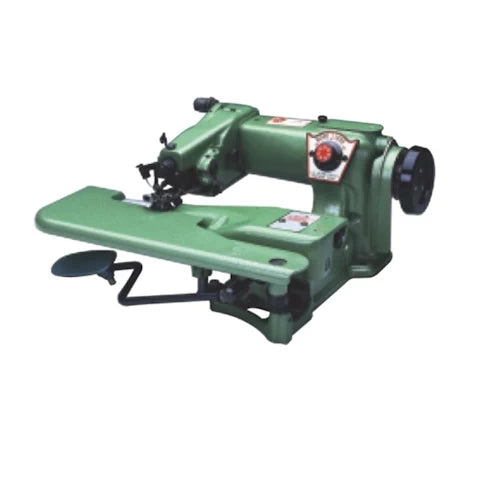

Consew 1118-4 Full Size Blind Hem Stitch Industrial Sewing Machine With Table And Servo Motor

Consew 1118-4 Full Size Blind Hem Stitch Industrial Sewing Machine With Table And Servo Motor

1118-4

Consew 1118-4 Full Size Blind Hem Stitch Industrial Sewing Machine With Table And Servo Motor

$3,999.95
$3,999.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor

Consew 1118-4

Full Size Blind Hem Stitch Industrial Sewing Machine With Table, Legs,  Servo Motor, and LED Lamp

About the Consew 1118-4

Full-Size Blind Hem Stitch Industrial Sewing Machine With Table And Servo Motor

US BLINDSTITCH MACHINES are SINGLE THREAD, CHAINSTITCH machines that can be set up in many configurations for sewing Belt Loops, Trousers, Trouser Cuffs/Felling, Coat Collars, Lapels, Coat Padding, Hems, etc. Handles cottons, synthetics, corduroys, and knits.

MACHINE FEATURES:

  • Perfect for sewing all weights of materials, including synthetics, woolens, cotton, fabric, and knits
  • 1 to 1 non-skip stitch, typical operations include felling edge tapes, bottoms of trousers, cuffs, wigging in sleeves, facings to canvas and knit goods, turned-up bottoms of fully lined coats, padding collars and lapels, and reinforcing seats
  • 2 to 1 skip stitch for hemming dresses, skirts, slacks, trousers, sportswear, ladies' coats, draperies, blouses, and other articles
  • Suitable for felling operations requiring a skip stitch to simulate hand-stitching
  • 2 to 1 skip stitch is recommended for synthetics and other lightweight materials and 1 to 1 for heavier cotton, woolen, and linen goods
  • Stitch length adjustment by push button
  • Stitch depth penetration adjustment dials
  • Swing down, narrow cylinder arm allows for easy insertion and removal of the workpiece
  • Easy open, swing away work plate for extended working space.

MACHINE SPECIFICATIONS:

  • Number of needles: 1
  • Needle: 300 LG
  • Workspace: Standard
  • Max. Stitch Speed: 1000spm
  • Max Stitch Length: 3 1/2 (7mm)
  • Work Space: 4" (100mm)
  • Looper: 471
  • Cylinder diameter: 2-1/4" (57 mm)

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch, you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of the Servo motor speed control, most users find the machine easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 1118-4 Blind Stitch Sewing Machine
