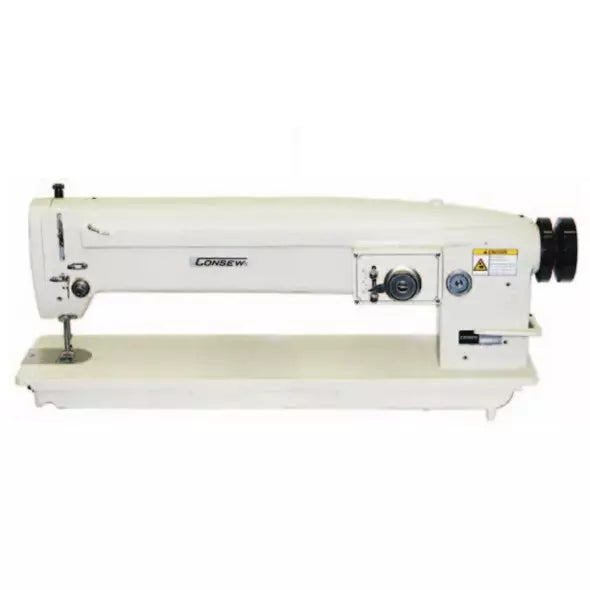

Consew 199RBL-1A-1 Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 199RBL-1A-1 Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

199RBL-1A-1

Consew 199RBL-1A-1 Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

$5,949.99
$5,949.99 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew 199RBL-1A-1 Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher

MACHINE APPLICATIONS:

  • Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.
  • Federal stitch 304

MACHINE FEATURES:

  • Horizontal axis transverse rotary hook
  • Maximum width of zig-zag: 3/8" (9.5mm)
  • Straight stitcher when zig-zag is set to 'O' mm
  • Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
  • Locking zig-zag width regulator
  • Reverse stitching
  • With large bobbin and horizontal axis transverse rotary hook
  • Long Arm (up to 30" can be ordered)
  • Optional: Interchangable between 1A, 2A & 3A stitches; Additional parts required (not included)

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Needle Feed
  • Workspace: Long Arm
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): Zig-Zag 2000 Straight 2000
  • Stitch Length: 5 s.p.i. (5mm)
  • Clearance Under Presser Foot: 15/64" (6mm)
  • Work Space: 10" (258mm)
  • Needle: 135 x 17
  • Bobbin: Metal 2120304-312 Pre-wound M
  • Bed Size: 7 x 18 7/8" (178mm x 480mm)
  • Needle Bar Stroke: 1 11/32" (34mm)
  • Hook: B-79
  • Zig-Zag Stitch Width: 3/8" (9.5mm)

DOWNLOADS:

Catalog - Consew 199RBL-1A-1

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
