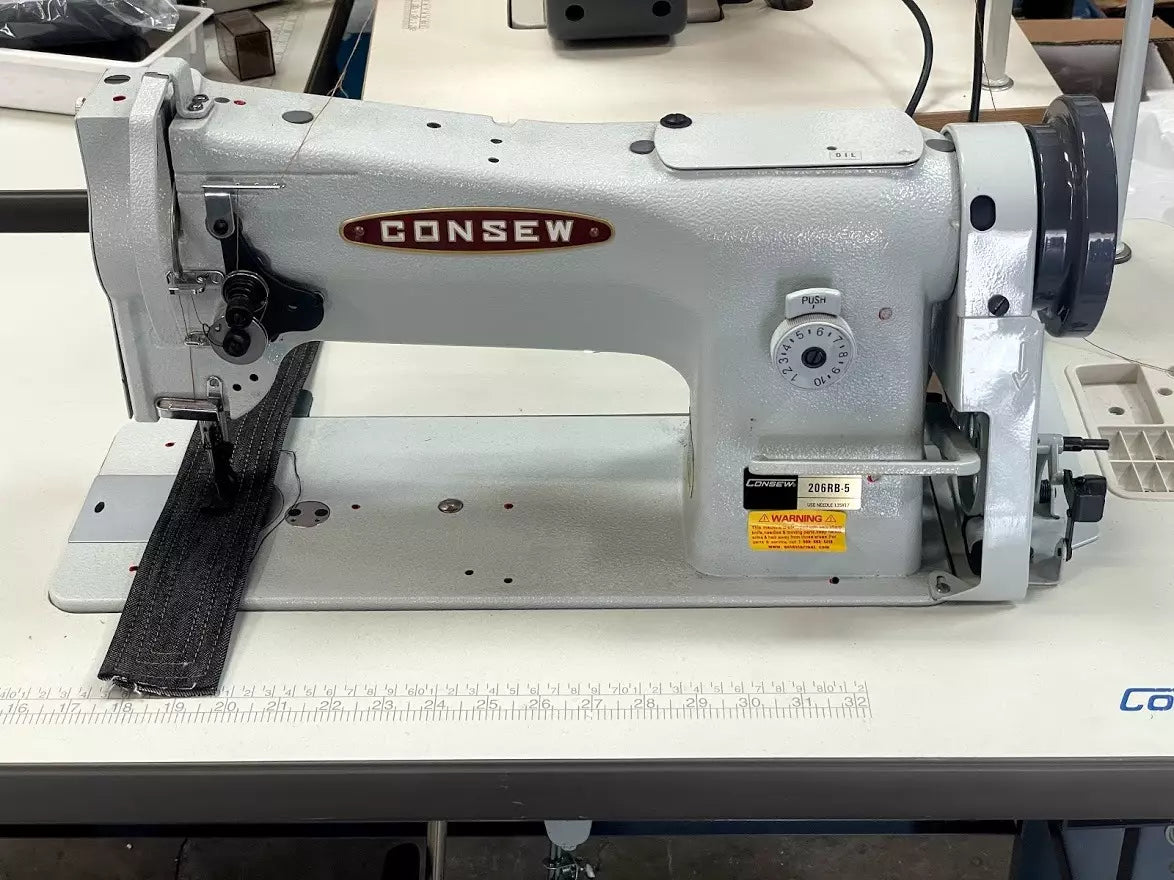

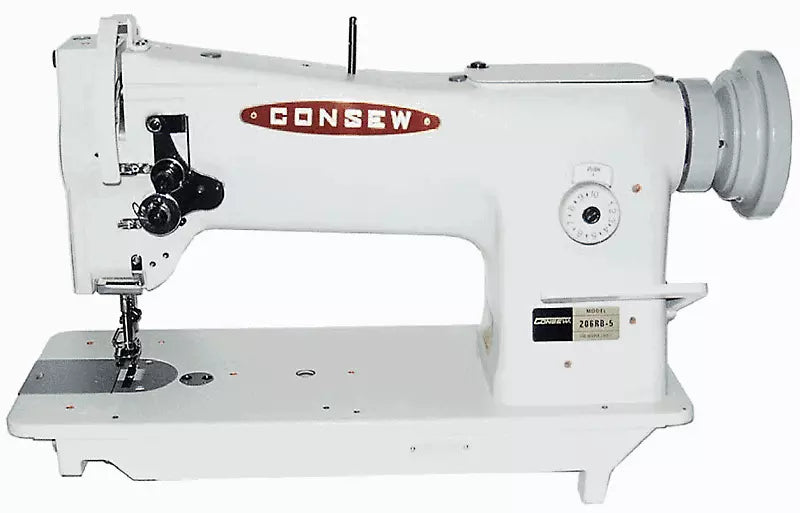

Consew 206RB-5 Triple Feed Heavy Duty Single Needle Drop Feed Lockstitch Upholstery Industrial Sewing Machine With Table and Servo Motor

Consew 206RB-5 Triple Feed Heavy Duty Single Needle Drop Feed Lockstitch Upholstery Industrial Sewing Machine With Table and Servo Motor

206RB-5

Consew 206RB-5 Triple Feed Heavy Duty Single Needle Drop Feed Lockstitch Upholstery Industrial Sewing Machine With Table and Servo Motor

$1,849.95
$1,849.95 Market price: $2,699.99 Save 31%
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor
  • More accessories

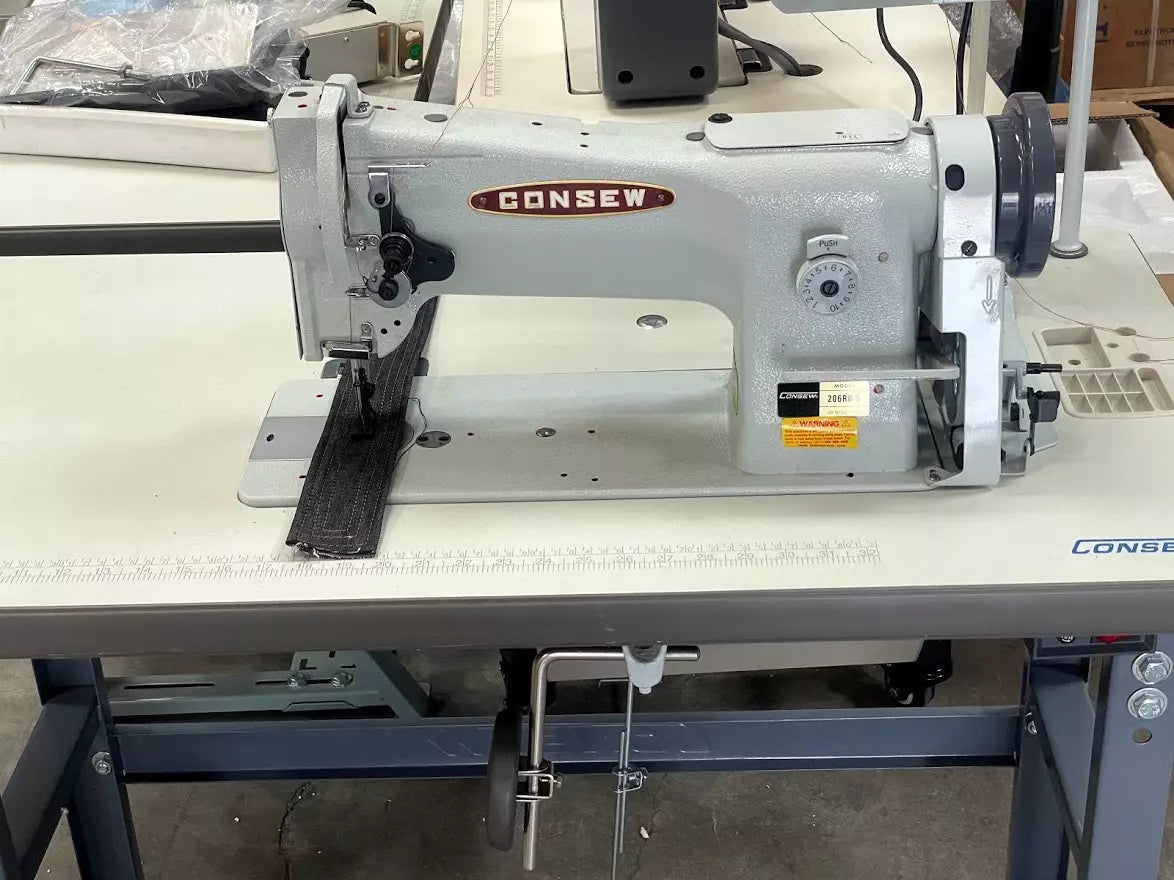

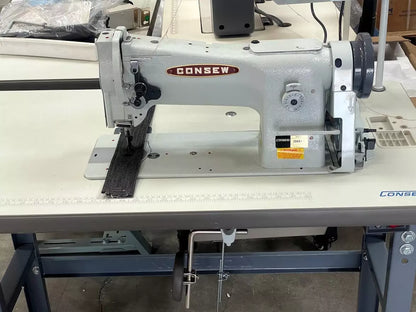

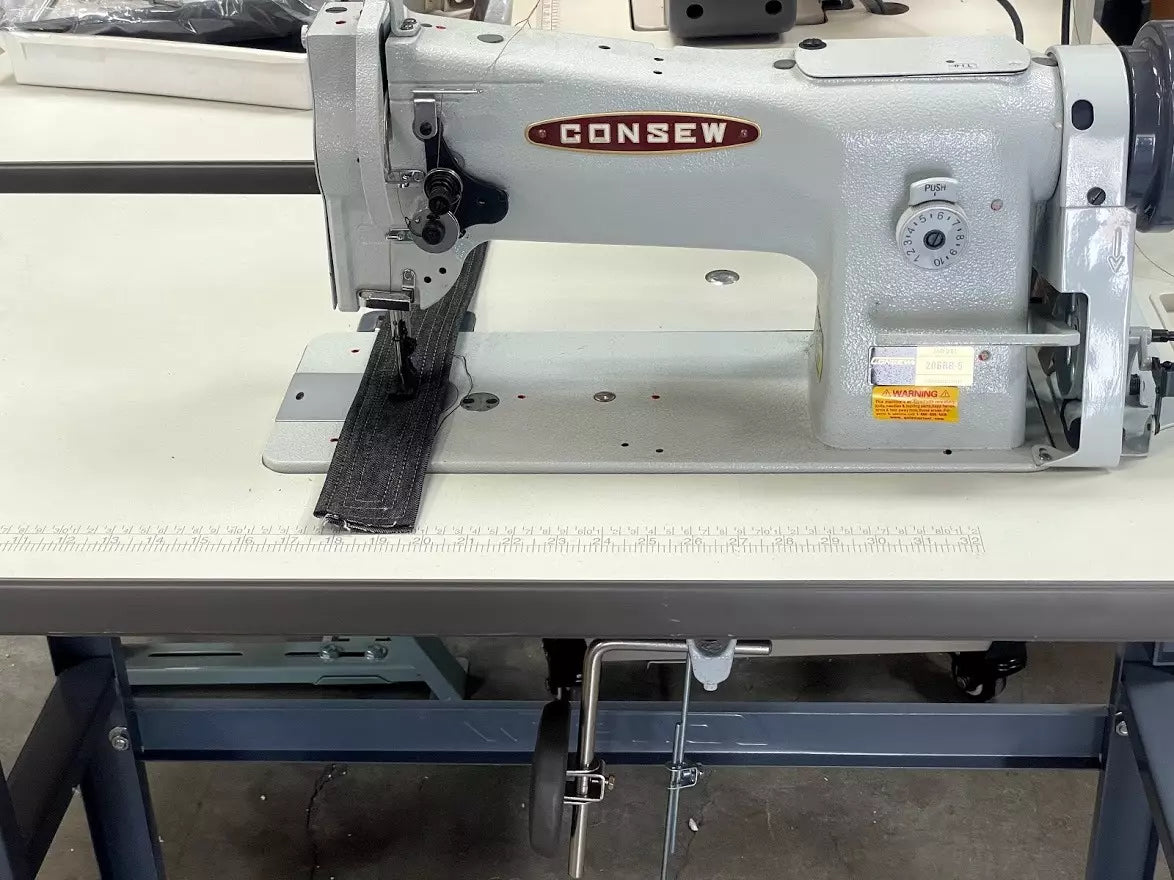

Consew 206RB-5 Triple Feed Heavy Duty Single Needle Drop Feed Lockstitch Upholstery Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

One of the ALL-TIME BEST SEWING MACHINES from CONSEW, the 206RB-5 has been used by thousands of hobbyists and professional sewers all over the world.

Centralized Arm Lubrication, Reservoir-Oiled Hook with Micrometic Control Valve, Large Horizontal Axis Rotary Hook and Bobbin, Adjustable Reverse Feed, Locking Stitch Regulator, Safety Clutch

MACHINE APPLICATIONS:

For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products.

Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances etc.

MACHINE FEATURES:

  • Extra long stitch - 2-1/2 S.P.I. (10mm)
  • Large Bobbin. Bobbin can be changed without removing object being sewn
  • Thread release finger (for heavy thread)
  • High presser foot lift - 9/16" (14mm)
  • Centralized arm lubrication. Reservoir-oiled hook with micrometric control valve
  • All gear driven hook mechanism. Large horizontal axis hook
  • Safety clutch with push-button re-engagement
  • Adjustable reverse stitching can be same length as forward stitch
  • Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
  • Walking feet, needles and other attachments interchangeable with Consew model 226R-2, 255RB-2
  • Needle plate, foot, and feed dog can be changed for special operations
  • Standard attachments easily installed
  • Compound feed, walking foot mechanism ensures even feeding of material
  • Locking stitch regulator prevents changes in stitch length from vibration

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Max Speed: (S.P.M.) 3300
  • Clearance Under Presser Foot: 9/16" (14mm)
  • Stitch Length: 2 1/2 s.p.i. (10mm)
  • Large Work Space: 10 5/16" (258mm)
  • Needle: 135 x 17
  • Feed Dog: 18031
  • Bobbin: Pre-Wound M
  • Bed Size: 7" 18 7/8" (178mm x 480mm)
  • Stitch Type: 301
  • Gross Weight: 82 lbs. (37.25 kgs)
  • Total Carton Size: 23" x 10" x 22"
  • Needle Bar Stroke: 1 5/16" (33mm)Hook 18033

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3><u><strong>ACCESSORIES for the CONSEW 206RB-5</strong></u></h3> <p> </p> <div class="row"> <div class="col-lg-6"> <p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-m-style-bobbins-18034.htm" target="_blank">Large "M" Style Bobbins #18034</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Metal "M" Size #18045</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-walking-foot-consew-18030.htm" target="_blank">Consew #18030</a><br><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-consew-18031.htm" target="_blank">Consew #18031</a></p><br> <p><em><strong>PRESSER FOOT KIT<br></strong></em><a href="https://www.goldstartool.com/walking-foot-presser-foot-kit-18-sets-of-feet.htm" target="_blank">Walking Foot Presser Foot Kit - 18 Sets of Feet</a></p> <p></p> </div> <div class="col-lg-6"> <h3><strong>COMPATIBLE PRESSER FOOT OPTIONS</strong></h3> <p><a href="https://www.goldstartool.com/with-teeth-walking-presser-foot-set-10796t-10795t.htm" target="_blank">With Teeth #10796T, 10795T</a><br><a href="https://www.goldstartool.com/without-teeth-walking-presser-foot-set-10796-10795.htm" target="_blank">Without Teeth #10796, 10795</a><br><a href="https://www.goldstartool.com/zcording-welting-piping-industrial-walking-presser-foot-set-s84-s83-.htm" target="_blank">Double Cording/Welting/Piping #S84, S83</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-s31-s32.htm" target="_blank">Welting/Piping/Cording #S31, S32</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank">Welting/Piping/Cording #10796K, 10795K</a><br><a href="https://www.goldstartool.com/cut-out-welting-presser-foot-set.htm" target="_blank">Cut Out Welting #S68</a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/zipper-cording-welting-piping-industrial-walking-presser-foot-set-s94-s93-.htm" target="_blank">Zipper/Cording/Welting/Piping #S94, S93</a><br><a href="https://www.goldstartool.com/left-edge-guide-topstitch-industrial-walking-presser-foot-s585l.htm" target="_blank">Left Edge Guide Topstitch #S585L<br></a><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-s585r.htm" target="_blank">Right Edge Guide Topstitch #S585R<br></a><a href="https://www.goldstartool.com/left-triple-transport-walking-presser-foot-set-10796l-10795l.htm" target="_blank">Left Triple Transport #10796L, 10795L<br></a><a href="https://www.goldstartool.com/right-triple-transport-industrial-walking-presser-foot-set-10796r-10795r.htm" target="_blank">Right Triple Transport #10796R, 10795R</a></p><br><br> <p></p><h3>OTHER ATTACHMENTS</h3> <p><em><strong>BINDERS/FOLDERS</strong><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank"><br></a></em><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank">Raw Edge Plain Tape Binder Binding Attachment #100LS</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/industrial-cover-stitch-collarette-bindertop-mount-style-clean-finish-double-fold.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p> <p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p> <p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p> <p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p> <p><strong><em>GUIDES<br></em></strong><a href="https://www.goldstartool.com/practical-suspended-edge-guide-gb-6-juki-mah-15201-0a0.htm" target="_blank">Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0</a></p> </div> </div>

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

ACCESSORIES for the CONSEW 206RB-5

Needles: Sewing Machine Needles 135x17

Bobbins: Large "M" Style Bobbins #18034

Bobbin Case: Metal "M" Size #18045

Needle Plate: Consew #18030

Feed Dog: Consew #18031

PRESSER FOOT KIT

Walking Foot Presser Foot Kit - 18 Sets of Feet

COMPATIBLE PRESSER FOOT OPTIONS

With Teeth #10796T, 10795T

Without Teeth #10796, 10795

Double Cording/Welting/Piping #S84, S83

Welting/Piping/Cording #S31, S32

Welting/Piping/Cording #10796K, 10795K

Cut Out Welting #S68

Zipper/Cording/Welting/Piping #S94, S93

Left Edge Guide Topstitch #S585L

Right Edge Guide Topstitch #S585R

Left Triple Transport #10796L, 10795L

Right Triple Transport #10796R, 10795R

OTHER ATTACHMENTS

BINDERS/FOLDERS

Raw Edge Plain Tape Binder Binding Attachment #100LS

Double Fold Binder / Binding Attachment Folder #508L

Top Mount Collarette Binder Top Clean

Table Mount Coverstitch Collarette Binder #S124A

HEMMER

Single Fold Up Turn Hemmer #S75U

BUTTONHOLER

Buttonholer Attachment #YS-4455

RUFFLER

Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E

GUIDES

Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
