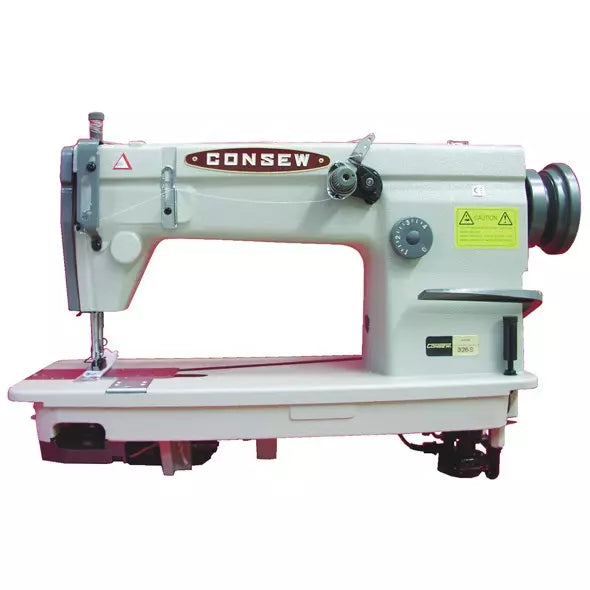

• Consew 326 Series Heavy Duty Double Chainstitch Sewing Machine w/ Table & Servo Motor
1 1

Consew 326 Series Heavy Duty Double Chainstitch Industrial Sewing Machine With Table and Servo Motor

Consew 326 Series Heavy Duty Double Chainstitch Industrial Sewing Machine With Table and Servo Motor

326

Consew 326 Series Heavy Duty Double Chainstitch Sewing Machine w/ Table & Servo Motor

$2,779.99
$2,779.99 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew 326 Series Heavy Duty Double Chainstitch Sewing Machine w/ Table & Servo Motor

High Speed, Single Needle, Tandem or Two Needle, Drop Feed, Double Chainstitch Machine With: Automatic Lubrication System, Dial-Type Stitch Length Regulation, Cam-Type Take-Up Lever, Hinder Presser Foot

APPLICATIONS

  • For sewing light to medium weight fabrics, knits and denim.
  • Suitable for such operations as lap seam felling, hemming, binding, joining and plain stitching
  • Designed for sewing stretchable seams
  • For stitching such products as blouses, shirts, suits, knitted goods, ladies and children's dresses and skirts, coats, pants, uniforms, pajamas, work clothes, etc.

MACHINE FEATURES:

  • Automatic lubrication
  • Dial-type stitch length regulation
  • Cam-type take-up lever minizies tension on the lower threads to allow stitches to stretch
  • Stitches per minute; up to 5000+ *
  • Moving presser foot eliminates slippage and puckering
  • Available as two needle - four thread chainstitch
  • Link-type feeding mechanism and alternating presser feet keep layers together for efficient double chainstitching and eliminating slippage and puckering
  • Also available as two needle - four thread double chainstitch – Models 326D-UF (Double needle) and 326T-UF (Double needle tandem /3 needle)
  • Reverse stitching

MACHINE SPECIFICATIONS:

326S-1 Specs:

  • Number of Needles:1 (Single)
  • Feeding Mechanism:Drop Feed
  • Workspace:Standard Workspace
  • Standard or Full Function:Standard Functions
  • Stitch Type:401
  • Speed, Max (S.P.M.):5600
  • Max Stitch Length:5-1/2 s.p.i. (4.7mm)
  • Needle Bar Stroke:1-3/16" (30mm)
  • Needle Used:149x17
  • Work Space:10" (258mm)
  • Bed Size:7"x18-7/8" (178x478mm)
  • Clearance Under Foot:5/16" (8mm)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

What Is A Servo Motor?

If you’ve ever used a sewing machine that seemed to be pretty loud, that’s probably because it’s a clutch motor. Standard in many older machines, it gets the job done. But a clutch motor heats up after consistent use, and the noise can be really distracting.

Enter the Servo Motor.

This type of motor is built differently. It is brushless and with no moving parts. It’s quieter and uses up to 70% less energy than the clutch motor. Because it uses less energy, it’s also cooler than a clutch, keeping your sewing room or facility cooler (especially with multiple machines.) Plus, less heat means lower energy bills for your home or facility.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
