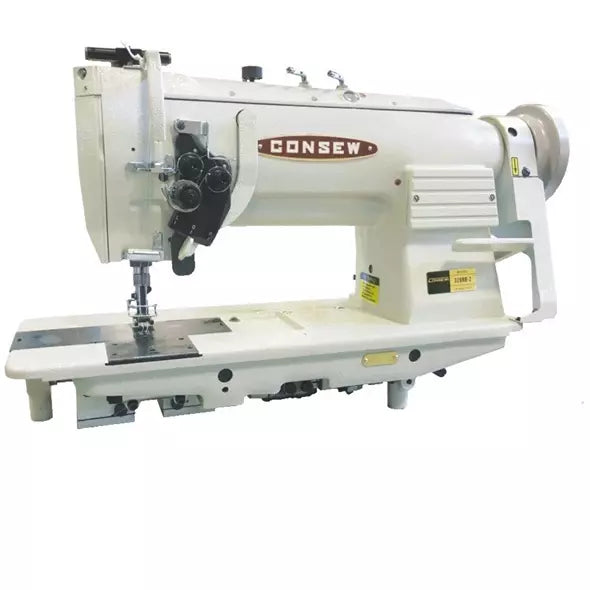

Consew 328RB-2 Double Needle Split Needle Bar Compound Walking Foot Sewing Machine with Table and Servo Motor

Consew 328RB-2 Double Needle Split Needle Bar Compound Walking Foot Sewing Machine with Table and Servo Motor

328RB-2

Consew 328RB-2 Double Needle Split Needle Bar Compound Walking Foot Sewing Machine with Table and Servo Motor

$4,899.95
$4,899.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew 328RB-2

Double Needle Split Needle Bar Compound Walking Foot Sewing Machine with Table, Legs, Servo Motor, and LED Lamp

About the Consew 328RB-2

High Speed 2 Needle Angular Stitching (Split Needle Bar) Drop Feed Needle Feed Walking Foot Lockstitch Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

With: Compound Feed and Walking Foot, Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Hooks and Bobbins, Disengageable Right and Left Needle Bars, Reverse Feed, Safety Clutch

  • Designed for sewing operations that require decorative or functional angular stitching such as collars, lapels, pockets, pocket flaps, etc.
  • Used for stitching such products as men's, ladies', and children's coats, ski wear, jeans, handbags, and travel wear accessories
  • General parallel / two-needle stitching. Topstitching with a split bar for angular sewing turns

MACHINE APPLICATIONS:

  • For medium to heavy-duty materials such as leather, canvas, vinyl, and various laminated and coated materials

MACHINE FEATURES:

  • Compound feed, walking foot mechanism assures perfect feeding of sewing material
  • Large hooks and bobbin cases with their own thread take-up mechanism assure uniform and perfect stitching with minimal bobbin changes
  • Easy operation of disengageable right and left needle bars by use of a finger-touch lever
  • Centra-Lube® semi-automatic lubrication system
  • Automatic hook lubrication
  • Oil fed take-up
  • Stitches per minute - 2200 *
  • Reverse stitching
  • Various gauge sets available
  • Safety clutch protects the hooks from being damaged
  • Simple adjustment permits raising and lowering the center foot which allows for sewing different thicknesses of material

MACHINE SPECIFICATIONS:

  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2000
  • Clearance Under Presser Foot: 11/32" (8.5mm)
  • Stitch Length: 4 s.p.i. (6.5mm)
  • Work Space: 10" (258mm)
  • Needle: 135 x 17
  • Bobbin: Metal 15041 & Pre-wound S or U
  • Bed Size: 7" x 18 7/8" (178m x 477mm)
  • Stitch Type: 301
  • Needle Bar Stroke: 1 1/4" (32mm)
  • Hook: 16407
  • Needle Distances: 1/8" (3.2mm)-1"(25.4mm) (1/4") is standard

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch, you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of the Servo motor speed control, most users find the machine easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
