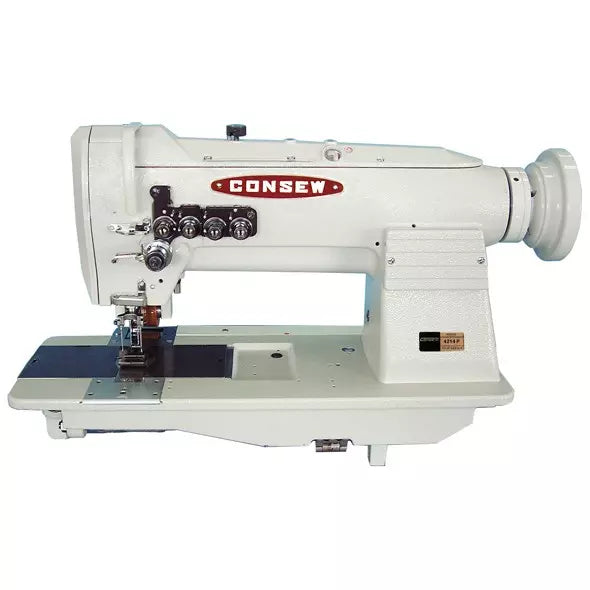

Consew 4214P 4 Needle Heavy Duty Lockstitch with Puller Feed Industrial Sewing Machine With Table and Servo Motor

Consew 4214P 4 Needle Heavy Duty Lockstitch with Puller Feed Industrial Sewing Machine With Table and Servo Motor

4214P

Consew 4214P 4 Needle Heavy Duty Lockstitch Industrial Sewing Machine with Table and Servo Motor

$11,799.95
$11,799.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Synchronizer for Needle Position Control
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew 4214P 4 Needle Heavy Duty Lockstitch Industrial Sewing Machine with Table and Servo Motor

MACHINE APPLICATIONS:

  • The 42I4P four needle lockstitch machine is capable of lockstitching in 4 rows simultaneously and most suitable for multiple seaming (reinforcing) areas of such garments as corset stripping, blanket binding, light weight tents and parachutes, etc. The 4214P is your most efficient machine for quickly and evenly reinforcing areas that require strength.
  • The Puller feeder, for sewing heavy weight materials is very effective in achieving positive feeding of heavy and difficult materials It gives you the ability to make uniform seams without a struggle.

MACHINE FEATURES:

  • Sews four parallel rows of strong lockstitching
  • Easily adjustable stitch length
  • Puller feed for heavy fabric
  • Wide range of available gauges enhances versatility
  • Large maximum needle distance - 38.1 mm
  • Gauge size Standard 1/4 5/16 1/4
  • Gauge size Available 1/4 3/8 1/4
  • Gauge size Available1/4 1/4 1/4
  • Costume sizing also available

MACHINE SPECIFICATIONS:

  • Number of Needles: 4
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2500
  • Motor Type: Servo
  • Stitch Length: 7.1 s.p.i. (3.6mm)
  • Needle: 7x3 (DYx3)
  • Lift of Presser Foot by Knee: 9.6 mm

DOWNLOADS:

Parts List - CONSEW 4214P

Catalog - CONSEW 4214P

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
