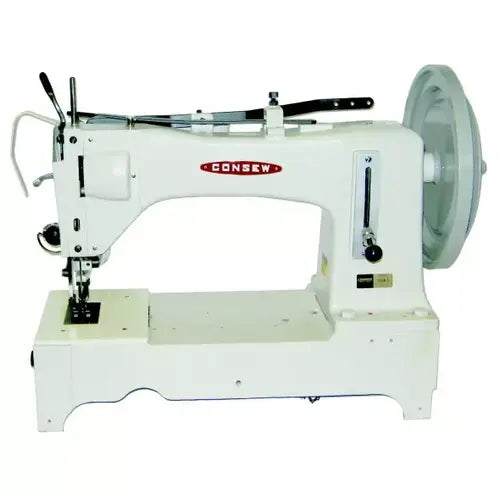

Consew 733R-6 Extra Heavy Duty Long Arm Single Needle Drop Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 733R-6 Extra Heavy Duty Long Arm Single Needle Drop Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

733R-6

Consew 733R-6 Extra Heavy Duty Long Arm Single Needle Drop Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine With Table and Servo Motor

$9,599.95
$9,599.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew 733R-5 Extra Heavy Duty Long Arm Single Needle Drop Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (11/32" / 34mm), Two Row Feeder, Reverse Feed

Also Available:
Model 733R-6AL(N) with air powered reverse and presser footlift
Model 733R-6-36 featuring 36” long arm

MACHINE APPLICATIONS:

  • For stitching extra heavy-weight materials
  • Designed for such operations and products as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding

MACHINE FEATURES:

  • Synchronized upper and lower feeding mechanism assures uniform stitching
  • Alternating presser feet
  • Steel insert for take-up hinge
  • Reverse stitching - hand or foot operated
  • Stitch regulator - hand or foot operated
  • Presser foot lift - hand or foot operated
  • 1-1/4 inch presser foot lift
  • Two row feeder
  • Two stitches to the inch
  • Stitches per minute - 550
  • Extra large, long-beak oscillating shuttle, hook and bobbin
  • Belt guard

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 550
  • Clearence Under Presser Foot: 1 1/4" (32mm)
  • Stitch Length: 2 s.p.i. (13mm)
  • Hook Size: Large
  • Work Space: 16 1/4" (413mm)
  • Needle: 1000 or 1000H
  • Bobbin: Pre-Wound 41
  • Bed Size: 10" x 26 1/4" (258mm x 665mm)
  • Stitch Type: 301
  • Gross Weight: 348 lbs. (158 kgs)
  • Weight: 231 lbs. (105kg)
  • Needle Bar Stroke: 2 3/32" (53mm)
  • Hook: 35224

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
