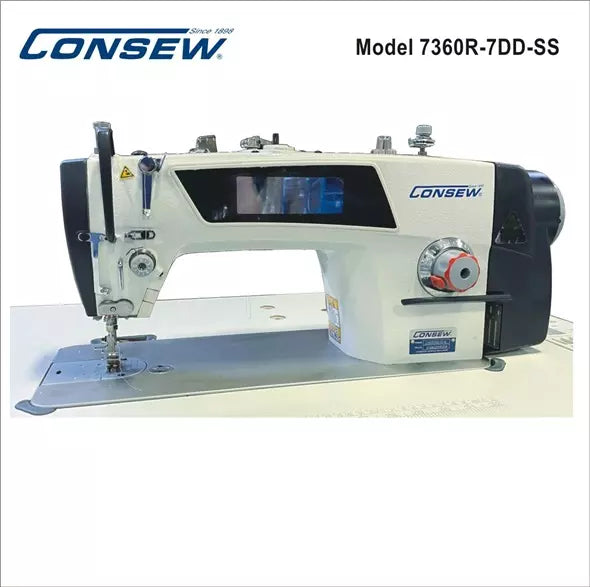

Consew 7360R-7DD-SS High Speed Single Needle Drop Feed with Stainless Steel Bed Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 7360R-7DD-SS High Speed Single Needle Drop Feed with Stainless Steel Bed Lockstitch Industrial Sewing Machine With Table and Servo Motor

7360R-7DD-SS

Consew 7360R-7DD-SS High Speed Single Needle Drop Feed with Stainless Steel Bed Lockstitch Industrial Sewing Machine with Table and Servo Motor

$1,289.95
$1,289.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew 7360R-7DD-SS High Speed Single Needle Drop Feed with Stainless Steel Bed Lockstitch Industrial Sewing Machine with Table and Servo Motor

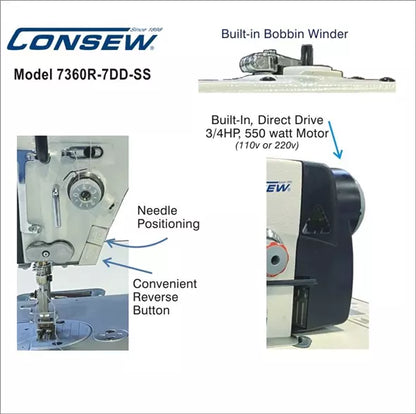

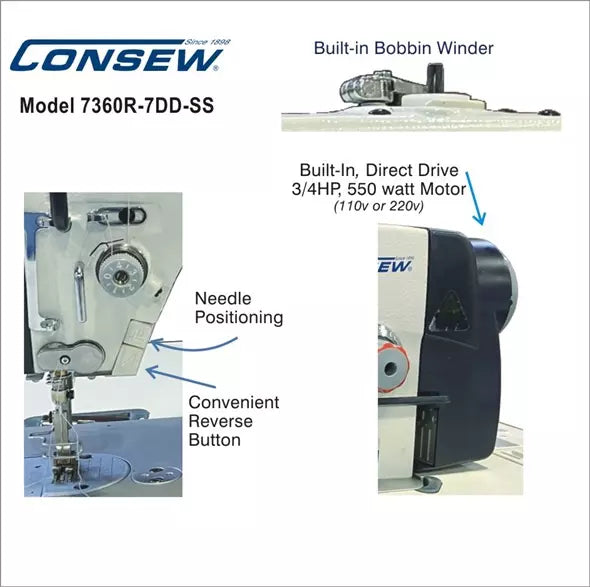

With: Automatic Reverse (backtacking)  •  Auto-lubrication  •  Rotary Hook  •  Needle Positioning  •  Under Bed Thread Trimmer  •  Electric Thread Clamp (holds thread qfter thread trim)  •  Electric Foot Lift   •   Stitch Counter  •  Built-in Bobbin Winder  •  Built-in, Direct Drive, 3/4hp, 550 Watt Motor (110v or 220v)


MACHINE APPLICATIONS:

  • For sewing light to heavy-weight materials including cottons, knits, polyester, nylon, sheer fabrics and denim
  • Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
  • Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle bar

MACHINE FEATURES:

  • Stainless steel bed plate. Longest lasting surface you can find.
  • Advantages of a Stainless Steel Bed Plate:
  • • Preserves the appearance of the bed - No paint to get worn off - Therefore enhancing resale value.
  • • Resists rust.
  • • Lets the fabric move more easily (less friction) thus improving efficiency.
  • • Non-Magnetic - Can be easier when sewing magnetic tape, grommets and snaps.
  • Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
  • Noise and vibration absorbing table mounting
  • Treadle controlled foot lifter
  • Automatic reverse
  • Auto-lubrication rotary hook
  • Under bed thread trimmer
  • Electric thread clamp (holds thread after thread trim)
  • Needle positioning
  • Electric foot lift
  • Stitch counter
  • Built-in bobbin winder
  • Built -in LED light with level settings and on/off switch
  • Built-in 3/4HP, 550 watt Direct Drive Motor (110v or 220v)

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Automatic Functions
  • Speed, Max (S.P.M.): 5000
  • Motor Type: Direct Drive
  • Clearance Under Presser Foot: 1/4" (6mm) , 1/4" (6mm)
  • Stitch Length: 4 s.p.i. (6.2mm)
  • Work Space: 10" (258mm)
  • Needle: DBX1 (#9~#18)
  • Bed Size: 7" x 18 7/8" (177mm x 477mm)
  • Stitch Type: 301 , 301
  • Needle Bar Stroke: 1 1/4" (31.8mm) , 1 1/4" (31.8mm)

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
