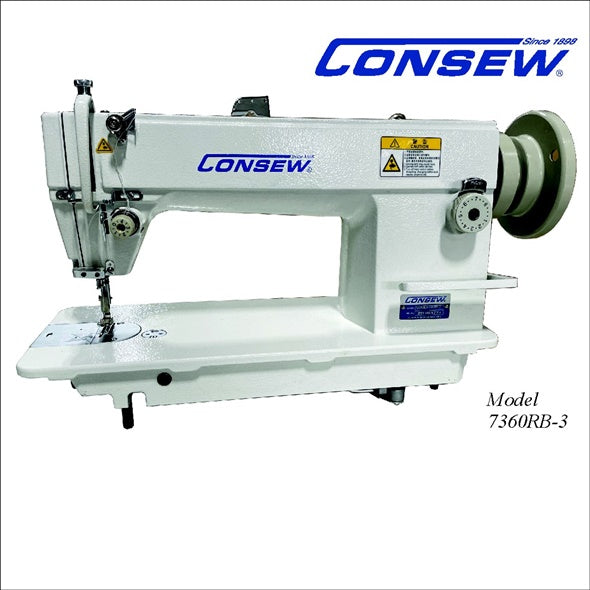

Consew 7360RB-3 Ultra High Speed Single Needle Drop Feed Lockstitch Machine with Automatic Lubrication, Reverse Feed, Japanese Components

Consew 7360RB-3 Ultra High Speed Single Needle Drop Feed Lockstitch Machine with Automatic Lubrication, Reverse Feed, Japanese Components

7360RB-3

Consew 7360RB-3 Ultra High Speed Single Needle Drop Feed Lockstitch Machine with Automatic Lubrication, Reverse Feed, Japanese Components

$1,099.00
$1,099.00 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Synchronizer for Needle Position Control
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

Consew 7360RB-3 Ultra High Speed Single Needle Drop Feed Lockstitch Machine with Automatic Lubrication, Reverse Feed, Japanese Components

Ultra High Speed,  Single Needle, Drop Feed,  Lockstitch Machine.  7360RB-3 is the latest version of this model.

With: Automatic Lubrication, Reverse Feed, Japanese Components

MACHINE DESCRIPTION:

Lockstitch Machine is used to sew various things including jeans,  trousers, shirts,  and other garments.  It is suitable for stitching light to heavy fabrics.  It features a "feather touch" pressure foot lifter,  ensuring convenience.  The white sewing machine comes with a fully automatic lubrication system with a recirculating high-pressure pump.  Equipped with a large bobbin,  the stitching equipment can be used without any hassle.  The servo motor of this sewing appliance consumes less energy and ensures safe operation.  The electric stitching machine comes with a noise and vibration absorbing table that leads to quiet and comfortable stitching.

MACHINE APPLICATION:

  • For sewing light to heavy-weight materials including cottons,  knits,  polyester,  nylon,  sheer fabrics and denim.
  • Suitable for stitching such products as blouses,  shirts,  men's,  ladies and children's apparel,  uniforms,  overalls,  lingerie,  etc.
  • Heavyweight fabrics such as jeans can be sewn by changing the needle plate,  feed dog,  foot,  stitch regulator,  hook and needle bar.

MACHINE FEATURES:

  • Sewing Machine:  Expertly designed to be used in various types of stitching tasks,  this portable stitching machine features fully automatic lubrication and recirculating high-pressure pump.
  • Ergonomic Design:  Equipped with a large bobbin, the electric sewing machine ensures convenience while stitching.  It comes with a noise and vibration absorbing table that ensures silent and smooth operation.
  • Easy To Use:   With a "feature touch" pressure foot lifter,  this stitching apparatus can be used without any hassle.  The drop feed mechanism of the sewing machine makes the work easier.
  • Applications:  Providing standard workspace, the sewing equipment can be used for light to heavy-weight fabric including polyester,  nylon,  and denim.  With pre-wound L and M bobbin,  it is suitable for stitching shirts,  trousers,  and other garments.
  • Product Specifications:  White Lockstitch Machine can be used at a maximum speed of 5500 S.P.M.  It features 22T4-011D and 78T4-002 hook,  1-1/4 in.,  1-5/15 in. needle bar strokes,  1/4 in. clearance under foot,  3-1/2 in.,  10 in. s.p.i.

MACHINE SPECIFICATIONS:

  • Number Of Needles: 1 (Single)
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard Or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 3000, 5500
  • Clearance Under Presser Foot: 1/4" (6mm), 1/4" (6mm)
  • Stitch Length: 3 1/2 s.p.i. (7mm), 5 s.p.i. (5mm)
  • Work Space: 10" (258mm), 10" (258mm)
  • Needle: 16 x 257, 16 x 257
  • Bobbin: Metal 22T4-017 Pre-wound L, Metal 78T4-005 Pre-wound M
  • Bed Size: 7" x 18 7/8" (177mm x 477mm), 7" x 18 7/8" (177mm x 477mm)
  • Stitch Type: 301, 301
  • Needle Bar Stroke: 1 1/4" (31.8mm), 1 5/16" (33mm)
  • Hook: 22T4-011D, 78T4-002

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
