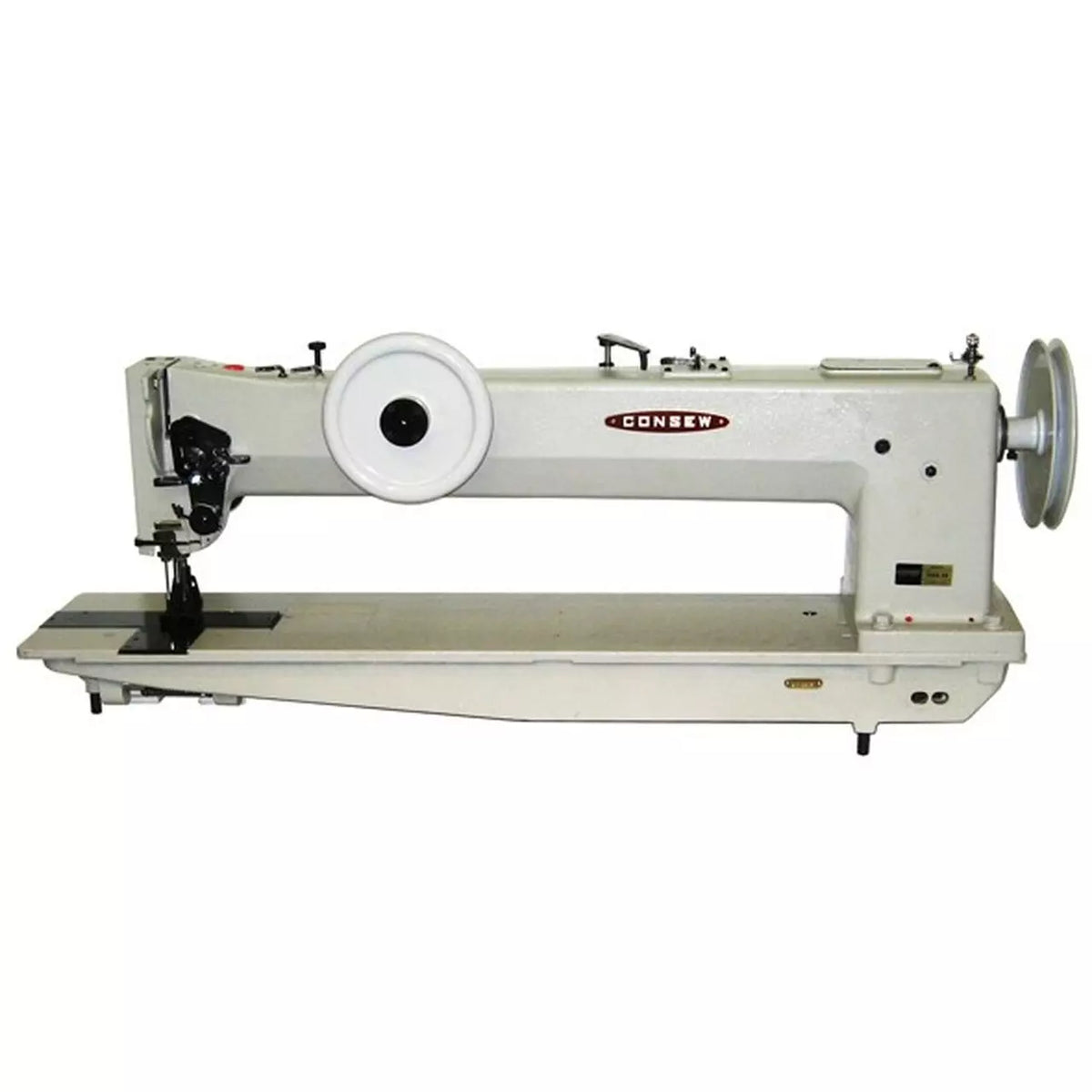

Consew 744R30 Extra Heavy Duty Single Needle 30 Inch Long Arm Walking Foot Industrial Sewing Machine With Table and Servo Motor

Consew 744R30 Extra Heavy Duty Single Needle 30 Inch Long Arm Walking Foot Industrial Sewing Machine With Table and Servo Motor

744R30

Consew 744R30 Extra Heavy Duty Single Needle 30 Inch Long Arm Walking Foot Sewing Machine

$11,999.95
$11,999.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew 744R30 Extra Heavy Duty Single Needle 30 Inch Long Arm Walking Foot Sewing Machine

Extra Heavy Duty, Single Needle (745R30 is 2-needle), Drop Feed, Needle Feed (compound Feed), Alternating Presser Feet Lockstitch Machine

With: Extra Large Bobbins And Vertical Axis Hooks, Centralized Arm Lubrication, Reservoir-oiled Hooks With Micrometric Control Valve

Presser Foot Locking Lever, Push Button Stitch Regulator, Reverse Feed, Safety Clutch, Built-in Bobbin Winder, Front Handwheel

Puller (Optional), One Piece Upper Casting

Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.

Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels

mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.

Suitable for stitching double seams and lap seaming.

Compound feed, walking foot mechanism insures positive and even feeding of the material.

Safety clutch protects the hooks from being damaged in case of accidental strain

Reverse feed operated by foot pedal

Centralized arm lubrication

Reservoir-oiled hooks with micrometric control valve

Presser foot locking lever

Built-in bobbin winder

Push button stitch regulator

Extra heavy duty top shaft with four ball bearings for support

Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes

High lift

Front handwheel (on 30" arm) allows for easy positioning of the needle(s)

745RP is available with optional factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space

Standard or Full Function Standard Functions

Needle 7x3 (DYx3)

Workspace Long Arm

Hook 70140

Feeding Mechanism Walking Foot

Work Space 30" (762mm)

Clearance Under Presser Foot 25/32" (20mm)

Stitch Type 301

Stitch Length 25/64" (10mm)

Bed Size 43 5/16" x 9 1/16" (1100mm x 230mm)

Number of Needles 1 (Single)

Bobbin 70141

Speed, Max (S.P.M.) 1500

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

What Is A Servo Motor?

If you’ve ever used a sewing machine that seemed to be pretty loud, that’s probably because it’s a clutch motor. Standard in many older machines, it gets the job done. But a clutch motor heats up after consistent use, and the noise can be really distracting.

Enter the Servo Motor.

This type of motor is built differently. It is brushless and with no moving parts. It’s quieter and uses up to 70% less energy than the clutch motor. Because it uses less energy, it’s also cooler than a clutch, keeping your sewing room or facility cooler (especially with multiple machines.) Plus, less heat means lower energy bills for your home or facility.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
