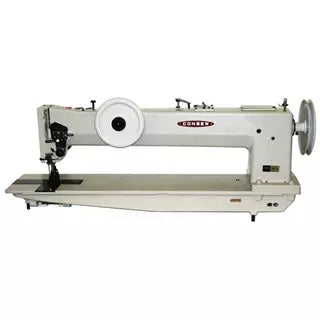

Consew 745R30 Extra Heavy Duty Double Needle Drop Feed Industrial Sewing Machine With Table and Servo Motor

Consew 745R30 Extra Heavy Duty Double Needle Drop Feed Industrial Sewing Machine With Table and Servo Motor

745R30

Consew 745R30 Extra Heavy Duty Double Needle Drop Feed Industrial Sewing Machine with Table and Motor

$13,999.95
$13,999.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 745R30 Extra Heavy Duty Double Needle Drop Feed Industrial Sewing Machine with Table and Motor

Extra Heavy Duty, Double Needle, Drop Feed, Needle Feed (compound Feed), Alternating Presser Feet Lockstitch Machine

Consew 745R30 Extra Heavy Duty Double Needle Drop Feed Industrial Sewing Machine with Table and Motor

Extra Heavy Duty, Double Needle, Drop Feed, Needle Feed (compound Feed), Alternating Presser Feet Lockstitch Machine

APPLICATIONS

  • Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
  • Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.
  • Suitable for stitching double seams and lap seaming.

FEATURES

  • Compound feed, walking foot mechanism insures positive and even feeding of the material.
  • Safety clutch protects the hooks from being damaged in case of accidental strain
  • Reverse feed operated by foot pedal
  • Centralized arm lubrication
  • Reservoir-oiled hooks with micrometric control valve
  • Presser foot locking lever
  • Built-in bobbin winder
  • Push button stitch regulator
  • Extra heavy duty top shaft with four ball bearings for support
  • Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes
  • High lift
  • Front handwheel (on 30" arm) allows for easy positioning of the needle(s)
  • 745RP is available with optional factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.

SPECIFICATIONS

Number of Needles | 2 (Double)

Feeding Mechanism | Walking Foot

Workspace | Long Arm

Standard or Full Function | Standard Functions

Speed, Max (S.P.M.) | 1500

Clearance Under Presser Foot | 25/32" (20mm)

Stitch Length | 25/64" (10mm)

Work Space | 20" (508mm)

Needle | 7x3 (DYx3)

Bobbin | 70141

Bed Size | 33 5/16" x 9 1/16" (846mm x 230mm)

Stitch Type | 301

Hook | 70140

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
