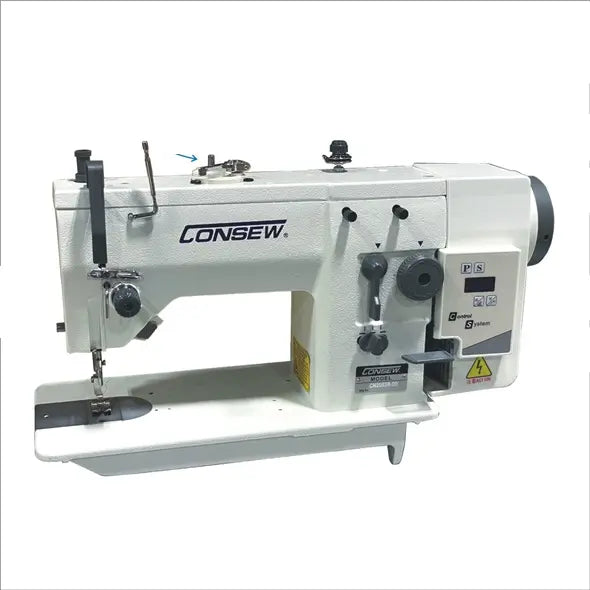

Consew CN2053R-DD Speed Single Needle Drop Feed Zig-Zag Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor

Consew CN2053R-DD Speed Single Needle Drop Feed Zig-Zag Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor

CN2053R-DD

Consew CN2053R-DD Speed Single Needle Drop Feed Zig-Zag Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor

$1,449.95
$1,449.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

CN2053R-DD

Single Needle Drop Feed Zig-Zag Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor

With:

  • Horizontal axis transverse rotary hook
  • Locking zig-zag width regulator lever • Dial stitch regulator
  • Straight stitches when zig-zag set to "0" using straight stitch locking device • Stitches per minute — up to 1800*
  • Reverse stitching with adjustable stitch length
  • Built-in free-hand monogramming lever
  • Metal gears (hardened steel)

MACHINE APPLICATIONS:

  • For sewing light to heavy-weight materials including cotton, knits, polyester, nylon, sheer fabrics, denim, and lightweight leather
  • Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
  • Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook, and needle bar

MACHINE FEATURES:

  • Direct Drive Built-In Servo Motor• Automatic Foot Lift
  • Automatic Reverse
  • Convenient push-button digital control switches
  • Horizontal axis transverse rotary hook - Front Load
  • Dial stitch regulator
  • Locking zig-zag width regulator lever
  • Straight stitches when zig-zag set to "0" and has a straight stitch locking device
  • Reverse stitching with adjustable stitch length
  • Needle Position Adjustment (right•center•left)
  • Needle Position (Stop-Up /Stop-Down)
  • Built-in free-hand monogramming lever
  • Direct Drive Built-in Servo Motor
  • Variable Speed Control
  • Metal gears (hardened steel)

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanisms: Drop Feed
  • Workspaces: Standard Workspace
  • Standard or Full Functions: Standard Functions
  • Stitch Types: 304/301
  • Speed, Max (S.P.M.): 1800
  • Motor Types: Direct Drive Internal
  • Clearance Under Presser Foot Foots: 25/64” (10 mm), Hand 15/64” (6 mm)
  • Stitch Lengths: 5 s.p.i. (5mm)
  • Work Spaces: 8 5/16" (211mm)
  • Needles: 135 x 5
  • Bed Sizes: 7" 15 11/16" (178mm x 398.5mm)
  • Needle Bar Strokes: 1 6/25" (31.5mm)
  • Stitch Width, Max: 11/32" (9mm)

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges are necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

DIRECT-DRIVE SERVO MOTOR:

Direct-drive means no external motor is attached to the machine table. The servomotor motor is housed inside the machine and has no mechanisms, such as a V-belt, which transmits vibrations and noise.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
