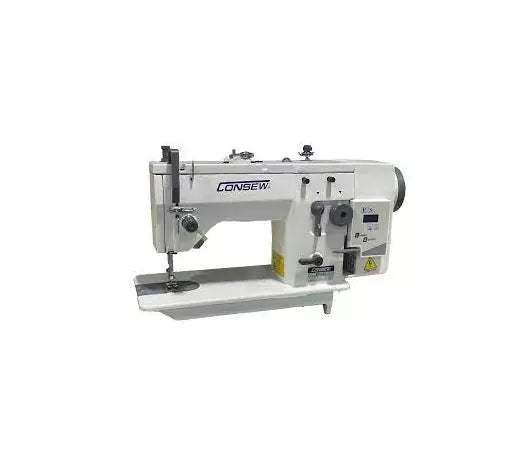

Consew CN2093R-DD Drop Feed, Zig-Zag, Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew CN2093R-DD Drop Feed, Zig-Zag, Lockstitch Industrial Sewing Machine With Table and Servo Motor

CN2093RDD

Consew CN2093R-DD Drop Feed, Zig-Zag, Lockstitch Machine

$1,859.99
$1,859.99 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew CN2093R-DD Drop Feed, Zig-Zag, Lockstitch Machine

APPLICATIONS

  • For sewing light to medium heavy weight fabrics including clothing, shoes and caps, leather articles, bags and more
  • For attaching lace, elastic band, bottom hemming, edge stitching, butted seaming, applique and similar operations
  • Federal stitch type 304

FEATURES

  • Direct Drive Built-In Servo Motor
  • Variable Speed Control
  • Digital Controls
  • Automatic Lubrication
  • Horizontal Axis Rotary Hook - Front Load
  • Reverse Feed
  • Adjustable Reverse Stitch Length
  • Combination Zig-zag And Straight Stitcher
  • Needle Position Adjustment (right•center•left)
  • Needle Position (stop-up /stop-down)
  • Metal gears (hardened steel)

SPECIFICATIONS

Number of Needles | 1 (Single)

Feeding Mechanism | Drop Feed

Workspace | Standard Workspace

Standard or Full Function | Standard Functions

Stitch Type | 304/301

Speed, Max (S.P.M.) | 1800

Motor Type | Direct Drive Internal

Clearance Under Presser Foot | Foot 25/64” (10 mm) , Hand 15/64” (6 mm)

Stitch Length | 5 s.p.i. (5mm)

Work Space | 8 5/16" (211mm)

Needle | 135 x 5

Bed Size | 7" 15 11/16" (178mm x 398.5mm)

Needle Bar Stroke | 1 6/25" (31.5mm)

Stitch Width, Max | 11/32" (9mm)

DOWNLOADS:

Consew CN2093R-DD - Information Sheet

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase -Consew CN2093R-DD and Consew CN2053R-2A Comparison -Goldstartool.com
