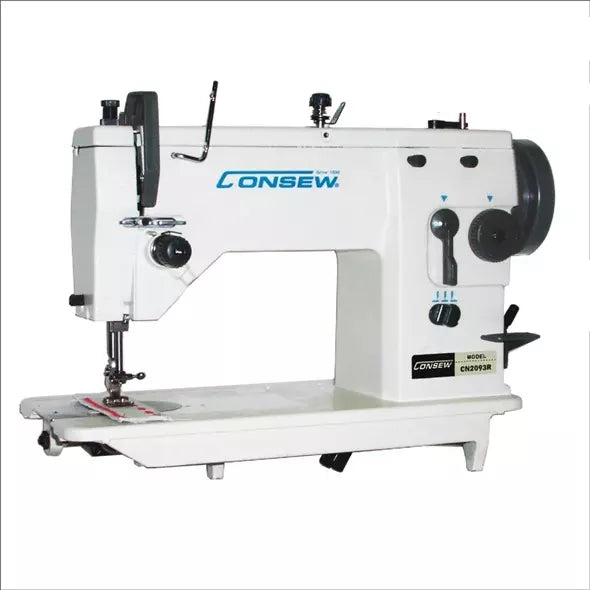

Consew CN2093R Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew CN2093R Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

CN2093R

Consew CN2093R Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

$1,299.95
$1,299.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Add T-Leg With Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew CN2093R Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

Automatic Lubrication, Horizontal axis rotary hook, Dial zig-zag regulator, Locking zig-zag width regulator, Straight stitches when zig-zag set to "0" using straight stitch locking device, Stitches per minute — up to 2000*, Reverse stitching with adjustable stitch length, Built-in bobbin winder, Metal gears (hardened steel), Built-in free-hand monogramming lever

MACHINE APPLICATIONS:

  • For sewing light to medium heavyweight fabrics including clothing, shoes and caps, leather articles, bags and more
  • For attaching lace, elastic band, bottom hemming, edge stitching, butted seaming, applique and similar operations
  • Federal stitch type 304

MACHINE FEATURES:

  • Automatic Lubrication
  • Horizontal axis rotary hook
  • Dial zig-zag regulator
  • Locking zig-zag width regulator
  • Straight stitches when zig-zag set to "0" using straight stitch locking device
  • Stitches per minute — up to 2000*
  • Reverse stitching with adjustable stitch length
  • Built-in Bobbin Winder
  • Metal gears (hardened steel)
  • Built-in free-hand monogramming lever

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Speed, Max (S.P.M.): 2000
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Stitch Length: 5 s.p.i. (5mm)
  • Clearance Under Presser Foot: Foot 25/64” (10 mm), Hand 15/64” (6 mm)
  • WorkSpace: 8 5/16" (211mm)
  • Needle: 135 x 5
  • Bed Size: 7" 15 11/16" (178mm x 398.5mm)
  • Stitch Type: 304/301
  • Needle Bar Stroke: 1 6/25" (31.5mm)
  • Stitch Width, Max: 11/32" (9mm)

Downloads

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
