Consew CN360W Programmable Rotary Sewing Machine – 360° Multi-Directional Pattern Seamer

Consew CN360W Programmable Rotary Sewing Machine – 360° Multi-Directional Pattern Seamer

Shipping calculated at checkout.
Delivery within 3-5 working days
View full details
  • Description

CONSEW CN360W

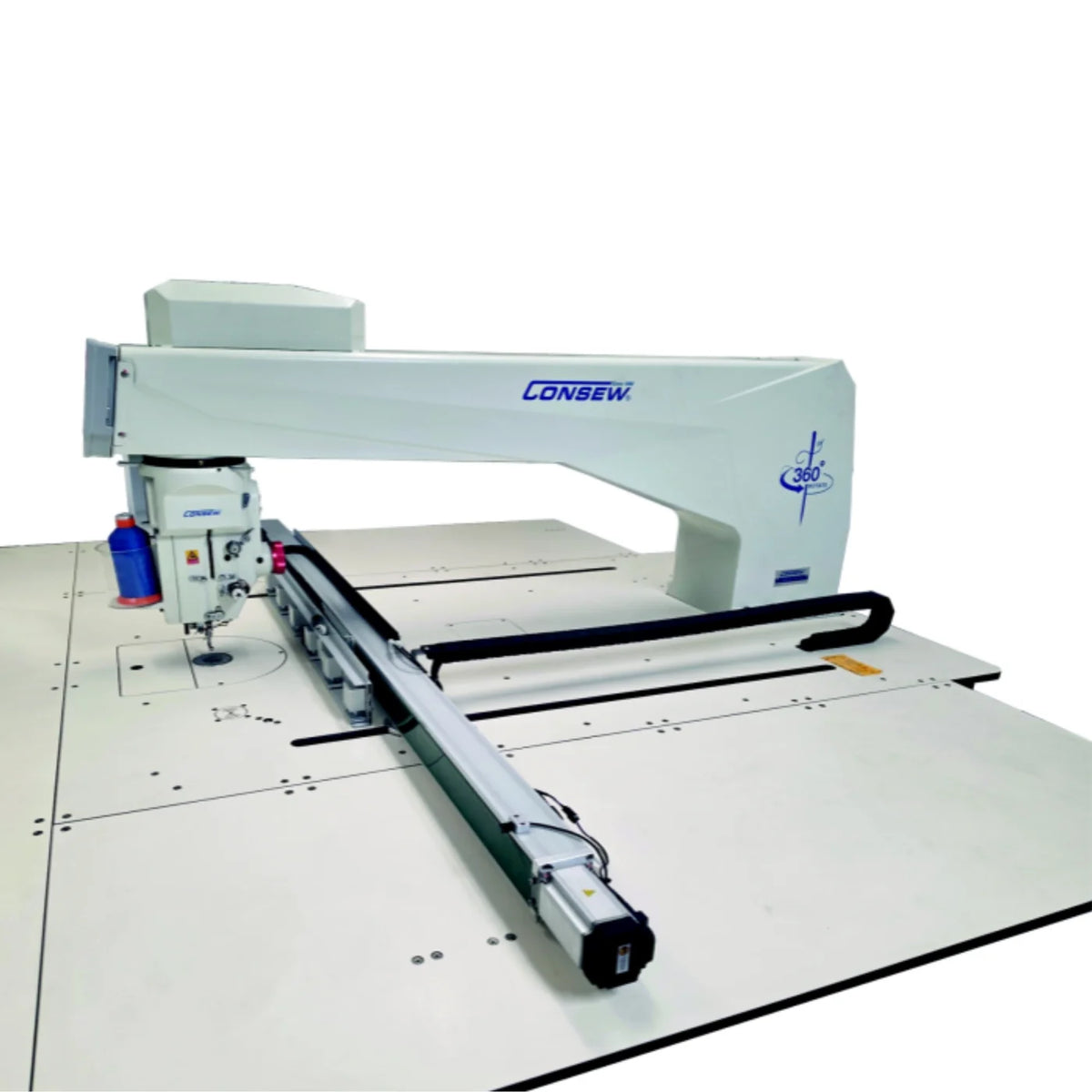

The Consew CN360W is a programmable rotary sewing machine designed for sewing continuous, multi-directional patterns on large workpieces. With 360° needle rotation, USB programming, and a sewing area up to 1300mm × 900mm, it is ideal for automated pattern sewing and large-format sewn products.

Product Description

The Consew CN360W Programmable Rotary Seamer is designed for production environments that require accurate, repeatable, multi-directional sewing patterns on large workpieces.

Its 360-degree needle sewing rotation allows the machine to continuously sew programmed patterns without manually repositioning the material. The CN360W provides a generous 1300mm × 900mm sewing range, making it suitable for large panels and other oversized sewn products.

The digital programming system can recognize up to 999 template files, while programs can be transferred through a computer USB data cable or USB flash drive. The machine includes one programmed pattern, with additional programming and specialized fabric clamps available separately.

A 750W direct-drive servo motor provides efficient machine operation, while the system requires 220V power and compressed air for operation.

Consew installation is required.

Key Features

  • 360° needle sewing rotation
  • Programmable multi-directional sewing
  • Up to 999 recognizable template files
  • USB data transfer via computer or USB flash drive
  • Sewing range up to 1300mm × 900mm

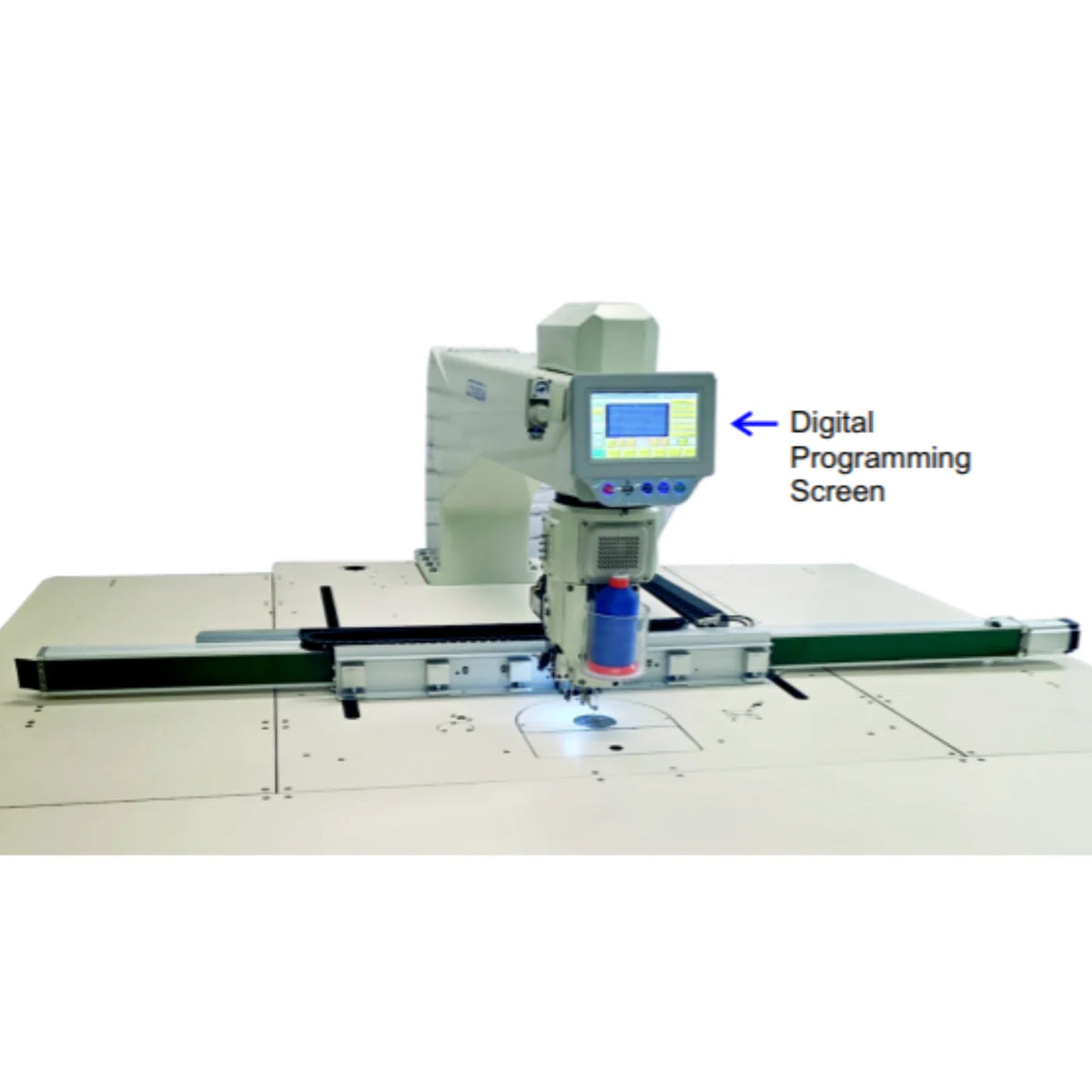

  • Digital programming screen
  • 750W direct-drive servo motor
  • Stitch length: 1–12mm
  • Maximum speed: up to 2,800 stitches/minute*
  • Includes 1 programmed pattern
  • Additional programming available separately
  • Optional fabric clamps available
  • Requires 220V power
  • Requires compressed air
  • Professional Consew installation required

Specifications

Specification Details
Model CN360W
Machine Type Programmable Rotary Seamer
Max. Speed 2,800 SPM*
Stitch Length 1–12mm
Needle DP×17, Sizes 12–23
Sewing Range X: 1300mm / Y: 900mm
Motor 750W Direct Drive Servo
Power 220V / 2250W
Air Requirement 0.4–0.6 MPa / approximately 60–87 PSI
Floor Space 2280 × 1950mm
Programming USB
Template Capacity Up to 999 files

*Speed depends on thread, material, and sewing operation. Specifications are based on Consew's current product information. Consew

Best For

  • Large-format sewing
  • Pattern sewing
  • Automotive components
  • Upholstery production
  • Industrial sewn products
  • Repetitive production patterns
  • Multi-directional sewing applications

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
