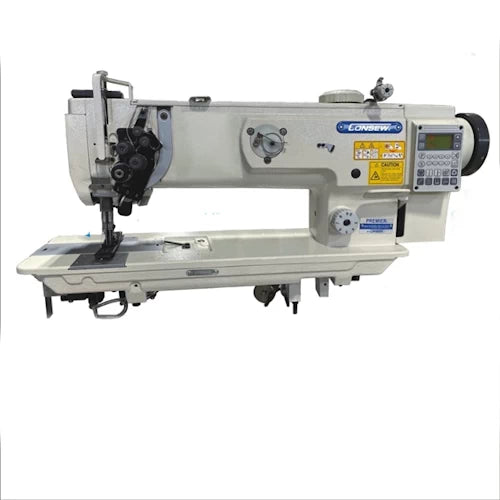

• Consew P1565RB-14-7DD/220 Two-Needle Split Needle Bar Lockstitch Industrial Sewing Machine With Table and Direct Drive Servo Motor
1 2

Consew P1565RB-14-7DD/220 Two-Needle Split Needle Bar Lockstitch Industrial Sewing Machine With Table and Direct Drive Servo Motor

Consew P1565RB-14-7DD/220 Two-Needle Split Needle Bar Lockstitch Industrial Sewing Machine With Table and Direct Drive Servo Motor

P1565RB-14-7DD/220

Consew P1565RB-14-7DD/220 Two-Needle Split Needle Bar Lockstitch Industrial Sewing Machine With Table and Direct Drive Servo Motor

$5,999.99
$5,999.99 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

Consew P1565RB-14-7DD/220

Two-Needle Split Needle Bar Lockstitch Industrial Sewing Machine With Table, Legs, Direct Drive Servo Motor, and LED Lamp

About Consew P1565RB-14-7DD/220

Two-Needle Split Needle Bar Lockstitch Industrial Sewing Machine With Table and Direct Drive Servo Motor

This fully automatic machine includes air cylinders for the foot lift, reverse feed, and trim functions.

  • Designed for automotive, marine, leather, canvas, and general upholstery.
  • For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics, and various laminated and coated materials
  • Designed for stitching such products as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travel ware accessories, sports, and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc

MACHINE FEATURES:

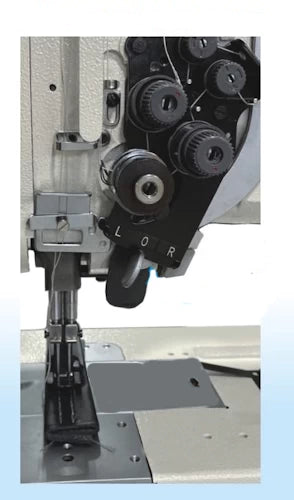

  • Two Needles with Split Needle Bar for Angular Stitching.
  • Large Top Load Bobbins
  • Built-in Bobbin Winder
  • Walking Foot
  • Climbing Device
  • Roll-In, tucks the top thread under fabric when it starts!
  • Automatic Foot Lift
  • Automatic Reverse
  • Semi-Automatic Lubrication
  • Automatic Thread Trim
  • Servo motor connected direct to top shaft

MACHINE SPECIFICATIONS:

  • Speed, maximum: 2000 - 2500 spm (* Speed depends on thread, material and operation.)
  • Clearance Under Foot: 9/16" (14mm)
  • Stitch Length: Max. 9mm Adjustment By Dial
  • Standard or Full Function: Computerized Function
  • Presser Foot Lift:
  • By Hand: 9 mm
  • By Knee: 16mm
  • Lubrication: Semi-Automatic
  • Bobbin: U or S
  • Needle: 135 x 17 (DPX17)
  • Needle Gauges: 1/4” to 1” (Custom gauges also available)
  • Power: 220 VAC

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

DIRECT-DRIVE SERVO MOTOR:

Direct-drive means no external motor is attached to the machine table. The servomotor motor is housed inside the machine and has no mechanisms, such as a V-belt, which transmits vibrations and noise.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
