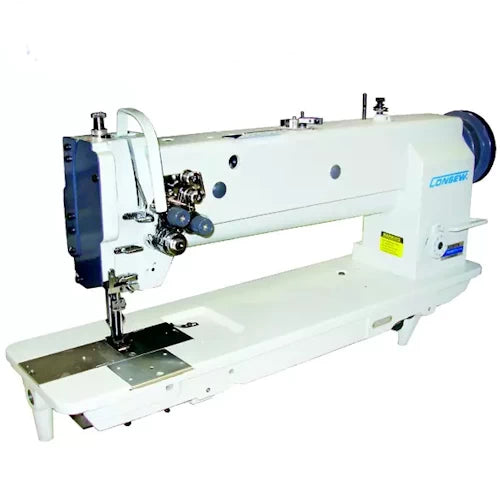

Consew P2339RBLH-18-1 18" Long Arm Two Needles Drop Feed Needle Feed Walking Foot Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew P2339RBLH-18-1 18" Long Arm Two Needles Drop Feed Needle Feed Walking Foot Lockstitch Industrial Sewing Machine With Table and Servo Motor

P2339RBLH-18-1

Consew P2339RBLH-18-1 18" Long Arm Two Needles Drop Feed Needle Feed Walking Foot Lockstitch Industrial Sewing Machine With Table and Servo Motor

$5,899.95
$5,899.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor

Consew P2339RBLH-18-1

18" Long Arm Two Needles Drop Feed Needle Feed Walking Foot Lockstitch Industrial Sewing Machine With Table, Legs, Servo Motor, and LED Lamp

About the Consew P2339RBL-18-1

Heavy Duty, High Speed, Two Needle, Lockstitch Industrial Sewing Machine, Drop Feed, Needle Feed, and Alternating (Walking) Presser Feet

With Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Hooks, and Bobbins, Reverse Feed, Safety Clutch.

MACHINE FEATURES:

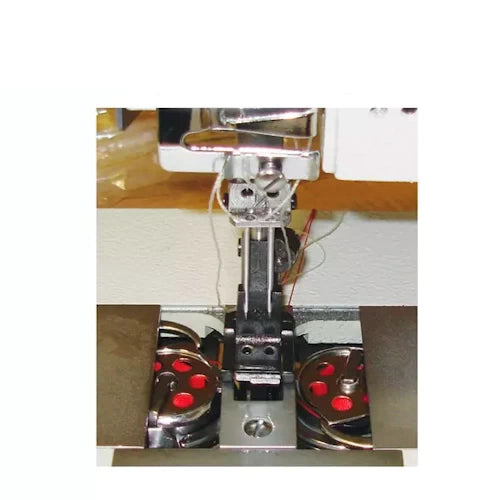

  • Sewing Machine: Designed to be used in multiple types of stitching applications, the portable stitching machine features a double-needle, long arm, and large vertical axis automatically oiled hooks.
  • Ergonomic Design: Equipped with large top-loaded bobbins, the electric sewing machine ensures uniform stitching. With a maximum speed of 2000 S.P.M., it comes with an oil pump system to adjust oil flow.
  • Easy To Use: This stitching apparatus can be used conveniently with a barrel-type locking stitch regulator. The locking slide plate ensures easy bobbin access. It comes with a barrel-type locking stitch regulator and safety clutch.
  • Applications: Featuring a walking foot mechanism, the sewing equipment can be used for sewing light to heavy-weight fabrics. With a pre-wound U or S bobbin, it is suitable for stitching trousers, shirts, and other garments.

MACHINE SPECIFICATIONS:

  • Speed, Max. (S.P.M.): 2000 *Speed depends on thread, material and operation.
  • Presser Foot Lift:
  • By Hand: 5/16" (8 mm)
  • By Knee: 33/64" (13 mm)
  • Needle Bar Stroke: 1-27/64" (36 mm)
  • Stitch Length, Max: 2.8 s.p.i. (9 mm)
  • Work Space: 18" x 4-1/4" (457 x 110 mm)
  • Working Height Under Arm: 4” (102 mm) maximum
  • Needles: 135 x 17 (x 2)
  • Pre-wound Bobbin: U or S
  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Walking Foot
  • Workspace: Long Arm
  • Standard or Full Function: Standard Function
  • Stitch Type: 301

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew P2339RBLH-18-1 Double Needle, Long Arm Sewing Machine
