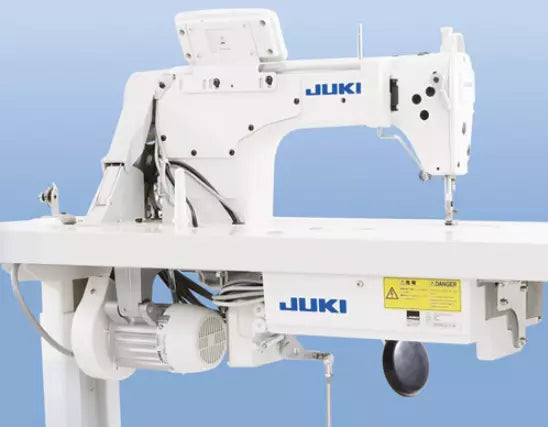

JUKI DDL-8700-7 Single Needle Drop Feed Automatic Industrial Sewing Machine With Table and Servo Motor

JUKI DDL-8700-7 Single Needle Drop Feed Automatic Industrial Sewing Machine With Table and Servo Motor

SKU:DDL-8700-7

JUKI DDL-8700-7 Single Needle Drop Feed Automatic Industrial Sewing Machine With Table and Servo Motor

Regular price $2,199.95
Sale price $2,199.95 Regular price Market price: $2,699.99 Save 18%
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Table Size
Quantity
Delivery within 3-5 working days
View full details
  • Description
  • Specifications
  • Manuals & warranty
  • More accessories

The JUKI DDL-8700-7

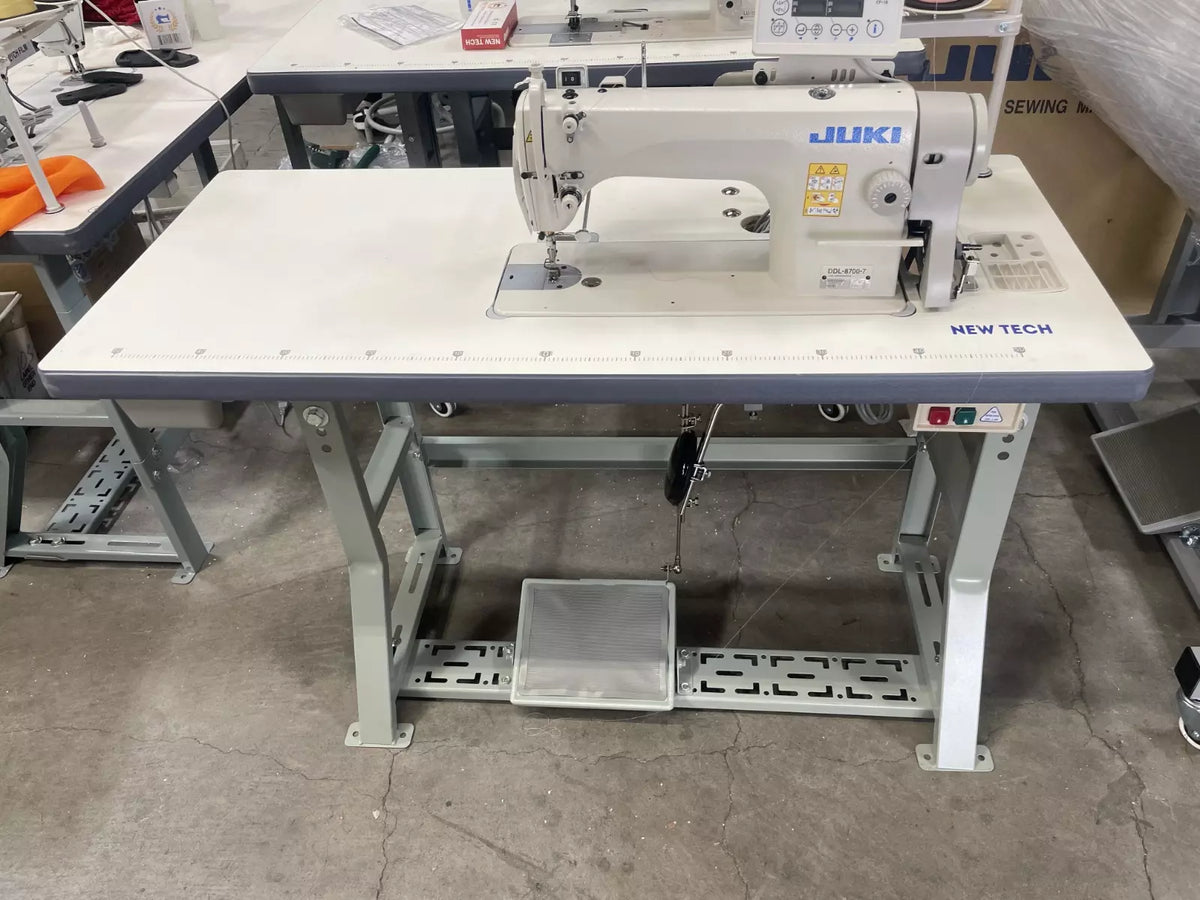

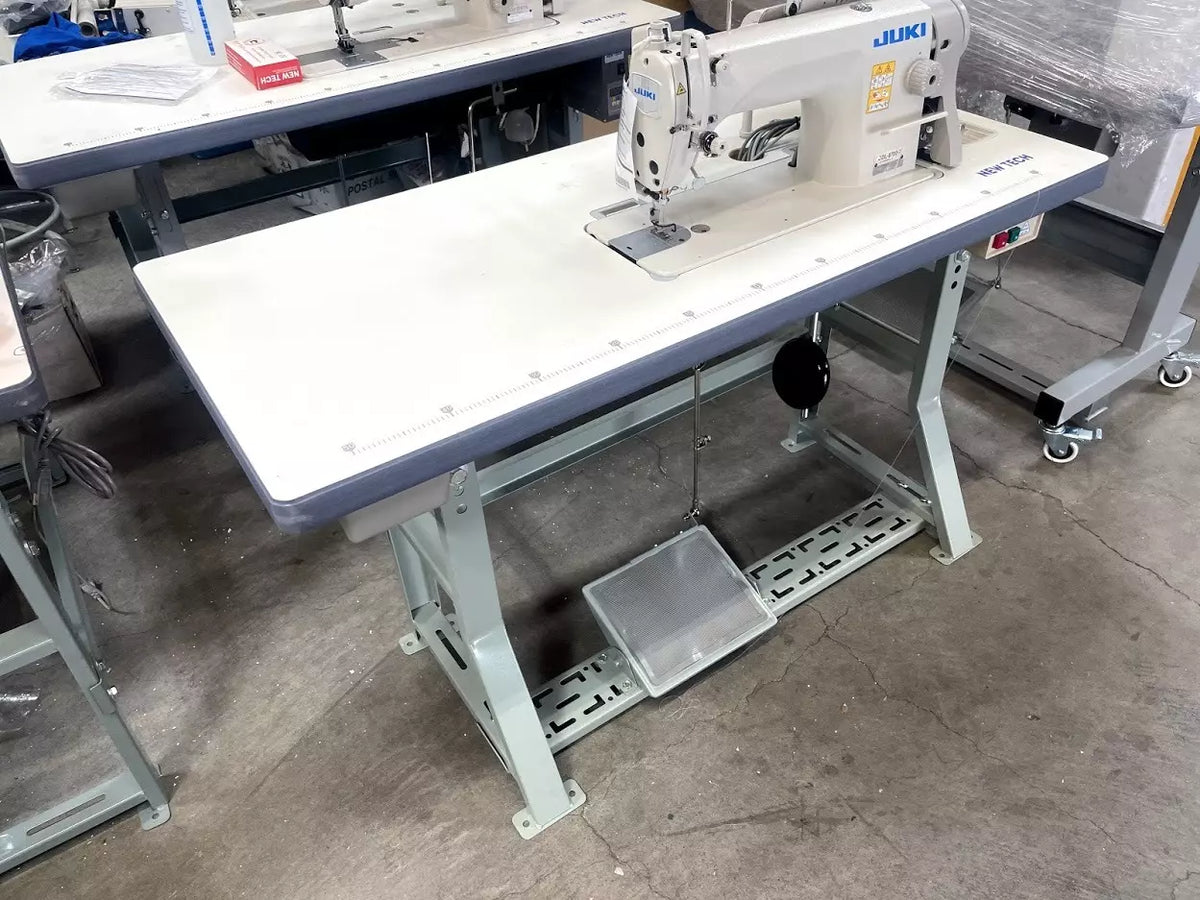

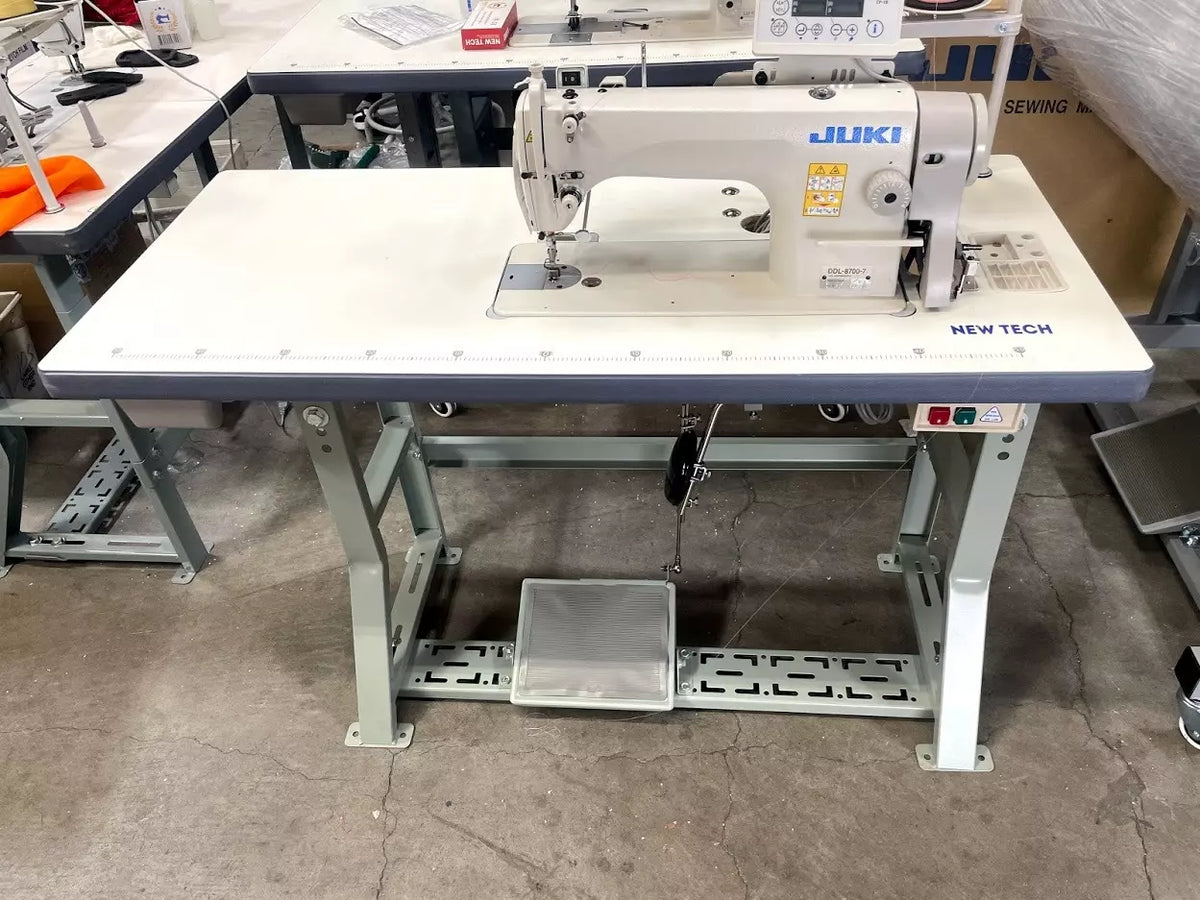

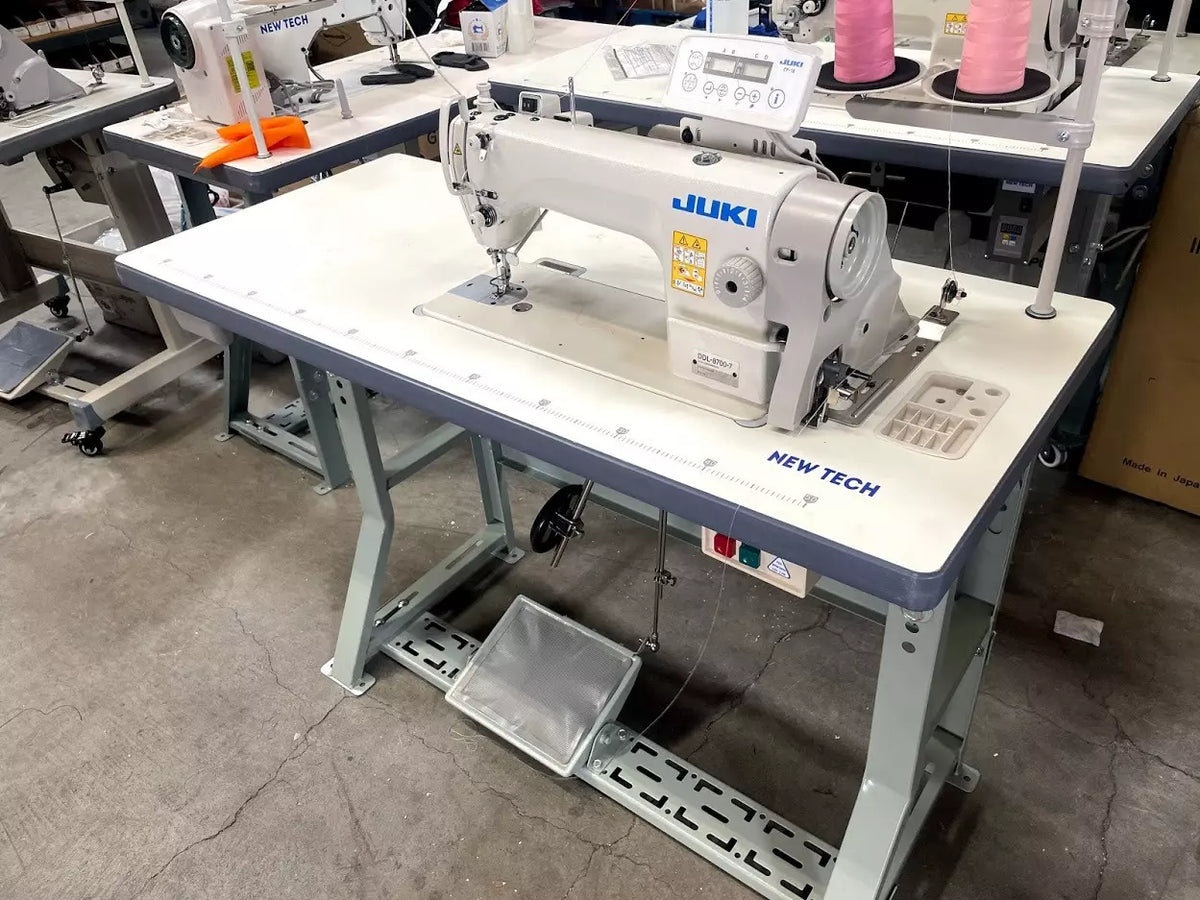

Single Needle Drop Feed Automatic Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.

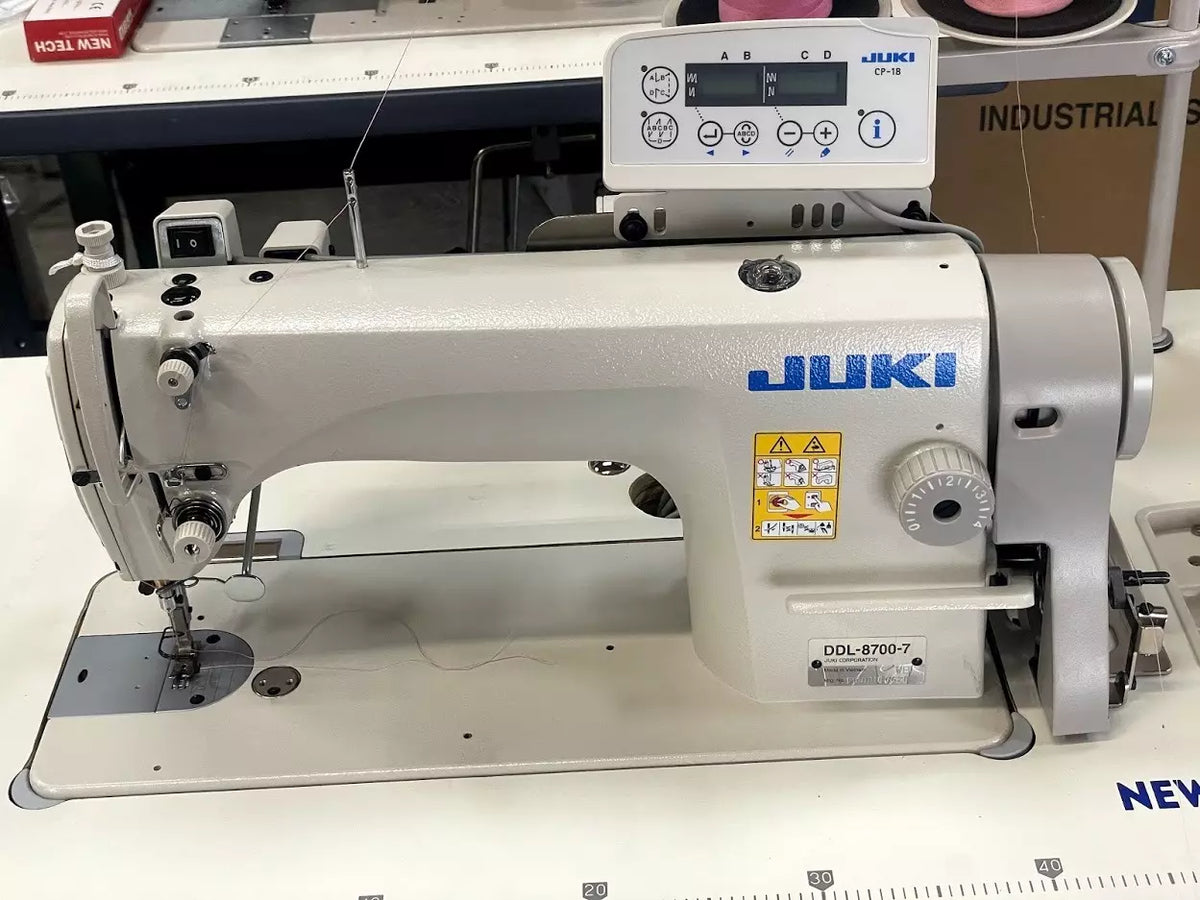

This machine comes with a JUKI CP-18 operation panel, with an option to upgrade to a JUKI CP-180 operation panel.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the DDL-8700-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

MACHINE SPECIFICATIONS:

  • Application: Medium-Weight
  • Max. Sewing Speed: 5000 Stitches per Minute
  • Max. Stitch Length: 4mm
  • Needle Bar Stroke: 30.7mm
  • Lift of Presser Foot by Hand: 5.5 mm
  • Lift of Presser Foot by Knee: 13 mm
  • Unit dimensions: (LxWxH): 48 inches by 20 inches by 48 inches
  • Needle: DB X 1, sizes 9-18 110V with Juki M92 servo motor, SC920 control box, and CP-18 panel
  • Feed Dog: 4-row
  • Hook: Automatic-lubricating full-rotary hook
  • Lubrication: Automatic
  • Lubricating Oil: JUKI MACHINE OIL 7 (equivalent to ISO VG7)
  • Automatic Reverse Feed Function: Provided as standard
  • Control Box:SC-920C: Compact-size servomotor M92 (450W)
  • Machine Motor: Single-phase 100~240V, 3-phase 200~240V
  • Power Requirement: Single-phase 100~240V, 3-phase 200~240V
  • Power Consumption: 320VA
  • Total Weight: Machine head: 30kg / 35kg (with AK), SC-920C: 3kg, M92: 3.5kg

<h3><strong><u>ACCESSORIES for the JUKI DDL-8700-7</u> </strong></h3>
<div class="row">
<div class="col-lg-6">
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/standard-industrial-sewing-machine-needles.htm" target="_blank">Standard Industrial Needles (Size #9-#18)</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/metal-bobbins-for-single-needle-industrial-industrial-sewing-machines-270010.htm" target="_blank">Metal Bobbins for Single Needle Industrial #270010</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-class-95-52237.htm" target="_blank">Bobbin Case Metal Class 95 — Singer #52237</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-for-most-single-needle-industrial-sewing-machines.htm" target="_blank">Needle Plate /Throat Plate<br></a><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-for-light-weight-industrial-sewing-machines-singer-149057.htm" target="_blank">Light-Weight</a>, <a href="https://www.goldstartool.com/feed-dog-for-medium-weight-industrial-sewing-machines-singer-149159.htm" target="_blank">Medium-Weight</a>, <a href="https://www.goldstartool.com/feed-dog-for-heavy-weight-industrial-sewing-machines-singer-149165.htm" target="_blank">Heavy-Weight</a><br><strong>Needle Plate/Feed Dog Combo:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-feed-dog-for-most-industrial-lockstitch-sewing-machines-combo.htm" target="_blank">Needle Plate/Feed Dog Combo<br></a></p>
<p><strong><em>ACCESSORY KITS</em><strong><u><br></u></strong></strong><a href="https://www.goldstartool.com/starter-kit-for-industrial-sewing-machines.htm" target="_blank">Starter Kit For Industrial Sewing Machines<br></a><a href="https://www.goldstartool.com/deluxe-spare-parts-kit-for-industrial-lockstitch-sewing-machines.htm" target="_blank">Deluxe Kit For Industrial Sewing Machines</a><strong><em></em></strong></p>
<p><strong><em>PRESSER FOOT KITS</em></strong><br><a href="https://www.goldstartool.com/5-pack-industrial-high-shank-presser-feet.htm" target="_blank">5 Pack Industrial High Shank Presser Feet</a><br><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank">Glide-On Industrial High Shank Presser Feet (5 Pack)</a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><br></p>
<p><em><strong>SEWING GUIDES & GAUGES</strong></em><a href="https://www.goldstartool.com/magnetic-sewing-machine-gauge.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/magnetic-sewing-machine-gauge.htm" target="_blank">Magnetic ​Sewing Machine Gauge Guide</a><br><a href="https://www.goldstartool.com/quilters-swing-sewing-guide-for-industrial-sewing-machines.htm" target="_blank">Quilters Swing Sewing Guide</a><br><a href="https://www.goldstartool.com/industrial-sewing-machine-swing-gauge-5812.htm" target="_blank">Swing Gauge #5812</a><a href="https://www.goldstartool.com/sewing-machinest-gauge-2-1-2.htm" target="_blank"><br>T Gauge (2-1/2")</a><a href="https://www.goldstartool.com/adjustable-seam-guide-sewing-adjustable-seam-guide-for-industrial-single-needle-sewing-machine.htm" target="_blank"><br>Adjustable Seam Guide</a><a href="https://www.goldstartool.com/sewing-machine-3-corner-gauge-25873.htm" target="_blank"><br>Sewing Machine 3 Corner Gauge #25873</a></p>
<p></p><br>
<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS</strong></h3>
<p><strong><em>ZIPPER/CORDING/WELTING/PIPING<br></em></strong><a href="https://www.goldstartool.com/invisible-zipper-presser-foot-s518.htm" target="_blank">Invisible Zipper Presser Foot #S518<br></a><a href="https://www.goldstartool.com/split-hinged-zipper-presser-foot-40322sh.htm" target="_blank">Split Hinged Zipper Presser Foot #40322SH<br></a><a href="https://www.goldstartool.com/narrow-right-hinged-cording-foot-for-industrial-lockstitch-sewing-machines-12435hn.htm" target="_blank">Narrow Right Hinged Cording Foot #12435HN<br></a><a href="https://www.goldstartool.com/narrow-left-hinged-cording-foot-for-industrial-lockstitch-sewing-machines-31358hn.htm" target="_blank">Narrow Left Hinged Cording Foot #31358HN<br></a><a href="https://www.goldstartool.com/wide-left-hinged-cording-zipper-foot-31358hwl-p36l.htm" target="_blank">Wide Left Hinged Cording/Zipper Foot #31358HWL-P36L<br></a><a href="https://www.goldstartool.com/wide-right-hinged-cordingzipper-foot-12435hwr-p36r.htm" target="_blank">Wide Right Hinged Cording/Zipper Foot #12435HWR-P36<br></a><a href="https://www.goldstartool.com/high-shank-double-welting-piping-foot-for-industrial-single-needle-sewing-machines-36069dg.htm" target="_blank">High Shank Double Welting/Piping Foot #36069DG<br></a><a href="https://www.goldstartool.com/metal-piping-foot-high-shank-right-or-left.htm" target="_blank">Metal Piping Foot (Right Or Left) #36069L, 36069R<br></a><a href="https://www.goldstartool.com/welting-piping-cording-presser-foot-767415000-767414009.htm" target="_blank">Welting/Piping/Cording Presser Foot #767415000</a></p>
<p><strong><em>COMPENSATING<br></em></strong><a href="https://www.goldstartool.com/left-compensating-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Left Compensating Presser Foot<br></a><a href="https://www.goldstartool.com/right-compensating-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Right Compensating Presser Foot<br></a><a href="https://www.goldstartool.com/compensating-binder-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Compensating Binder Presser Foot<br></a><a href="https://www.goldstartool.com/compensating-foot-211-14.htm" target="_blank">Compensating Foot 211-14</a></p>
<p><strong><em>SHIRRING/GATHERING<br></em></strong><a href="https://www.goldstartool.com/shirring-gathering-foot-for-industrial-lockstitch-sewing-machines.htm" target="_blank">Shirring/Gathering Foot #120828<br></a><a href="https://www.goldstartool.com/shirring-gathering-with-adjustable-blocks-for-industrial-lockstitch-sewing-machines-s950.htm" target="_blank">Shirring/Gathering With Adjustable Blocks #S950<br></a><a href="https://www.goldstartool.com/shirring-gathering-screw-adjusting-presser-foot-s952.htm" target="_blank">Shirring/Gathering Screw Adjusting Presser Foot #S952<br></a><a href="https://www.goldstartool.com/shirring-gathering-tape-guide-elastic-adjustable-presser-foot-for-industrial-sewing-machines-s537.htm" target="_blank">Shirring/Gathering Tape Guide Elastic Adjustable Presser Foot #S537</a></p>
<p><strong><em>GUIDE FOOT</em></strong><br><a href="https://www.goldstartool.com/industrial-sewing-machine-hinged-right-guide-foot.htm" target="_blank">Hinged Right Guide Foot</a></p>
</div>
<div class="col-lg-6">


<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS (continued)</strong></h3>
<p><strong><em>HEMMER</em></strong><br><a href="https://www.goldstartool.com/shirring-gathering-with-adjustable-blocks-for-industrial-lockstitch-sewing-machines-s950.htm" target="_blank">Ball Hemmer Foot (Double Fold) #490358 <br></a><a href="https://www.goldstartool.com/spring-hemmer-feet-high-shank.htm" target="_blank">Spring Hemmer Foot #490359<br></a><a href="https://www.goldstartool.com/hemming-presser-foot-and-folder-set-f502.htm" target="_blank">Hemming Presser Foot and Folder Set #F502</a></p>
<p><strong><em>CENTER TUBE</em></strong><br><a href="https://www.goldstartool.com/hinged-center-tube-presser-foot-for-industrial-sewing-machine.htm" target="_blank">Hinged Center Tube Presser Foot #S10C</a></p>
<p><strong><em>ROLLER<br></em></strong><a href="https://www.goldstartool.com/small-roller-foot-with-needle-plate-feed-dogs-singer.htm" target="_blank">Small Roller Foot With Needle Plate & Feed Dogs<br></a><a href="https://www.goldstartool.com/large-roller-foot-with-needle-plate-feed-dogs-singer.htm" target="_blank">Large Roller Foot With Needle Plate & Feed Dogs<br></a><a href="https://www.goldstartool.com/spk-high-shank-roller-foot-spk3.htm" target="_blank">SPK Roller Foot #SPK3</a></p>
<p><strong><em>BIAS<br></em></strong><a href="https://www.goldstartool.com/bias-tape-binding-presser-foot-6288.htm" target="_blank">Bias Tape Binding Presser Foot #6288</a></p>
<p><strong><em>STRAIGHT STITCH<br></em></strong><a href="https://www.goldstartool.com/hinged-straight-stitch-presser-foot-p351.htm" target="_blank">Hinged Straight Stitch Presser Foot #P351<br></a><a href="https://www.goldstartool.com/hinged-straight-stitching-foot-24983.htm" target="_blank">Hinged Straight Stitching Foot #24983<br></a><a href="https://www.goldstartool.com/hinged-narrow-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Hinged Narrow Presser Foot #142058N<br></a><a href="https://www.goldstartool.com/heavyweight-straight-stitch-presser-foot-brother-sa173.htm" target="_blank">Heavyweight Straight Stitch Presser Foot - Brother #SA173<br></a><a href="https://www.goldstartool.com/straight-stitch-presser-foot-with-finger-guard-351.htm" target="_blank">Straight Stitch Presser Foot With Finger Guard #351</a></p>
<p><strong><em>GLIDE-ON/TEFLON<br></em></strong><a href="https://www.goldstartool.com/glide-on-invisible-zipper-presser-foot-s518nst.htm" target="_blank">Glide-On Invisible Zipper Presser Foot #S518NST<br></a><a href="https://www.goldstartool.com/glide-on-standard-extended-tail-hinged-presser-foot-mt-18.htm" target="_blank">Glide-On Standard Extended Tail Hinged Presser Foot #MT-18<br></a><a href="https://www.goldstartool.com/glide-on-welting-piping-cording-presser-foot-36069t.htm" target="_blank">Glide-On Welting/Piping/Cording Presser Foot #36069T<br></a><a href="https://www.goldstartool.com/non-stickteflon-foot-high-shank.htm" target="_blank">Non-Stick Glide-On Presser Foot #T-350<br></a><a href="https://www.goldstartool.com/universal-glide-on-narrow-zipper-presser-foot-t363.htm" target="_blank">Universal Glide-On Hinged Narrow Zipper Presser Foot #T-363<br></a><a href="https://www.goldstartool.com/universial-glide-on-left-narrow-zipper-presser-foot-t36ln.htm" target="_blank">Universal Glide-On Left Narrow Zipper Presser Foot #T36LN<br></a><a href="https://www.goldstartool.com/universal-glide-on-right-narrow-zipper-presser-foot-t36n.htm" target="_blank">Universal Glide-On Right Narrow Zipper Presser Foot #T36N</a></p>
<p><strong><em></em></strong><strong><em>FOR QUILTING<br></em></strong><a href="https://www.goldstartool.com/quilters-swing-sewing-guide-for-industrial-sewing-machines.htm" target="_blank">Quilters Swing Sewing Guide For Industrial Sewing Machines<br></a><a href="https://www.goldstartool.com/1-4-inch-high-shank-clear-ruler-foot-for-free-motion-quilting.htm" target="_blank">1/4" High Shank Clear Ruler Foot For Free Motion Quilting</a><a href="https://www.goldstartool.com/1-4-high-shank-ruler-foot-for-free-motion-frame-quilting-sewing.htm" target="_blank"><br>1/4" High Shank Metal Ruler Foot For Free Motion Quilting</a><br><a href="https://www.goldstartool.com/metal-quilting-glide-foot-and-needle-plate-gs1kit.htm" target="_blank">Metal Quilting Glide Foot and Needle Plate​ #GS1Kit</a><br><br><br></p>
<h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank"><br></a></em><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank">Raw Edge Binder Set #S64​</a><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><a href="https://www.goldstartool.com/right-angle-binder-set-s60.htm" target="_blank"><br>Right Angle Binder Set #S60</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p></div></div>

ACCESSORIES for the JUKI DDL-8700-7

Needles: Standard Industrial Needles (Size #9-#18)

Bobbins: Metal Bobbins for Single Needle Industrial #270010

Bobbin Case: Bobbin Case Metal Class 95 — Singer #52237

Needle Plate: Needle Plate /Throat Plate

Feed Dog: Light-Weight, Medium-Weight, Heavy-Weight

Needle Plate/Feed Dog Combo: Needle Plate/Feed Dog Combo

ACCESSORY KITS

Starter Kit For Industrial Sewing Machines

Deluxe Kit For Industrial Sewing Machines

PRESSER FOOT KITS

5 Pack Industrial High Shank Presser Feet

Glide-On Industrial High Shank Presser Feet (5 Pack)

SEWING GUIDES & GAUGES

Magnetic Sewing Machine Gauge Guide

Quilters Swing Sewing Guide

Swing Gauge #5812

T Gauge (2-1/2")

Adjustable Seam Guide

Sewing Machine 3 Corner Gauge #25873

COMPATIBLE PRESSER FOOT OPTIONS

ZIPPER/CORDING/WELTING/PIPING

Invisible Zipper Presser Foot #S518

Split Hinged Zipper Presser Foot #40322SH

Narrow Right Hinged Cording Foot #12435HN

Narrow Left Hinged Cording Foot #31358HN

Wide Left Hinged Cording/Zipper Foot #31358HWL-P36L

Wide Right Hinged Cording/Zipper Foot #12435HWR-P36

High Shank Double Welting/Piping Foot #36069DG

Metal Piping Foot (Right Or Left) #36069L, 36069R

Welting/Piping/Cording Presser Foot #767415000

COMPENSATING

Left Compensating Presser Foot

Right Compensating Presser Foot

Compensating Binder Presser Foot

Compensating Foot 211-14

SHIRRING/GATHERING

Shirring/Gathering Foot #120828

Shirring/Gathering With Adjustable Blocks #S950

Shirring/Gathering Screw Adjusting Presser Foot #S952

Shirring/Gathering Tape Guide Elastic Adjustable Presser Foot #S537

GUIDE FOOT

Hinged Right Guide Foot

COMPATIBLE PRESSER FOOT OPTIONS (continued)

HEMMER

Ball Hemmer Foot (Double Fold) #490358

Spring Hemmer Foot #490359

Hemming Presser Foot and Folder Set #F502

CENTER TUBE

Hinged Center Tube Presser Foot #S10C

ROLLER

Small Roller Foot With Needle Plate & Feed Dogs

Large Roller Foot With Needle Plate & Feed Dogs

SPK Roller Foot #SPK3

BIAS

Bias Tape Binding Presser Foot #6288

STRAIGHT STITCH

Hinged Straight Stitch Presser Foot #P351

Hinged Straight Stitching Foot #24983

Hinged Narrow Presser Foot #142058N

Heavyweight Straight Stitch Presser Foot - Brother #SA173

Straight Stitch Presser Foot With Finger Guard #351

GLIDE-ON/TEFLON

Glide-On Invisible Zipper Presser Foot #S518NST

Glide-On Standard Extended Tail Hinged Presser Foot #MT-18

Glide-On Welting/Piping/Cording Presser Foot #36069T

Non-Stick Glide-On Presser Foot #T-350

Universal Glide-On Hinged Narrow Zipper Presser Foot #T-363

Universal Glide-On Left Narrow Zipper Presser Foot #T36LN

Universal Glide-On Right Narrow Zipper Presser Foot #T36N

FOR QUILTING

Quilters Swing Sewing Guide For Industrial Sewing Machines

1/4" High Shank Clear Ruler Foot For Free Motion Quilting

1/4" High Shank Metal Ruler Foot For Free Motion Quilting

Metal Quilting Glide Foot and Needle Plate #GS1Kit

OTHER ATTACHMENTS

BINDERS/FOLDERS

Raw Edge Binder Set #S64

Raw Edge Plain Tape Binder Binding Attachment #100LS

Right Angle Binder Set #S60

Double Fold Binder / Binding Attachment Folder #508L

Top Mount Collarette Binder Top Clean

Table Mount Coverstitch Collarette Binder #S124A

HEMMER

Single Fold Up Turn Hemmer #S75U

BUTTONHOLER

Buttonholer Attachment #YS-4455

RUFFLER

Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
