JUKI DLN-9010A-SS High-Speed Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI DLN-9010A-SS

High-Speed Needle Feed Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

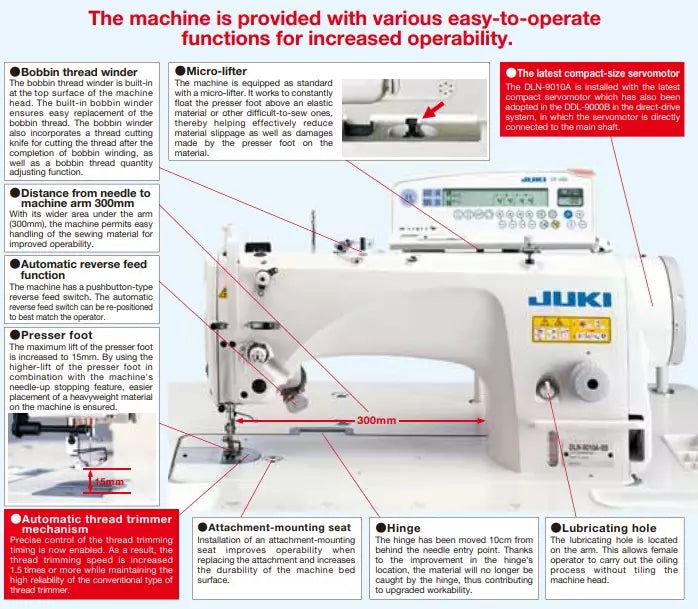

The JUKI DLN-9010A-SS is a needle-feed type DDL-9000 Series sewing machine which is JUKI's top-of-the-line lockstitch machine series with a thread trimmer.

It has inherited the exceptional features of the DDL-9000 Series, such as the direct-drive system, semi-long arm and elimination of the oil pan. Also, it comes with a highly reliable needle feed mechanism.

Thanks to its most advanced compact AC Servo motor, as well as employing the new model control box SC-920A, the DLN-9010A achieves a substantial labor-saving equivalent to that of the DDL-9000B.

The thread trimming speed is increased 1.5 times or more as compared with the conventional model, as the thread trimming timing can now be precisely controlled.

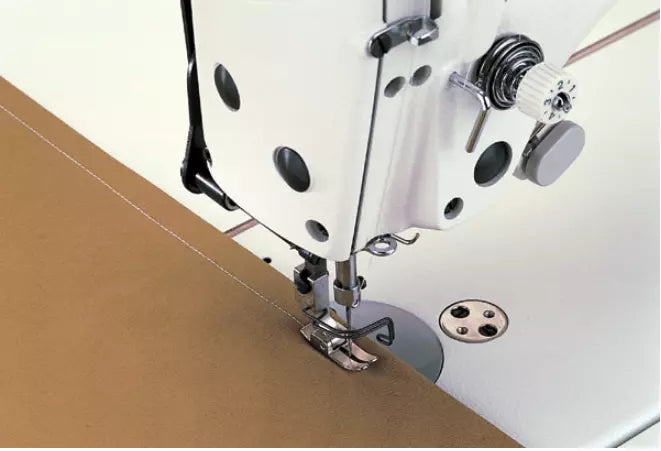

The needle feed mechanism offers exceptional efficiency of feed and effectively preventing uneven material feed, on a wide range of applications such as the sewing of outerwear, run stitching of men's shirts, etc. and the attaching of various parts to garment bodies.

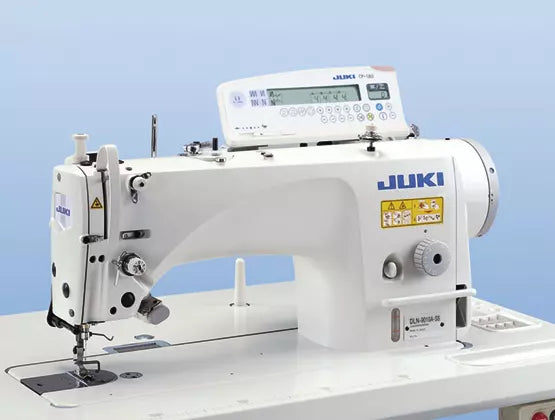

This machine comes with a JUKI CP-18 operation panel, with an option to upgrade to a JUKI CP-180 operation panel. (**product photo shows a CP-180 operation panel)

MACHINE SPECIFICATIONS:

  • Application: For light to medium-weight materials
  • Max sewing speed: 5,000sti/min
  • Max stitch length: 4.5mm 1
  • Lift of the presser foot by hand: 5.5mm
  • Lift of the presser foot by knee: 15mm (max)
  • Lift of the presser foot by auto: 10mm
  • Needle (at time of delivery): DB×1 (#21) #20～#23, For JE:134(Nm130) Nm120～Nm160
  • Hook: Automatic-lubricating full-rotary hook
  • Lubrication: Minute-quantity lubrication to needle bar and hook
  • Lubricating Oil: JUKI New Defrix Oil NO.1 (equivalent to ISO VG7)
  • Distance from Needle to Machine Arm: 300mm
  • Size of Bed: 517mm×178mm
  • Total Weight: 83.5kg
  • Bobbin Thread Winder: Built-in the machine head
  • Machine Head Drive: Compact AC servomotor that is directly connected to the main shaft (direct-drive system)

1 The maximum sewing speed is 5,000 stitches per minute or less in cases where the maximum stitch length is 3.5mm or more.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
