JUKI LG-158 Series Long-arm Unison-feed Lockstitch Machine With Vertical-axis Large Hook With Table and Servo Motor

JUKI LG-158 Series Long-arm Unison-feed Lockstitch Machine With Vertical-axis Large Hook With Table and Servo Motor

LG-158 Series

JUKI LG-158 Series Long-arm, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook With Table and Servo Motor

$16,499.95
$16,499.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Model
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

JUKI LG-158 Series

Long-arm, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook With Table, Legs, Servo Motor, and LED Lamp

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the DDL-8700. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.

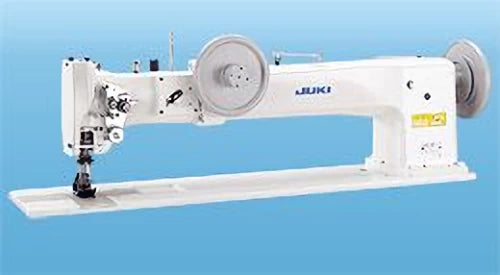

About the JUKI LG-158 Series

With its 750 mm wide space under the arm and a handwheel mounted at the

middle of the arm, the machine is ideal for sewing heavy

materials such as tents and sheets. A large material can be sewn while

spread over the bed.

The bobbin winder is installed at the front face of the arm for easy

operation.

The presser foot goes up as high as 21.5 mm to ensure easy

placement/removal of extra heavy-weight materials.

Ideal for the sewing of heavy materials such as tents and sheets.

MACHINE FEATURES:

  • The machine head structure is designed to improve the operability
  • Safety device protects the needle and hook from damage
  • Consistent seam quality
  • The frequency of bobbin thread replacement is reduced

MACHINE SPECIFICATIONS:

  • Max. Sewing Speed: 1500 sti/min
  • Max. Stitch Length: 10mm (forward/reverse feed)
  • Needle Bar Stroke: 46.9mm
  • Needle Gauge:
  • LG-158: Standard 19.1mm (3/4")
  • LG-158-1: -----
  • Lift of Presser Foot:
  • By Pedal: 21.5mm
  • Thread Take-up: Side Type
  • Alternating Vertical Movement: 6~19mm
  • Hook: Vertical-axis large hook
  • Needle at Time of Delivery: DD×1 (#25)
  • Thread: #20～#5, B69～B138, Nm=40/3～20/3
  • Safety Mechanism: Provided as standard
  • Bobbin Winder: Built on the machine arm
  • Lubrication: By an oiler
  • Lubricating Oil: JUKI New Oil No.1 (equivalent to ISO VG7)
  • Distance from needle to machine arm: 750mm
  • Bed Size: 1,088mm×230mm
  • Weight of the machine head: 108kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI LG-158 Long-Arm Lockstitch Sewing Machine
