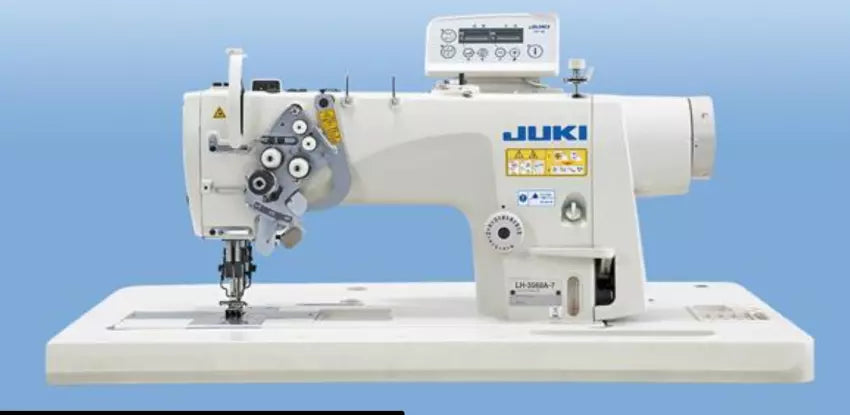

JUKI LH-3588-7 Semi-dry-head, 2-needle Organized Split Needle Bar Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI LH-3588-7

Semi-dry-head, 2-needle Organized Split Needle Bar Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

Stitch Heavy to Extra-Heavy Fabrics Conveniently

Juki Lockstitch Machine is prudently designed with a vertical axis large hooks that make it usable for multiple sewing applications. It includes a double-needle, split bar, and a tank system for lubrication. It can be used to use easily stitch on a variety of materials from knits to cotton. The length of the stitch in this stitching equipment can be adjusted according to the requirement. It is useful to sew jeans, shirts, jackets, and other workwear. Made for heavy to extra-heavy fabrics, it can be used in industrial applications.

MACHINE FEATURES:

  • Sewing Machine: Designed to be used for a range of sewing applications, this portable stitching machine features double-needle, split bar, and large hooks for convenient and comfortable operation.
  • Ergonomic Design: Equipped with a tank system, this sewing appliance provides minute quality lubrication on the hook. It can be easily upgraded to the Juki LH-3588A-7 class, providing multiple features.
  • Easy To Use: With a smart and ergonomic design, this stitching apparatus can be used easily on a variety of materials from knits to cotton. It can operate at a maximum speed of 3,000 SPM. The length of the stitch can be adjusted.
  • Applications: Featuring a built-in thread winder, this sewing equipment can be used for sewing heavy to extra-heavy fabrics. It can be used to sew jeans, jackets, shirts, and workwear.
  • Product Specifications: Juki Lockstitch Machine features 5mm maximum stitch length, 13mm (by knee), and 7mm (by hand) presser foot lift, #16, and #23 needles size. It includes vertical axis large hooks.

MACHINE SPECIFICATIONS:

  • Application: G: Jeans and heavy-weight
  • Max. sewing speed: 3,000sti/min
  • Max. stitch length: 5mm
  • Lift of the Presser Foot: 7mm (by hand), 13mm (by knee)
  • Needle Bar Stroke: 33.4mm
  • Needle: G: DP×5 (#21) #16～#23
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Hook: Vertical axis 1.8 times large hook
  • Feed System: Needle-feed

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
