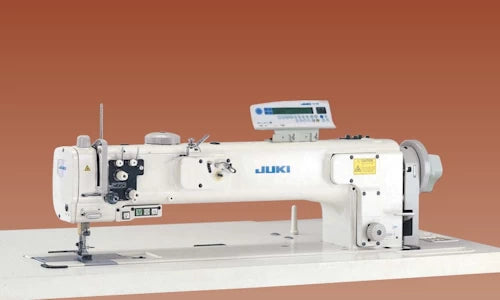

JUKI LU-2200N-7 Series Long-arm Unison-feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI LU-2200N-7 Series Long-arm Unison-feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

LU-2200N-7 Series

JUKI LU-2200N-7 Series Long-arm Unison-feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

$17,999.95
$17,999.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Model
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor

JUKI LU-2200N-7 Series

Long-arm Unison-feed Lockstitch Industrial Sewing Machine With Table, Legs, Servo Motor, and LED Lamp

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the DDL-8700. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.



About the 2216N-7 Single Needle, 2266N-7 Double Needle

Long-arm, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook and Automatic Thread Trimmer

The long-arm unison-feed lockstitch machine with vertical-axis large hook with an automatic thread trimmer is best suited to processes that require a longer distance from the machine arm to the needle, such as reinforcement stitching and topstitching in tape attachment processes for sewing furniture or car seats.

MACHINE FEATURES:

  • Longer distance from machine arm to needle
  • Higher productivity
  • The machine adopts a fully automatic lubricating method
  • The presser foot lift is as high as 16mm
  • The vertical stroke of the walking foot and presser foot can be easily set and changed
  • The standard machine lets the operator adjust the vertical stroke of the walking foot and presser foot (DL device)
  • Thread trimming without fail

MACHINE SPECIFICATIONS:

  • Max. Sewing Speed: 3,000sti/min
  • Max. Stitch Length:
  • LU-2216N-7: 9mm (normal/reverse feed)
  • LU-2266N-7: 6mm (normal/reverse feed)
  • Needle Bar Stroke: 36mm
  • Needle Gauge:
  • LU-2266N-7: 10mm (standard)
  • Lift of the presser foot:
  • By hand: 9mm
  • Auto: 16mm
  • Auto Lifter: Provide as standard (pneumatic auto-lifter: AK142)
  • Thread take-up: Link type
  • Alternating vertical movement: 1～6.5mm
  • DL Device: Provide as standard
  • Hook: Vertical axis 1.6 fold-capacity hook
  • Needle at time of delivery:
  • LU-2216N-7: 134×35 (Nm140) Nm100～Nm180
  • LU-2266N-7: 134×35 (Nm140) Nm100～Nm160
  • Thread:
  • LU-2216N-7: #30～#4, B46～B138, Nm=60/3～20/3
  • LU-2266N-7: #20～#5, B69～B138, Nm=40/3～20/3
  • Safety Mechanism: Provided as standard
  • Lubrication: Automatic
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Distance from needle to machine arm: 650mm
  • Bed Size: 917mm×178mm
  • Weight of machine head:
  • LU-2216N-7: 90kg
  • LU-2266N-7: 95kg
  • Automatic Reverse Feed Function: Provided as standard
  • Compressed Air/ Air Consumption: 0.5MPa (5kgf/cm2), 0.3N /min.
  • Power Requirement: Single-phase 110～120V, 220～240V, 3-phase 200～220V, 220～240V

DOWNLOADS:

LU-2216n7 Catalog

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
