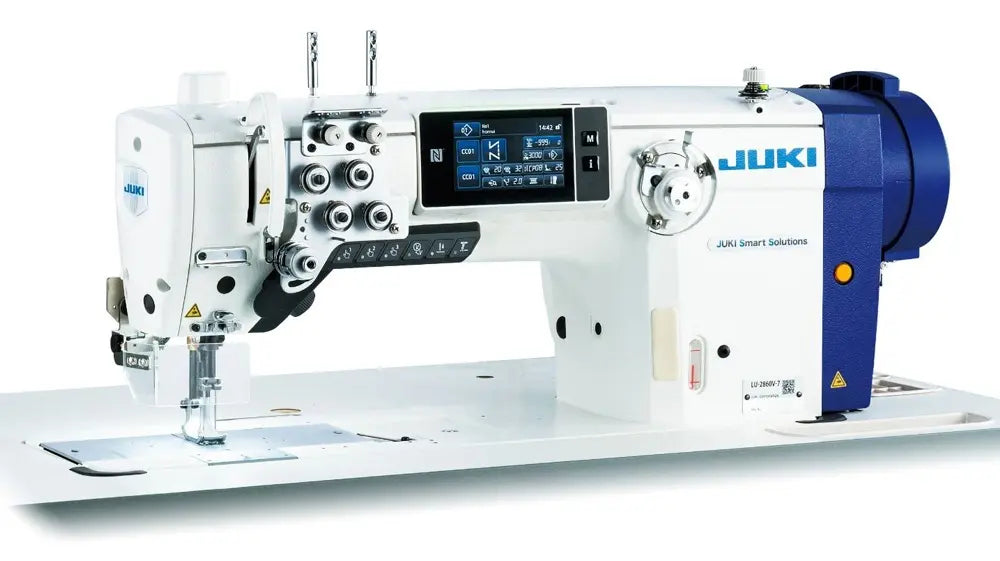

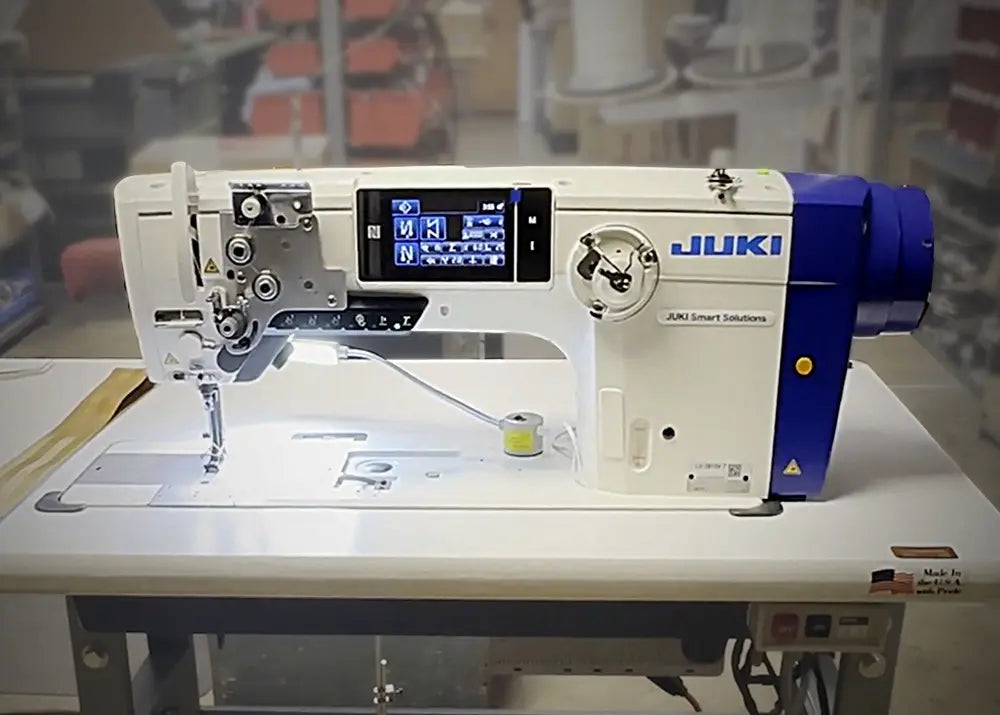

JUKI LU-2810V-7 walking foot machine with an electric under-trimer

JUKI LU-2810V-7 walking foot machine with an electric under-trimer

LU-2810V-7

The Juki LU 2810V-7 comes fully assembled with table, head, and motor.

The only walking foot machine with an electric under-trimer made by Juki.

$8,999.95
$8,999.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose JUKI Control Panel
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the LU-2810A-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

JUKI LU-2810V-7

2 Needle Semi-Dry Unison Feed Lockstitch Sewing System with automatic thread trimmer with Vertical axis 2.0 fold-capacity hook / 12mm - pitch type

The Juki LU-2810V-7 Series sets a new standard in industrial sewing with its advanced functionality and user-friendly design. Featuring a high and long arm, this machine offers an extended working area, improving workability and accommodating larger projects with ease. It is specially engineered for precision and durability, ensuring superior results every time.

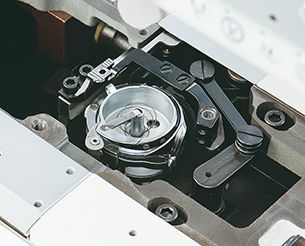

At the core of its capabilities, the LU-2810 Series employs a unison-feed system, combining compound feed and walking foot mechanisms for consistent fabric handling. This ensures smooth operation and prevents material slippage, even on challenging fabrics. The inclusion of a vertical-axis large hook further enhances performance, allowing for fewer bobbin changes and uninterrupted workflows.

This model excels in tackling medium to heavy materials, making it ideal for:

  • Upholstery, including indoor and outdoor furniture.
  • Automotive interiors and marine applications.
  • Leather goods such as bags, belts, wallets, and leashes.
  • Sturdy canvas projects.

The LU-2810V-7 Series also incorporates an intuitive control panel (if equipped), allowing operators to easily adjust settings for optimal performance. Whether selecting stitch length, speed, or other parameters, the control panel ensures precision and efficiency for a wide range of sewing tasks.

Built for professionals, this machine delivers unmatched reliability and versatility, empowering artisans and manufacturers alike to create exceptional products.

  • Included Accessories: Machine head, JUKI table top, heavy-duty stand, manuals, needles, bobbins, oil, and tools.
  • Automatic Reverse Feed Function: Built-in as a standard feature for ease of operation.
  • Lubrication Oil: Uses JUKI New Defrix Oil No.2 (ISO VG32 equivalent).
  • Manufacturer’s Warranty: Comes with a 12-month guarantee.
  • Maximum Stitch Length: Adjustable up to 9mm (forward and backward).
  • Motor Output: 550W for consistent and reliable performance.
  • Needle System: Compatible with 135x17 DPx17 needles for various applications.
  • Power Requirements: Operates on single-phase 120V power, making it suitable for use at home.
  • Presser Lift Height: Maximum lift height of 20mm for handling thick materials.
  • Table Dimensions: L42 inches x W22 inches, with height adjustable from 27.5 inches to 33.9 inches.
  • Thread Compatibility: Supports thread sizes from 60/3 to 20/3 (#30 to #5).
  • Sewing Type: Single-needle, unison-feed, lockstitch system with shorter thread remaining.
  • Weight: The machine head weighs approximately 150 pounds.
  • Bobbin Winder: Included as a standard feature for convenience.
  • Maximum Sewing Speed: Capable of sewing at up to 3,000 stitches per minute.

This machine is designed for heavy-duty performance while being adaptable to a variety of professional and hobbyist sewing needs.

MACHINE SPECIFICATIONS

An extended and elevated arm design has been implemented. The increased distance between the machine arm and the needle enhances operational flexibility. The LU-2800 Series represents a synchronized-feed, compound-feed, walking foot machine, featuring a vertical-axis large hook that significantly improves its functionalities and performance capabilities.

  • All electric functionality
  • Automatic Backtack & Undertrimmer
  • Automatic Footlift
  • Very Fast/Slow Sewing Speeds
  • High Footlift
  • Great for Leather Sewing
  • Comes Fully Assembled
  • Powerful Motor
  • Programable Touchscreen Interface

DOWNLOADS:

No downloads available yet for this machine.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
