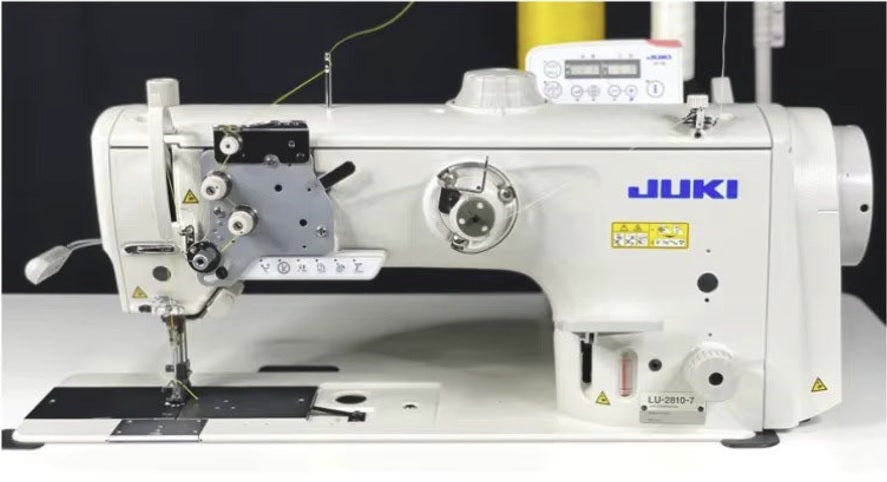

JUKI LU-2810X-7 1 Needle Unison Feed Lockstitch with Vertical-axis Large Hook 2.7 Industrial Sewing Machine With Table and Direct Drive Motor

JUKI LU-2810X-7 1 Needle Unison Feed Lockstitch with Vertical-axis Large Hook 2.7 Industrial Sewing Machine With Table and Direct Drive Motor

LU-2810X-7

JUKI LU-2810X-7 1 Needle Unison Feed Lockstitch with Vertical-axis Large Hook Industrial Sewing Machine With Table and Built in Direct Drive Motor and Hook 2.7

$5,999.97
$5,999.97 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose JUKI Control Panel
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the LU-2810X-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

JUKI LU-2810A-7

1 Needle Semi-Dry Unison Feed Lockstitch with Vertical-axis Large Hook Industrial Sewing Machine With Table and Built in Direct Drive Motor

A high and long arm has been adopted. The long-distance from the machine arm to the needle contributes to improved workability. The LU-2800 Series is a unison-feed, compound-feed, walking foot machine, lockstitch machine with a vertical-axis large hook which is provided with substantially improved functions and performance.

Best for Medium to Heavy materials. Great for upholstery projects ranging from indoor/outdoor furniture, automotive, marine, as well as for sewing leather or canvas bags, belts, leashes, wallets.

JUKI LU-2810A-7 full function machine with JUKI CP-18 control panel

MACHINE FEATURES:

Auto Lifter and Automatic Thread Trimmer!

Functions for improving seam quality and workability

The long-distance from the machine arm to the needle contributes to improved workability.

Walking-foot/presser-foot alternating vertical movement mechanism

The sewing machine has adopted a feed mechanism that keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the sewing machine.

Higher lift of the presser bar

A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and Eccentricity of the feed driving cam is adjustable.

Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best suited to the material and thread used. It is no longer necessary to prepare other subclass model sewing machines.

New lubrication system

Lubrication system is powerful and stable even low speed.

New bobbin thread spool device

New bobbin thread spool device is no necessity of rolling thread manually.

Stitch length can be changed over among different lengths

The sewing machine with a thread trimmer is provided as standard with a 2-pitch dial. One unit of this sewing machine is able to sew different sewing lengths since the sewing length can be instantaneously changed over.

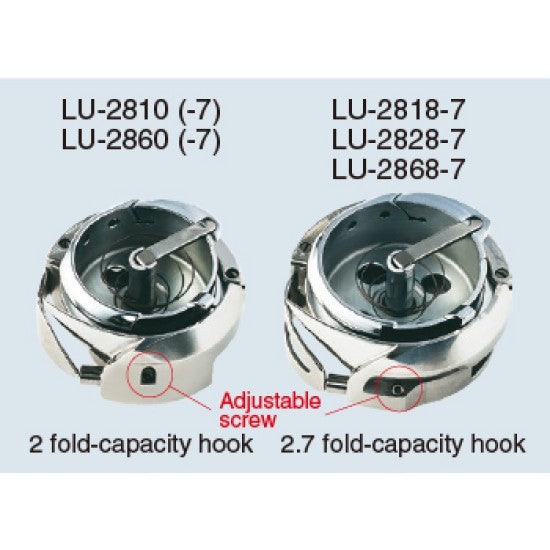

2.7 fold-capacity hook

The hook can be adjusted with a screw amount of needle guard contact to the needle. The needle guard can be easily adjusted. Therefore, it prevents stitch skipping and wear of hook edge.

New-type tank-style automatic lubrication mechanism has been adopted

The oil dropped from the hook and its surrounding sections into the under-cover is filtered to remove dirt and dust and is then returned to the oil tank. This method saves the effort of oiling and reduces oil consumption. The remaining oil quantity indicator is provided on the front face of the machine head. Lubrication can be carried out without tilting the machine head.

MACHINE SPECIFICATIONS

  • Application: Medium to Heavy-Weight
  • Max. sewing speed: 3000 spm
  • Max. stitch length: 9mm
  • Lift of the presser foot:
  • By hand 10mm
  • Auto 20mm
  • Stitch length dial: 1 Pitch dial
  • Hook: Vertical axis 2.7 fold-capacity hook
  • Needle Thread Tension: Double-tension
  • Hook: Vertical axis 2 fold-capacity hook
  • Needle: 135×17 Nm160 (Nm125~Nm180)
  • Needle Gauge (Needle Spacing): 1/4"
  • Lubrication: Semi-dry head automatic (tank system)
  • Thread: #30~#5, B46~B138, Nm=60/3~20/3
  • Oil: JUKI New Defrix Oil #1

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
