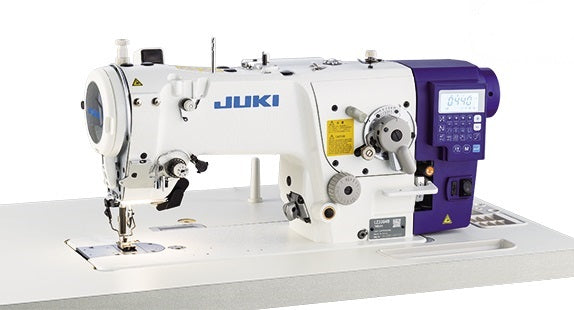

• JUKI LZ-2280BB High-Speed 1 Needle Lockstitch Zigzag Stitching Industrial Sewing Machine With Table and Direct Drive
1 1

JUKI LZ-2280B (B) High-Speed 1 Needle Lockstitch Zigzag Stitching Industrial Sewing Machine With Table Direct Drive

JUKI LZ-2280B (B) High-Speed 1 Needle Lockstitch Zigzag Stitching Industrial Sewing Machine With Table Direct Drive

LZ-2280

JUKI LZ-2280 High-Speed 1 Needle Lockstitch Zigzag Stitching Industrial Sewing Machine With Table and Direct Drive

This photo is related to this series of machines, and the actual machine may look different from the photo.

$4,999.95
$4,999.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Specifications
  • Manuals & warranty
  • Servo Motor
  • More accessories

Note : This photo is related to this series of machines, and the actual machine may look different from the photo.

JUKI LZ-2280A(A)

High-Speed 1 Needle Lockstitch Zigzag Stitching Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

The sewing machine produces soft seams consistency with a low tension applied to the thread.

Problems which are associated with low-tension sewing such as "double-catching" and "irregular stitches", as well as factors which affect seam quality such as "thread path", "thread bending resistance", "feed locus", "needle locus" and "timing" have been thoroughly reviewed, thereby successfully producing soft seams. The machine has adopted JUKI's established genuine hook and thread take-up lever.

MACHINE SPECIFICATIONS:

  • Stitch System: Standard Zigzag
  • Max. Sewing Speed: 5000 Stitches per Minute
  • Max. Zigzag Width: 5mm
  • Max. Stitch Length: 2.5mm
  • Needle: 134 SUK (Nm70) / 135×5
  • Bobbin: 225-96704
  • Bed Size: 477mm x 178mm

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2><u>PARTS & ACCESSORIES for the JUKI LZ-2280A(A)</u></h2>
<p><strong>Needles</strong>: 134 SUK<strong><br>Bobbins</strong>:&nbsp;<a href="https://www.goldstartool.com/bobbin-juki-225-96704.htm" target="_blank">Bobbin - JUKI #225-96704</a><strong><br>Bobbin Case:</strong>&nbsp;<a href="https://www.goldstartool.com/bobbin-case-asm-juki-401-25507.htm" target="_blank">Bobbin Case ASM - JUKI #401-25507</a><strong><br>Presser Foot</strong>:&nbsp;<a href="https://www.goldstartool.com/presser-foot-juki-225-48671.htm" target="_blank">Presser Foot - JUKI #225-48671</a><br><strong>Feed Dog</strong>:&nbsp;<a href="https://www.goldstartool.com/feed-dog-juki-225-48119.htm" target="_blank">JUKI #225-48119</a><br><strong>Needle&nbsp;Plate</strong>:<a href="https://www.goldstartool.com/needle-plate-juki-225-48010.htm" target="_blank">&nbsp;Needle Plate - JUKI #225-48010</a><br></p>

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch, you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

PARTS & ACCESSORIES for the JUKI LZ-2280A(A)

Needles: 134 SUK

Bobbins: Bobbin - JUKI #225-96704

Bobbin Case: Bobbin Case ASM - JUKI #401-25507

Presser Foot: Presser Foot - JUKI #225-48671

Feed Dog: JUKI #225-48119

Needle Plate:Needle Plate - JUKI #225-48010

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI LZ-2280A ZigZag Sewing Machine - Goldstartool.com
