JUKI LZ-2284A Series Zig Zag 3-Step Changeover Function Sewing Machine With Table, and Direct-drive Servo Motor

JUKI LZ-2284A Series Zig Zag 3-Step Changeover Function Sewing Machine With Table, and Direct-drive Servo Motor

LZ2284A Series_LZ-2284A_127837282

JUKI LZ-2284A Series Zig Zag 3-Step Changeover Function Sewing Machine With Undertrim With Table, and Direct-drive Servo Motor

$6,489.97
$6,489.97 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Model
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

JUKI LZ-2284A Series

Zig Zag 3-Step Changeover Function Sewing Machine With Undertrim With Table, Legs, Direct-drive Servo Motor, and LED lamp

JUKI LZ-2284A Series

Zig Zag 3-Step Changeover Function Sewing Machine With Table, and Direct-drive Servo Motor

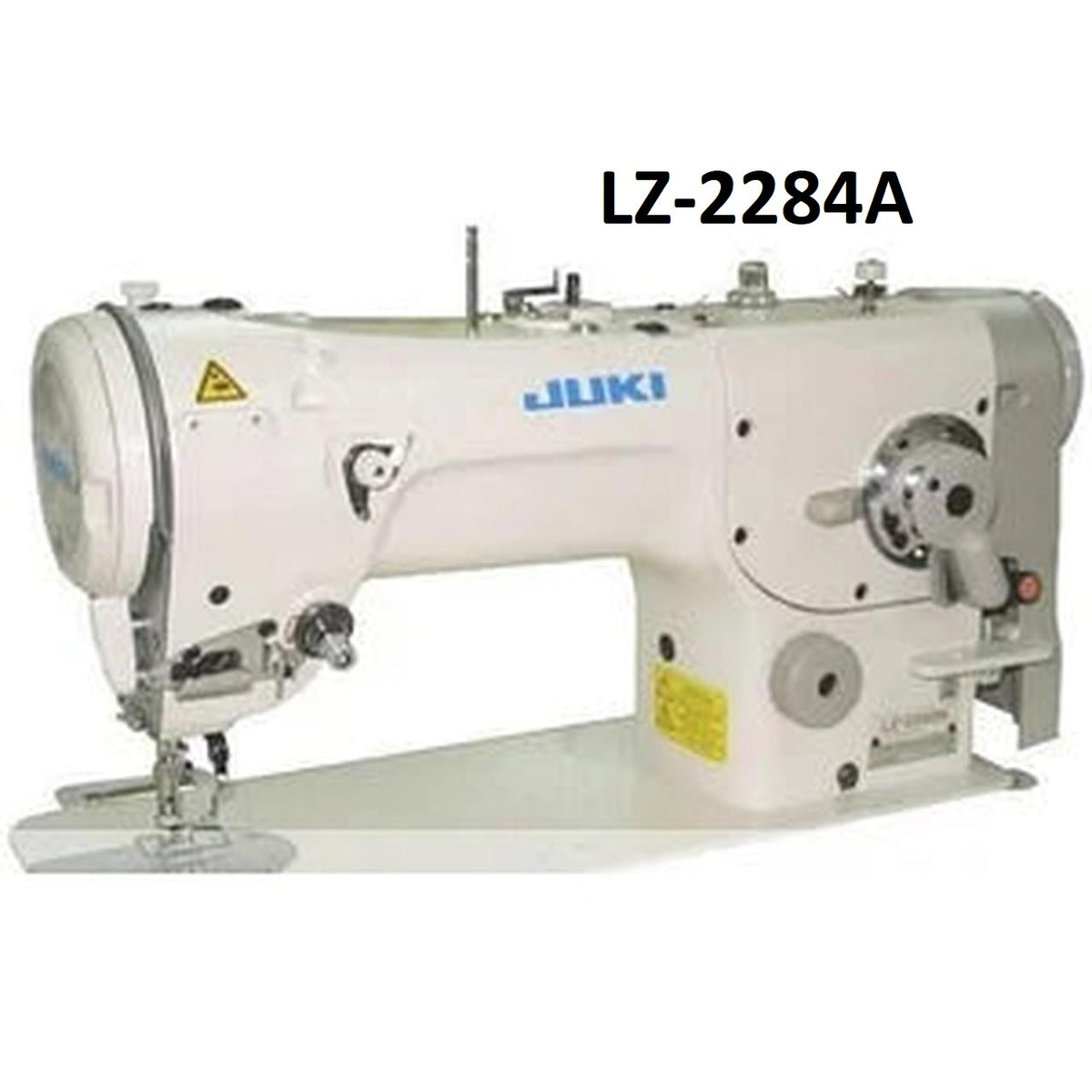

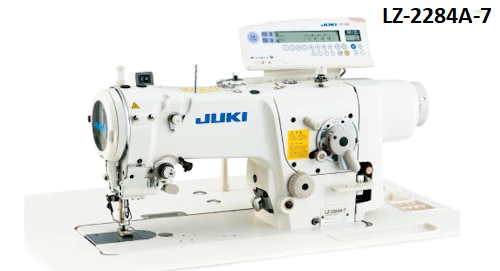

LZ-2284A (Standard/3-step Zigzag) and LZ-2284A-7 (with automatic thread trimmer) can perform two stitching patterns by one machine, thereby increasing the machine's operation rate.

The machine produces high-quality soft seams.

MACHINE FEATURES:

  • Equipped with two different functions, the machine is available to handle a wider range of application
  • Switch between the standard zigzag stitching pattern and the 3-step zigzag stitching pattern with simple one-touch control
  • The adjustable range of the feed mechanisms has been widened, thereby upgrading the machine's responsiveness to materials
  • JUKI-specific loop spreading-structure knife sliding system enables thread trimming without fail whether the needle throws to the right or the left
  • Adjustment for various feed timings
  • Adjustment of oil quantity in the hook
  • The sewing machine produces soft seams with consistency with a low tension applied to the thread

MACHINE SPECIFICATIONS:

  • Thread Trimmer:
  • LZ-2284A: Without automatic trimmer
  • LZ-2284A-7: Automatic thread trimmer
  • Stitch System: Standard / 3-step zigzag
  • Stitch Pattern:
  • Max. Sewing Speed: 5,000 sti/min
  • Max. Zigzag width:
  • Standard: 5mm
  • 3-Step: 10mm
  • Max. Feeding Amount: 2.5mm
  • Lift of the presser foot:
  • By Hand: 5.5mm
  • By Knee: 10mm
  • Hook: DP hook (with titanium-treated inner hook)
  • Thread take-up: Rotary type
  • Lubrication: Fully Automatic
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Needle at time of delivery: 134SUK (Nm70)
  • Needle position-changing mechanism: Provided as standard
  • Reverse feed stitching mechanism: Provided as standard
  • Needle throw pattern cam: Grooved cam

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

DIRECT-DRIVE SERVO MOTOR:

Direct-drive means no external motor is attached to the machine table. The servomotor motor is housed inside the machine and has no mechanisms, such as a V-belt, which transmits vibrations and noise

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
