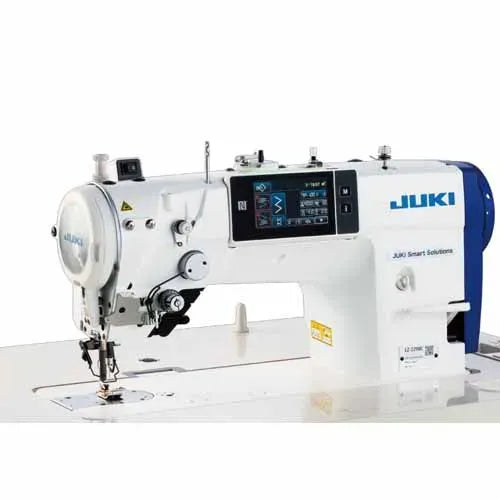

JUKI LZ-2290CS-7 Computer-Controlled High Speed Single Needle Direct-Drive Zig-Zag Industrial Sewing Machine with Table and Built-in Motor

JUKI LZ-2290CS-7 Computer-Controlled High Speed Single Needle Direct-Drive Zig-Zag Industrial Sewing Machine with Table and Built-in Motor

LZ-2290-7

JUKI LZ-2290-7 Computer-Controlled High Speed Single Needle Direct-Drive Zig-Zag Industrial Sewing Machine with Table and Built-in Motor

$9,399.97
$9,399.97 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Machine Option
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Manuals & warranty
  • Servo Motor
  • More accessories

JUKI LZ-2290-7 Computer-Controlled High Speed Single Needle Direct-Drive Zig-Zag Industrial Sewing Machine with Table and Built-in Motor

  • The machine is able to perform a variety of pattern stitching types
  • Sewing patterns can be programmed with ease with the IP-100D operation panel

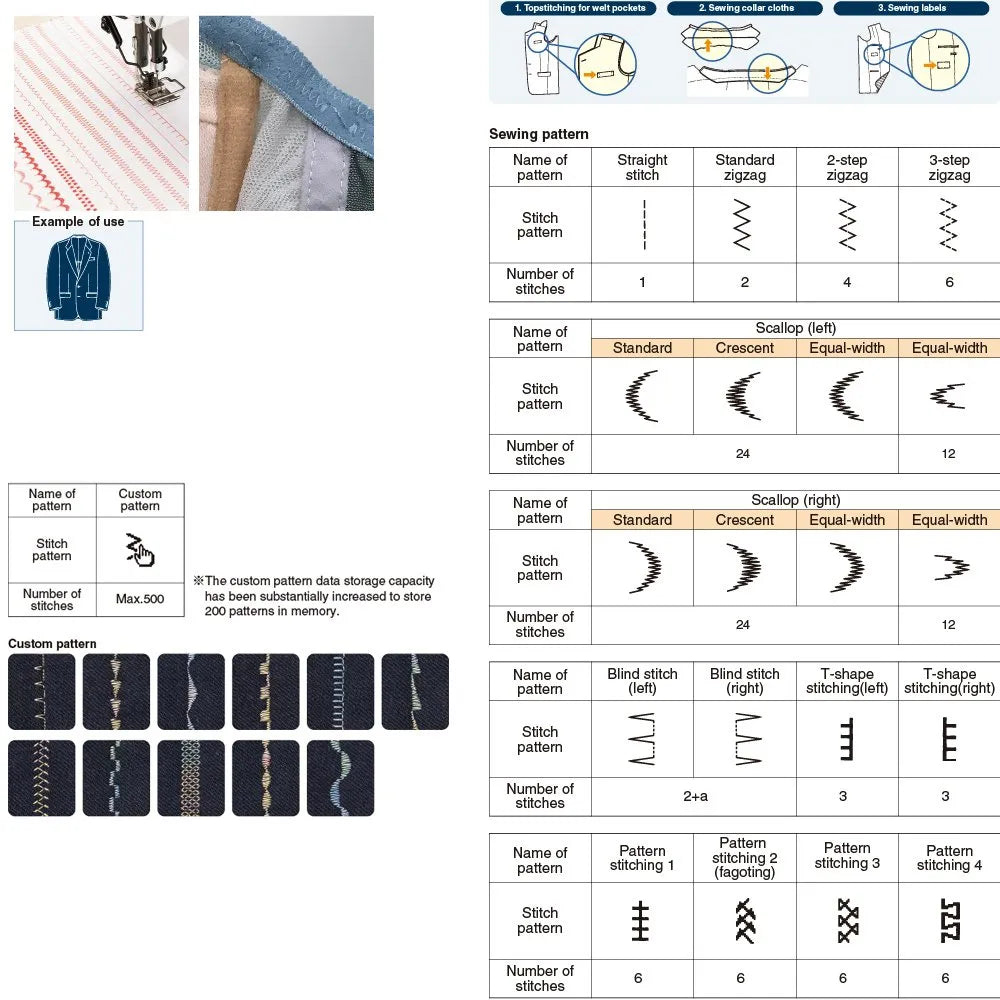

  • Example of the pattern display
  • Newly developed feed mechanism is employed
  • The magnet operating noise is virtually silent, even at the time of changing over the sewing direction between normal and reverse feed directions. This contributes to the achievement of a comfortable working environment with little noise
  • The zigzag width and feed amount are stored on a stitch-shape basis. It is therefore not necessary, after changing the stitch shape, to re-adjust it. For a custom pattern, data can be programmed on a stitch-by-stitch basis
  • Basic functions of the predecessor model have been incorporated into this machine
  • Under Trimmer

DOWNLOADS:

<h3>ACCESSORIES:</h3>
<ul><li>Hemmer foot</li><li>Zipper foot</li><li>Hem feedog</li><li>Hem stem presser foot</li><li>Hem stem needle plate</li><li>Hemmer edge guide</li><li>Buttonhole foot</li></ul>

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

ACCESSORIES:

  • Hemmer foot
  • Zipper foot
  • Hem feedog
  • Hem stem presser foot
  • Hem stem needle plate
  • Hemmer edge guide
  • Buttonhole foot

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
