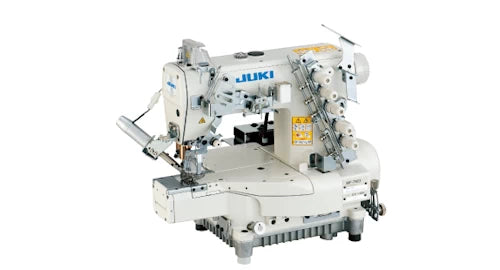

• JUKI MF7923U1164 High-speed Cylinder-bed Top And Bottom Coverstitch Industrial Sewing Machine With Table And Servo Motor
1 1

JUKI MF7923U1164 High-speed Cylinder-bed Top And Bottom Coverstitch Industrial Sewing Machine With Table And Servo Motor

JUKI MF7923U1164 High-speed Cylinder-bed Top And Bottom Coverstitch Industrial Sewing Machine With Table And Servo Motor

MF7923U1164

JUKI MF7923U1164 High-speed Cylinder-bed Top And Bottom Coverstitch Industrial Sewing Machine With Table And Servo Motor

$6,999.95
$6,999.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

JUKI MF7923U1164

High-speed Cylinder-bed Top And Bottom Coverstitch Industrial Sewing Machine With Table, Legs, Servo Motor, and LED Lamp

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the DDL-8700. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.


The machine can be used for the hemming process of the sleeves and bottoms of T-shirts and the covering process for sportswear and knitwear. The front cover is trimmed to allow operators to bring their hands closer to the needle entry area, thereby increasing work efficiency in the covering process.

MACHINE FEATURES:

  • Micro-lifter mechanism
  • Differential-feed micro-adjustment mechanism
  • The looper thread twining prevention mechanism has been improved and is provided as a standard for the sewing machine.
  • Commercially-available gauge components are applicable with no additional work
  • JUKI's dry-head technology protects sewing products from being stained with oil

MACHINE SPECIFICATIONS:

  • Stitch Type: 2-needle/3-needle top and bottom covering stitch
  • Needle: UY128GAS (#10S) #9~#12S
  • Lift of the presser foot: 5mm (with top and bottom covering stitch), 8mm (with bottom covering stitch)
  • Stitch pitch dial: By dial
  • Differential feed adjustment: By micro-adjustment mechanism
  • Lubrication: Automatic
  • Lubricating oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
  • Feed dog inclination adjustment: Provided as standard
  • Micro-lifter: Provided as standard
  • Needle gauge (mm): 3.2, 4.0, 4.8, 5.6, 6.4
  • Needle bar stroke converting function:
  • Provided as standard: 31mm at the time of delivery
  • When sewing a heavy-weight material: 33mm
  • Silicon oil tank for needle tip and needle thread: Provided as standard
  • Cartridge oil filter: Provided as standard
  • Power requirement /Power consumption: Single-phase 100~120V / 200~240V
  • Weight of the machine head: 41kg (without device)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI MF7923U1164 Cylinder-Bed Sewing Machine
