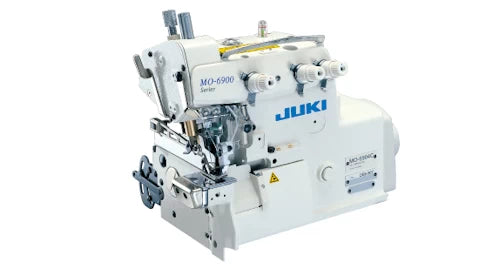

JUKI MO-6914C 4-Thread Cylinder-Bed Overlock Machine With Table and Servo Motor

JUKI MO-6914C 4-Thread Cylinder-Bed Overlock Machine With Table and Servo Motor

MO-6914C

JUKI MO-6914C 4-Thread Cylinder-Bed Overlock Machine With Table and Servo Motor

$5,199.99
$5,199.99 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

JUKI MO-6914C

4-Thread Cylinder-Bed Overlock Machine With Table, Legs, Servo Motor, and LED Lamp

The Juki MO-6914C

2-needle, 4-thread super-high-speed overlock/safety stitch machine. Machines are supplied fully assembled, complete with British RU/C wheeled stand, manufacturer-grade tabletop, drawer & extras. Before dispatch, everything is tested and signed off by one of our technicians so you can be sewing within minutes!

The Juki MO-6914C is perfect for run stitching or blind-hemming of tubular materials such as sleeve cuffs. Machines like this are therefore popular with makers of items like children’s clothing. Features such as the needle thread heat remover and needle cooler also ensure that this machine produces high-quality seams when working at high speeds. The adjusting mechanisms also ensure that ideal conditions can be set according to the fabric being used, so it can respond to various kinds of sewing materials and processes.

New and powerful machine for sewing tubular materials!

MACHINE FEATURES:

  • 2-needle, 4-thread, super-high-speed overlock machine
  • Small-diameter cylinder bed for easy run stitching or blind-hemming of tubular materials such as sleeve cuffs
  • Upgraded seam quality at higher speeds
  • Produces delicate, soft-to-the-touch flexible seams which correspond to the elasticity of the material
  • Needle and looper thread take-up mechanisms enable sewing with a lower tension applied to the material to achieve soft, high-quality seams
  • Stitch length can be easily adjusted by the push-button mounted on the front surface of the sewing machine.
  • Equipped as standard with a micro-lifter to increase responsiveness and help reduce operator fatigue
  • Shield-structured needle bar mechanisms and upper and lower needle bar bushings contribute to increased durability and reliability.
  • Needle thread heat remover and needle cooler to prevent stitching problems during high-speed sewing.
  • It comes with various adjusting mechanisms to allow ideal conditions to be set for the type of material being used

MACHINE SPECIFICATIONS:

  • Stitch type: 2 Needle Overlock
  • Stitch style in the U.S.A.: 514
  • Max. sewing speed: 8000 sti/min
  • Stitch length: 0.8~3.5mm
  • Needle gauge (mm): 2.0
  • Overedging width (mm): 3.2, 4.0
  • Differential feed ratio:
  • For gathering: 1:2.3 (max. 1:4.5)
  • For stretching: 1:0.7 (max. 1:0.8)
  • Needle bar stroke: 24.5mm
  • Inclination angle of the needle: 20°
  • Needle mechanism: Needle bar method and upper /lower bushing
  • Needle: DC×27
  • Max. lift of the presser foot: 7mm(excluding some subclass models)
  • Max. presser foot pressure: 63.7N (6.5kgf)
  • Stitch adjusting method: By push-button
  • Differential-feed adjusting method: By lever
  • Weight of the machine head: 24kg
  • Lubrication: Automatic
  • Lubricating oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
  • Needle cooler: Provided as standard
  • Needle thread heat remover: Provided as standard
  • Micro-lifter: Provided as standard

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
