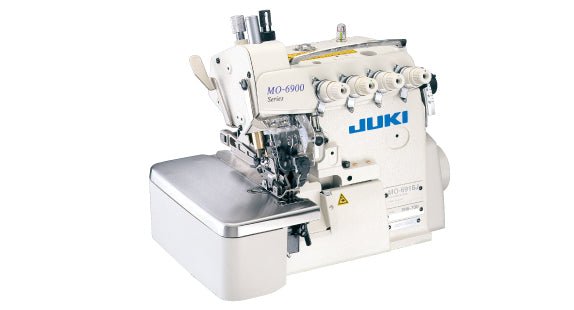

JUKI MO-6916J-FF6-700 5-Thread Top Feed Overlock Safety Stitch Industrial Serger With Table and Servo Motor

JUKI MO-6916J-FF6-700 5-Thread Top Feed Overlock Safety Stitch Industrial Serger With Table and Servo Motor

MO-6916J-FF6-700

JUKI MO-6916J-FF6-700 5-Thread Top Feed Overlock Safety Stitch Industrial Serger With Table and Servo Motor

$7,999.96
$7,999.96 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Table Size
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor


JUKI MO-6816S

5 Thread Top Feed Overlock Safety Stitch Industrial Serger With Table and Servo Motor

An advanced full-featured machine that is ideally suited to the sewing of extra heavy-weight materials

The machine incorporates a mechanism and parts that are optimum for the sewing of extra heavy-weight materials, such as an extra high-lift type upper looper, tractor foot and coarse type feed dog. It demonstrates an excellent performance ability in the sewing of various kinds of heavy-weight materials such as jeans, raised fabric materials, mats and carpets.

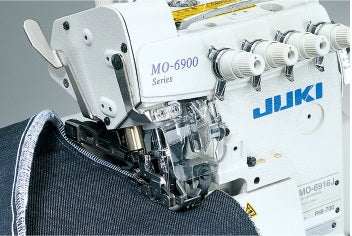

The MO-6900J Series comes with a newly developed feed mechanism that moves the top and bottom feeds separately.

With its improved feeding capacity and stronger cloth-biting force, the feed mechanism prevents uneven material feed when sewing extra heavy-weight material.

JUKI MO-6916J-FF6-700 MACHINE FEATURES:

  • The machine incorporates mechanisms that are both durable and reliable, such as the needle bar mechanism, utilizing the upper and lower bushings, a cartridge type oil filter and cooling fan.
  • The machine is equipped as standard with a micro-lifter that helps reduce operator fatigue. The micro-lifter is designed to achieve optimum balance, not only reducing noise and vibration but also ensuring comfortable operation.
  • Needle thread heat remover and needle cooler prevent stitching troubles during times of high-speed sewing, thereby contributing to upgraded seam quality.
  • The machine comes standard with various adjusting mechanisms, such as a micro-adjusting mechanism, all of which can be easily adjusted to enable the machine to perform sewing under the best-suited conditions for any kind of material.

MACHINE SPECIFICATIONS:

  • Model name: MO-6916J-FF6-700
  • Stitch Type: Safety stitching
  • Stitch style in the U.S.A.: 516
  • Max. Sewing speed: 6,000 Stitches Per Minute
  • Stitch length: 2.5～5mm
  • Needle gauge (mm): 4,8
  • Needle bar stroke: 28.8mm
  • Inclination angle of needle: 20 degrees
  • Needle bar bushing: upper/lower bushing method
  • Over edging width (mm): 4.8, 6.4
  • Number of feed dog rows: 3
  • Vertical stroke of top feed dog: 8.5mm
  • Longitudinal stroke of top feed dog: 2.7~7mm
  • Max lift of presser foot: 8mm
  • Needle System: DOx5, #21
  • Lubrication: Automatic
  • Lubricating Oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
  • Weight of the machine head: 29kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

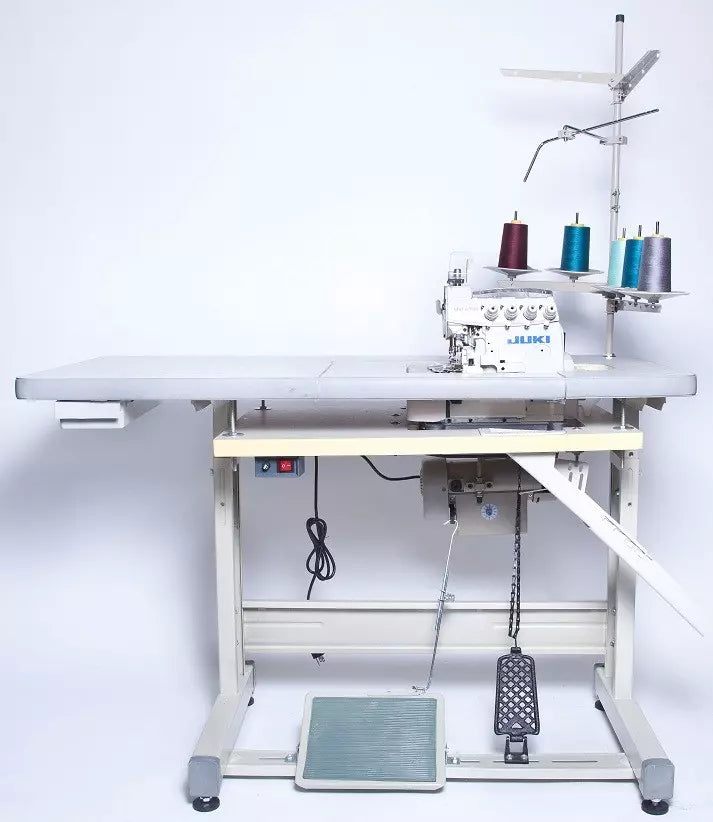

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

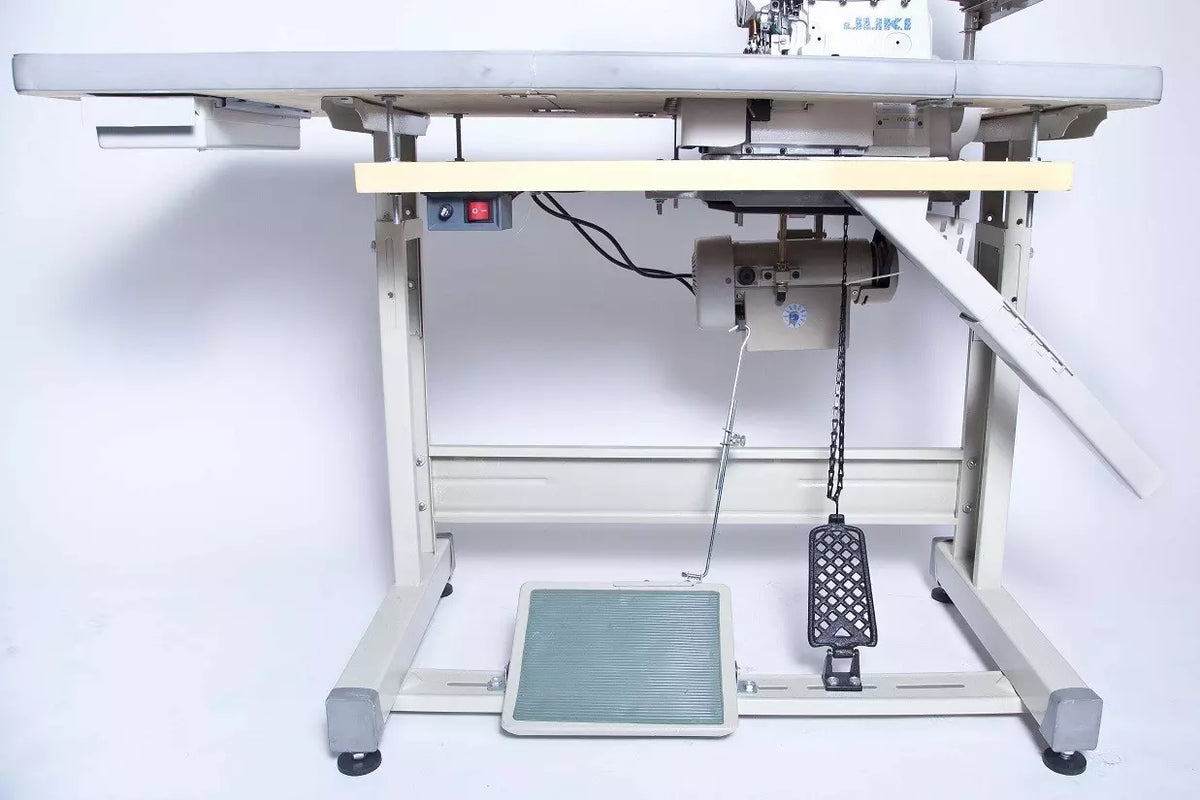

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Juki MO-6916J 5-Thread Industrial Serger - Goldstartool.com

Product Showcase - Juki MO-6916J 5-Thread Industrial Serger Part 2 - Goldstartool.com
