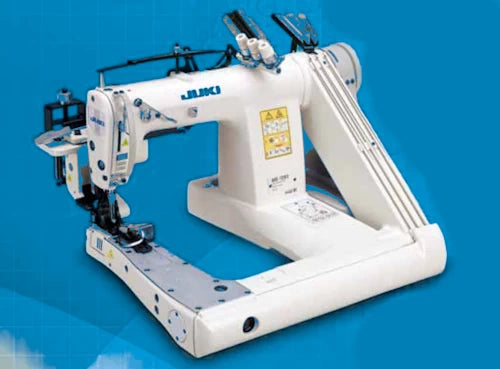

JUKI MS-1261 /V045 Feed-off-the-arm Double Chainstitch Industrial Sewing Machine With Table And Servo Motor

JUKI MS-1261 /V045 Feed-off-the-arm Double Chainstitch Industrial Sewing Machine With Table And Servo Motor

MS-1261

JUKI MS-1261 Feed-off-the-arm Double Chainstitch Industrial Sewing Machine With Table And Servo Motor

$8,999.95
$8,999.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

JUKI MS-1261

Feed-off-the-arm Double Chainstitch Industrial Sewing Machine With Table, Legs,  Servo Motor, and LED Lamp

About the JUKI MS-1261

The machine is the leading double chainstitch machine for heavy-weight materials and achieves higher efficiency in operation and higher quality of finished products.

For extra heavy-weight materials for jeans

MACHINE FEATURES:

Thanks to the thread guide between the needle bar thread take-up and the intermediate tension release lever, the timing to tense the needle thread can be decreased. As a result, the machine is capable of beautiful stitches with a soft appearance even when heavy-weight material is used.

  • Achieve beautifully finished seams while preventing puckering and stitch skipping.
  • Low tension stitching ability and improved stitching mechanism prevent puckering.
  • The machine prevents stitch skipping even when it runs at high speed, ensuring high-quality products.
  • The machine is equipped as standard, with newly developed folders that enable the machine to perform stitching with consistency.
  • Designed for ease of use. Push-button type stitch length dial, times of feed driving, and looper rocking cam can be separately adjusted.

MACHINE SPECIFICATIONS:

  • Number of Needles: 3
  • Max. Sewing Speed: 3600 sti/min
  • Needle Bar Stroke: 33.2mm
  • Needle at time of delivery:
  • SCHMETZ UY128GAS (Nm130)- Nm100~Nm140
  • ORGAN UY×128GAS-NY (#21)- #16~#22
  • Needle Gauge: 5.6mm (7/32"), 6.4mm (1/4"), 7.2mm (9/32"), 8.0mm (5/16"), 9.6mm (3/8")
  • Stitch Length: 1.4~4.2mm
  • Lift of the Presser Foot: 10mm
  • Thread Take-up lever: Needle bar thread take-up lever
  • Circumference of tube at the needle entry: 190mm
  • Needle Guard: Backward traveling needle guard
  • Stitch Adjusting System: By push-button (with locking mechanism)
  • Lubrication: Semi-automatic lubrication
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
