JUKI MS-3580 Series Feed-off-the-Arm 3 Needle Double Chainstitch Industrial Sewing Machine with Table and Motor

JUKI MS-3580 Series Feed-off-the-Arm 3 Needle Double Chainstitch Industrial Sewing Machine with Table and Motor

MS-3580_0SN

JUKI MS-3580 Series Feed-off-the-Arm 3 Needle Double Chainstitch Industrial Sewing Machine with Table and Motor

$10,199.95
$10,199.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Model
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor

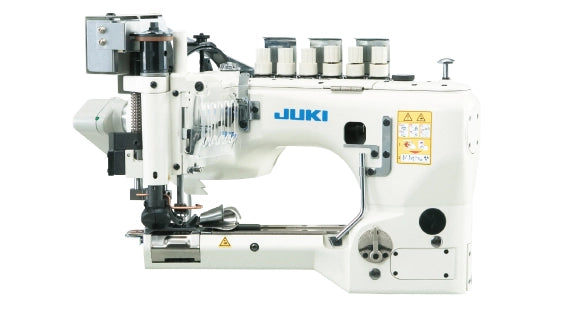

JUKI MS-3580 Series

Feed-off-the-Arm 3 Needle Double Chainstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

This machine demonstrates increased feed efficiency to handle extra heavy weight 16-ply denim.
Engineered with extra feeding strength for seaming the inside of jeans.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the MS-3580 Series. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.

The JUKI MS-3580 Series

JUKI MS-3580 Feed-off-the-Arm 3 Needle Double Chainstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

This machine comes in 2 options:

  • MS-3580S-1SN: With differential feed
  • MS-3580S-0SN: Without differential feed

The machine is best suited for lap-seaming jeans, denim jackets, work uniforms, etc., constructed of heavyweight materials.

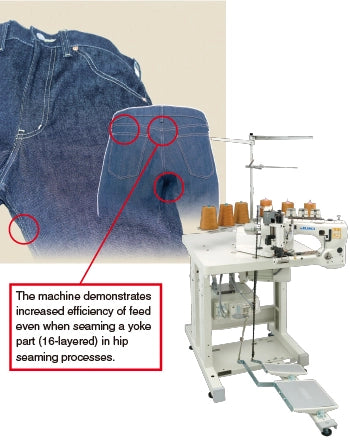

The machine demonstrates increased feed efficiency even when seaming a yoke part (16-layered) in hip seaming processes.

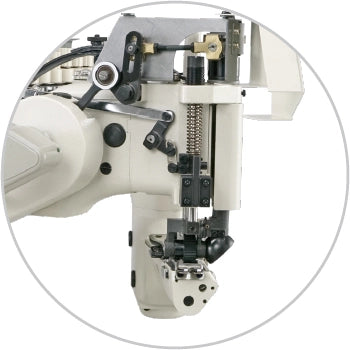

Strong feeding mechanism of the puller

The puller incorporates a one-way clutch mechanism which contributes to the consistent feeding of the material.

(A cover protects the mechanical part for added safety.)

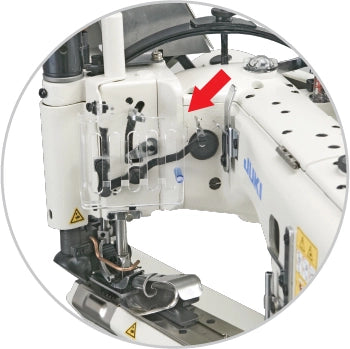

Thread take-up device, which helps produce even stitches with consistency

The feeding amount of needle thread is automatically adjusted to the pressure foot height during sewing, producing even stitches with consistency.

The machine has been designed to achieve the best possible ease of threading.

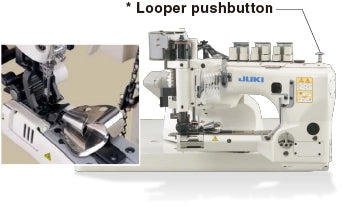

When the looper pushbutton (*) located on the operator side of the top of the machine head is pushed, the tip of the looper moves downward to allow the operator to thread the machine head easily.

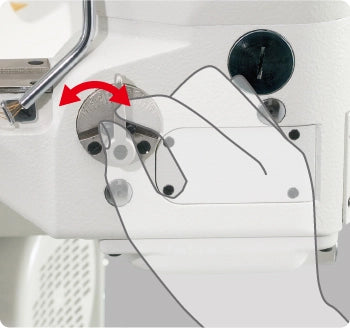

The differential feed adjusting lever is located on the front face of the machine head.

The differential feed adjusting lever can be adjusted even during sewing, effectively preventing cloth slippage between two plies.

  • Application: Medium- to heavy-weight: jeans, denim jackets, work uniforms, etc.
  • Max. sewing speed: 4,500sti/min
  • Needle gauge: 6.4mm, 7.2mm
  • Stitch length: 2.1～3.6mm (standard 3.2mm)
  • Needle: UY130GS (standard) / Nm140 (#22)
  • Feed adjusting method (main feed): Slide-type stitch-length adjusting method
  • Top feed roller width: 11.9mm
  • Feed adjusting method(differential feed):
  • MS-3580S-1SN - Lever adjusting method
  • MS-3580S-0SN - Without the differential feed capability
  • Installation method: To be installed on the table using an auxiliary drive assembly MT03

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges are necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES, THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch, you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of the Servo motor speed control, most users find the machine easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
