JUKI PL980 Series Post-Bed Lockstitch Industrial Sewing Machine With Table And Servo Motor

JUKI PL980 Series Post-Bed Lockstitch Industrial Sewing Machine With Table And Servo Motor

PL-981

JUKI PL980 Series Post-Bed Lockstitch Industrial Sewing Machine With Table And Servo Motor

$6,199.99
$6,199.99 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Model
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty
  • FAQ
  • Servo Motor

JUKI PL-980 Series

Please call us to check availability and price at 1-800 868-4419

High-Speed Single Needle Straight Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

Get Ready to Fall in Love with Your New PL-980 Series

Even though it’s a high-powered industrial machine, the servo motor makes it much quieter. Smooth, fast, and quiet stitching means you’ll be able to sew longer and get bigger projects completed quickly.

Need to put the brakes on that high-speed stitch? Adjust the servo motor for a slower speed anytime.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the PL-980 Series. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.

The JUKI PL-980 Series

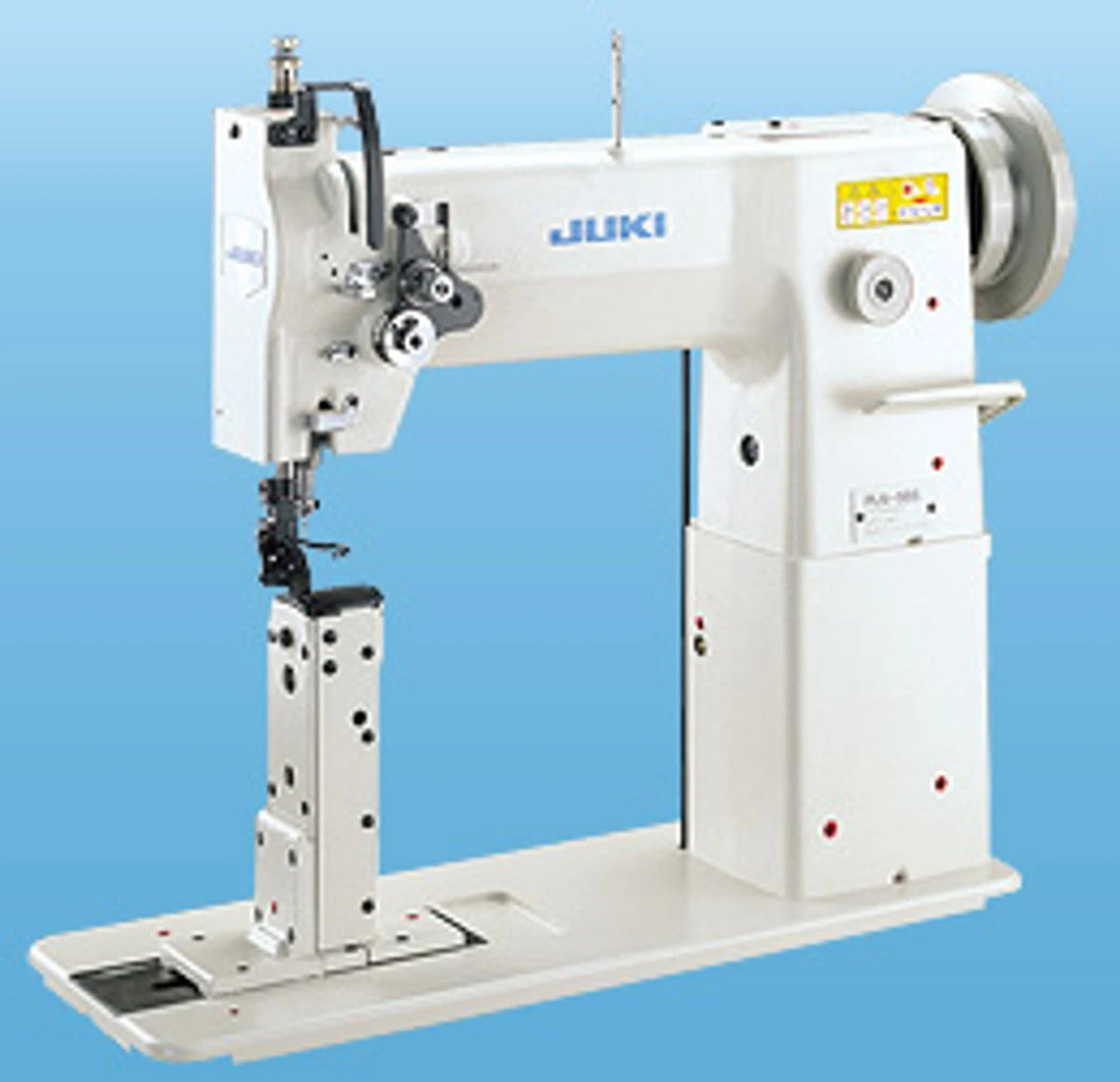

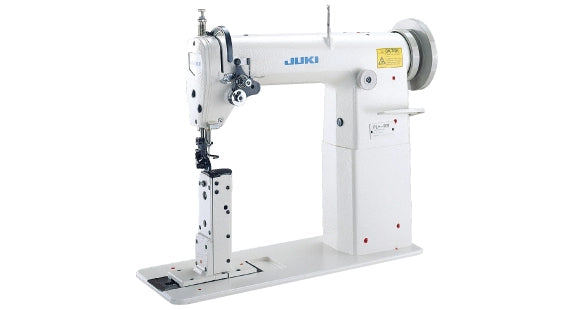

JUKI PL-980 Series Post-bed, Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

This machine comes in 3 options:

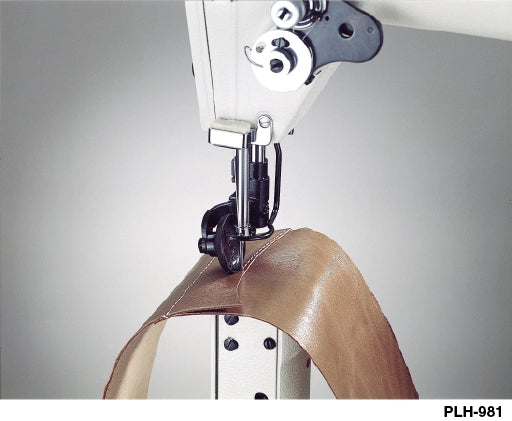

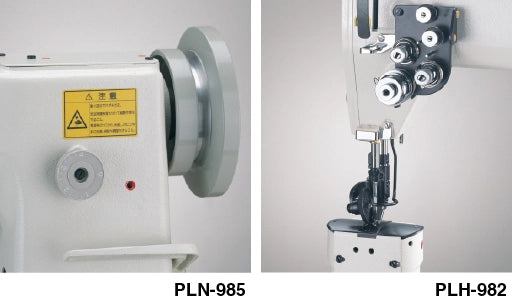

  • PLH-981 - 1 Needle Bottom- Feed
  • PLH-982 - 2 Needle Bottom - Feed

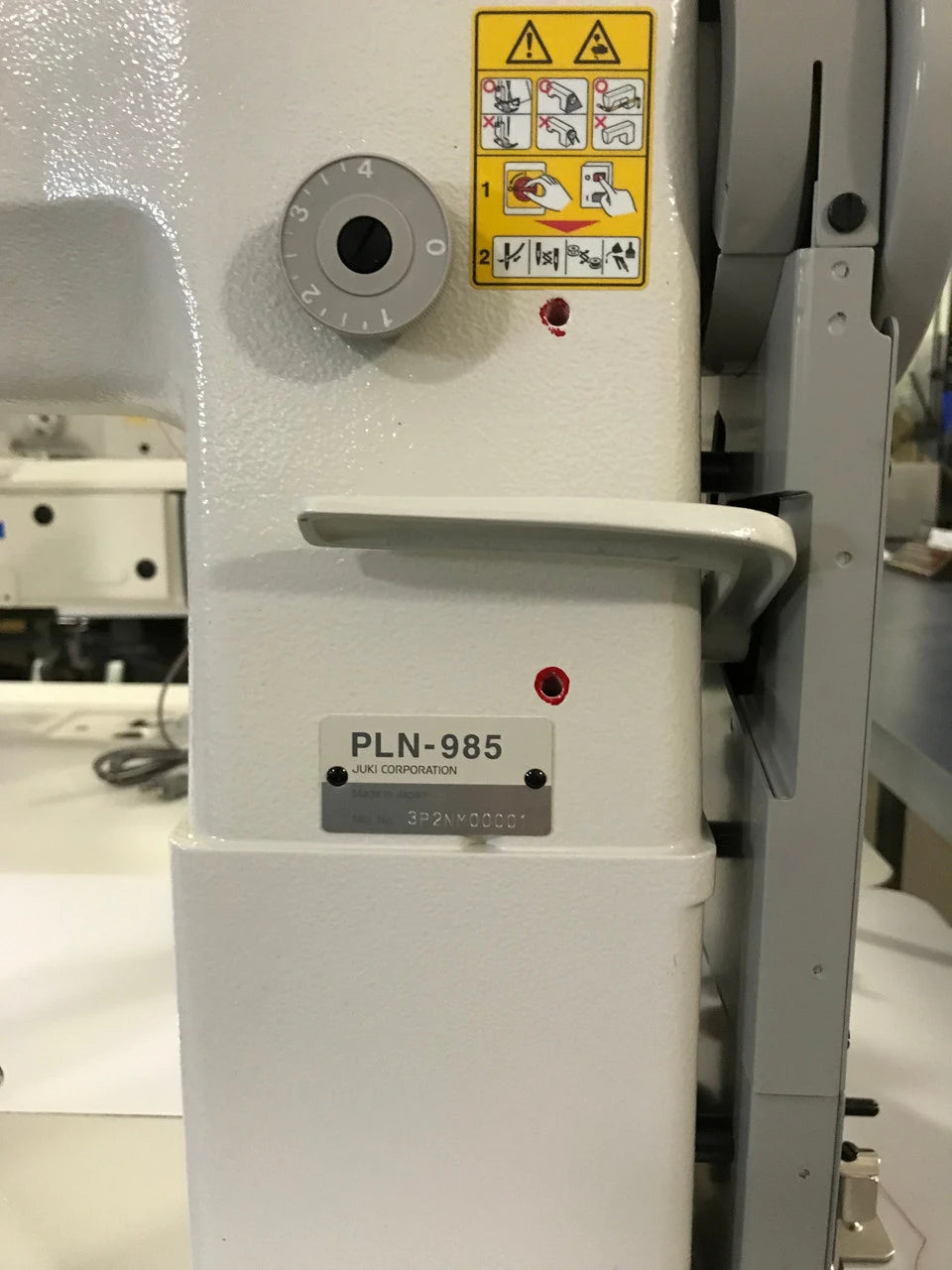

  • PLN-985 - 1 Needle Needle - Feed

JUKI PLN-980 Series MACHINE FEATURES:

  • Comes with a roller presser foot

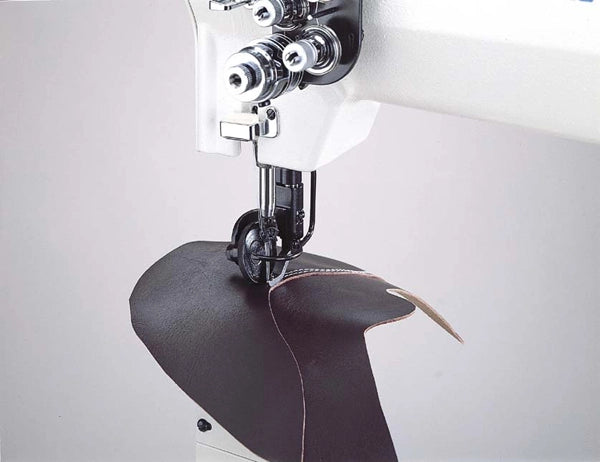

  • Post-bed, Bottom-feed Lockstitch Machine -The machine demonstrates outstanding responsiveness when sewing heavy materials, such as bags, boots, and sports shoes.
  • Post-bed, 1-needle, Needle-feed Lockstitch Machine -With a needle feed mechanism that operates in synchronization with the bottom feed, the machine produces beautiful seams free from slippage even when sewing slippery or hard-to-feed materials.
  • Well-tensioned, consistent seam quality, produces beautiful seams from slippage even when sewing slippery or hard-to-feed materials.
  • With a needle feed mechanism that operates in synchronization with the bottom feed, the machine produces beautiful seams free from slippage,
  • even when sewing slippery or hard-to-feed materials.

MACHINE SPECIFICATIONS:

  • Feed System:
  • PLN-985 - Needle Feed
  • PLH-981 / PLH-982 - Bottom - Feed
  • Max. Sewing Speed: 2,500 Stitches per Minute
  • Max. Stitch Length: 4mm
  • Needle Bar Stroke:
  • Lift of Presser Foot By Hand:
  • PLN-985 -6.5mm
  • PLH-981 / PLH-982 - 7mm
  • Lift of Presser Foot By Knee:
  • PLN-985 - 9mm
  • PLH-981 / PLH-982 - 10mm
  • Thread Take-up: Slide Type
  • Hook: Vertical-axis
  • Needle Gauge:
  • PLH-982 - 1.6mm
  • Needle (at time of delivery):
  • PLN-985 -DPx5(#16) #16~#21
  • PLH-981 / PLH-982 - DPx5 (#18) #16~ #21
  • Thread: #40~8, B33-B92, Nm =90/3~ 30/3
  • Lubrication: By an oiler
  • Lubricating Oil: JUKI New Defrix Oil No. 1 (equivalent to ISO VG7)
  • Post Height:
  • PLN-985 - 179mm
  • PLH-981 / PLH-982 - 178mm
  • Bed Size: 517mm x 178mm
  • Weight of the machine head:
  • PLN-985 - 40kg
  • PLH-981 / PLH-982 -36kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges are necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES, THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
