JUKI PLC-2765 Large Hook Post-bed Unison-feed Vertical-axis Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI PLC-2765 Large Hook Post-bed Unison-feed Vertical-axis Lockstitch Industrial Sewing Machine With Table and Servo Motor

PLC-2765

JUKI PLC-2765 Large Hook Post-bed Unison-feed Vertical-axis Lockstitch Industrial Sewing Machine With Table and Servo Motor

$12,399.95
$12,399.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • Servo Motor

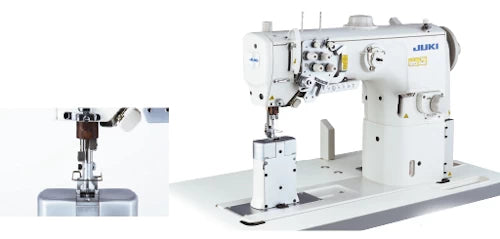

JUKI PLC-2765

Large Hook Post-bed Unison-feed Vertical-axis Lockstitch Industrial Sewing Machine With Table, Legs, Servo Motor, and LED Lamp


Please Note: Due to the professional-grade nature of this sewing machine, the estimated shipping time is approximately 3 weeks.

JUKI PLC-2765

Large Hook Post-bed Unison-feed Vertical-axis Lockstitch Industrial Sewing Machine With Table, Legs, Servo Motor, and LED Lamp

It is the most advanced sewing machine which is best suited to the sewing of heavy-weight materials sewing processes such as car seats, sofas, and sports goods. With its organized split needle bars, the machine produces well-balanced topstitch seams even at the corners of materials such as sofas.

It is the most advanced sewing machine, best suited to sewing heavy-weight materials sewing processes such as car seats, sofas, and sports goods.

MACHINE FEATURES:

  • The long distance from the machine arm to the needle contributes to improved workability
  • Stitches with authentic quality
  • Stitch length can be changed over among different lengths
  • Reduction of noise and vibration
  • The high-torque direct-drive motor is installed
  • Organized split needle bars type
  • Walking-foot/presser-foot alternating vertical movement mechanism prevents irregular stitches.
  • Higher lift of the presser bar
  • The upper and lower feed ratio is adjustable
  • The eccentricity of the feed driving cam is adjustable
  • Walking-foot/presser-foot alternating vertical movement mechanism prevents irregular stitches
  • New lubrication system
  • Double tension is provided as standard
  • New bobbin thread spool device

MACHINE SPECIFICATIONS:

  • Max. Sewing speed: 2,500sti/min
  • Needle: 2,500sti/min*
  • Thread: TEX 50~167
  • Max. stitch length: 12mm (forward/backward)
  • Stitch adjusting method: 1 pitch dial
  • Thread take-up: Link type
  • Automatic reverse feed function: Lever type
  • Needle bar stroke: 40mm
  • Hook: Vertical-axis 2.0-fold capacity hook (latch type)
  • Lift of the presser foot:
  • By hand: 10mm
  • Auto: 18mm
  • Alternating vertical movement: 1~9mm
  • Alternating vertical movement adjusting method: Dial
  • DL device: Option
  • Safety mechanism: Provided as standard
  • Bobbin thread winder: Built in the machine arm
  • Bottom-feed micro-adjustment mechanism: Provided as standard
  • Lubrication: Automatic (Tank system)
  • Distance from needle to machine arm: 347mm
  • Post height: 170mm
  • Knee-lifter: Provided as standard
  • Auto-lifter: Option
  • Weight of the machine head: 80kg
  • Power requirement/Power consumption: Single-phase 100~120V / 200~240V, 3-phase 200~240V/193VA (with automatic thread trimmer)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
