Kansai Special DFB1404-PMD Flatbed Multi-needle Chainstitch Industrial Sewing Machine with Table and Servo Motor

Kansai Special DFB1404-PMD Flatbed Multi-needle Chainstitch Industrial Sewing Machine with Table and Servo Motor

DFB1404

Kansai Special DFB1404-P Flatbed Multi-needle Chainstitch Industrial Sewing Machine with Table and Servo Motor

$3,499.95
$3,499.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Specifications
  • Manuals & warranty
  • Servo Motor

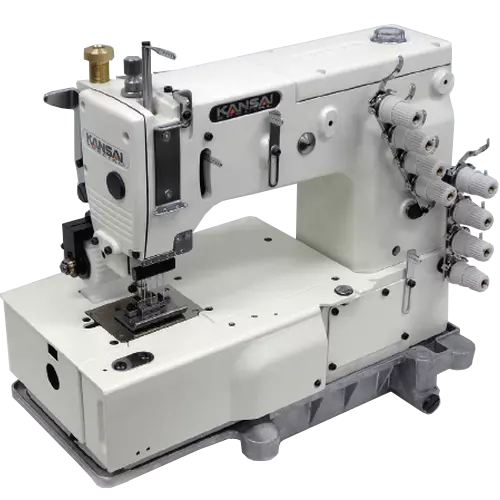

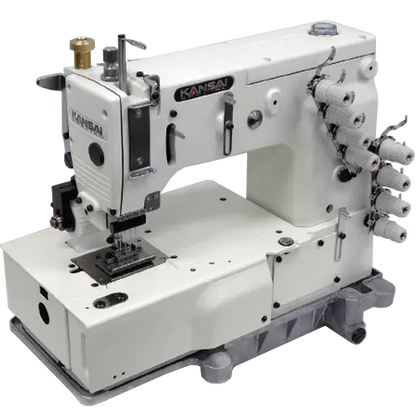

Kansai Special DFB1404-P

Flatbed Multi-needle Chainstitch Industrial Sewing Machine with Table and Servo Motor

Kansai Special DFB1404-P Flatbed Multi-needle Chainstitch Industrial Sewing Machine with Table and Servo Motor

Multi-Needle Chainstitch Machine With Gear Puller Industrial Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

The DFB1404-P is a flatbed, multi-needle double chain stitch machine with needle feed. This machine is best used with light to medium weight fabrics and has adapted a vertical movement looper system. Also, there are variety of gauges, which are selectable according to the operation.

MACHINE SPECIFICATIONS:

  • Number Of Needles: 4
  • Number of Thread: 8
  • Needle Type:
  • Needle Type Organ(#): UO X 113 14#
  • Needle Type Schmetz (Nm): UY X 113 90 Nm
  • Gauge (inch): 3/4, 1, 1-1/8,1-1/4, 1-1/2, 1/4-1/2-1/4
  • Number of Stitches Per Inch: 7~17
  • Presser Foot Lift: 10mm
  • Needle Bar Stroke: 34mm
  • Max Speed Per Inch: 4500spm

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch, you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
