Kansai Special NFS6604GFMH DD Flat Lock 4 Needle Cover Stitch Sewing Machine With Table and Direct Motor

Kansai Special NFS6604GFMH DD Flat Lock 4 Needle Cover Stitch Sewing Machine With Table and Direct Motor

NFS6604GFMH DD

Kansai Special NFS6604GFMH DD Flat Lock 4 Needle Cover Stitch Sewing Machine With Table and Direct Motor

$5,999.99
$5,999.99 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Specifications
  • Application
  • Manuals & warranty

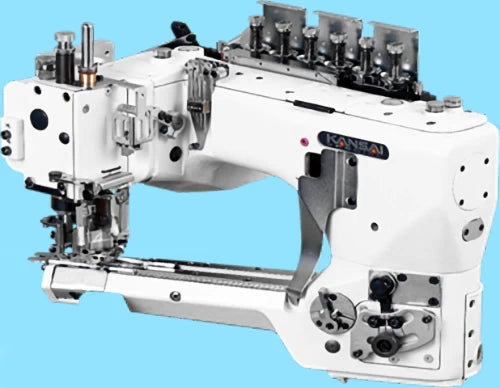

Kansai Special NFS6604GFMH DD

Flat Lock 4 Needle Cover Stitch Sewing Machine With Table, Legs, Direct Motor, and LED Lamp

Kansai Special NFS6604GFMH DD i70

Flat Lock 4 Needle Cover Stitch Sewing Machine With Table, Legs, Direct Motor, and LED Lamp

NFS series are 4 needles, 6 thread, feed-off-the-arm, top, and bottom cover stitch machine. This machine is suitable for sewing high-quality underwear, sports wear, and knit wears. Single side cut or both side cut is possible, this system guarantees a flat and neat finish, for optimum texture of the seam to the skin. This machine is suitable for light ～ heavy materials such as inseaming of brief’s cross seams, and also perfect for tubular garments

For medium to heavy fabric

MACHINE SPECIFICATIONS:

  • Number of Needles: 4
  • Number of Threads: 6
  • Needle Type:
  • Organ: FLX118GCS 11 FLG-8
  • Schmetz: 118GKS 75
  • Gauge: 5.2mm, 6mm
  • Stitches Per Inch: 10～16
  • Differential Feed Ratio: 1:0.5～1:1.5
  • Presser Foot Lift: 6mm
  • Needle bar Stroke: 30mm
  • Max. Sewing Speed: 3500～3800rpm

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Kansai Special NFS6604GFMH-LAM-DD-60 Flat Seamer Sewing Machine -Goldstartool.com
