Yamata FY-1341 10″ Cylinder Arm Walking Foot Needle Feed Industrial Sewing Machine With Table and Servo Motor

Yamata FY-1341 10″ Cylinder Arm Walking Foot Needle Feed Industrial Sewing Machine With Table and Servo Motor

FY-1341

Yamata FY-1341 10″ Cylinder Arm Walking Foot Needle Feed Industrial Sewing Machine With Table and Servo Motor

$3,299.99
$3,299.99 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor

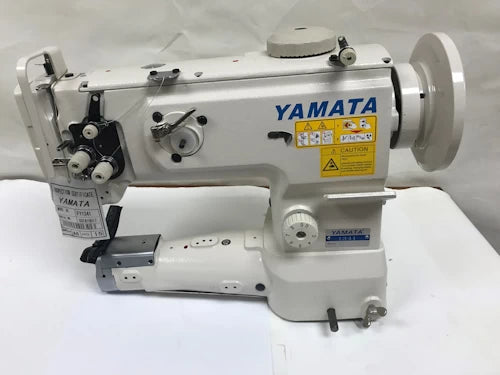

Yamata FY-1341

10″ Cylinder Arm Walking Foot Needle Feed Industrial Sewing Machine With Table, Servo Motor, and LED Lamp

About the Yamata FY-1341

The ideal sewing machine for leather and vinyl bag makers or for medium to heavy-weight materials, such as leather, leather belts, leather bags, leather wallets, automotive upholstery, furniture upholstery, sails, tents, sports and camping equipment, luggage, umbrellas, etc.

This single-needle machine has a dual tension mechanism, with which the machine can support high-tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy-weight materials. In addition, the ratio between the alternating vertical movements of the walking foot and the presser foot remains unchanged even when the material thickness changes.

With this feature, the machine sews multi-layered parts of the material consistently and without stitch gathering. The slimmed-down throat plate easily responds to sewing small tubular articles with diameters as small as 40mm. This enhances the machine’s ability to smoothly sew bags, shoes, and small articles such as wallets.

MACHINE FEATURES:

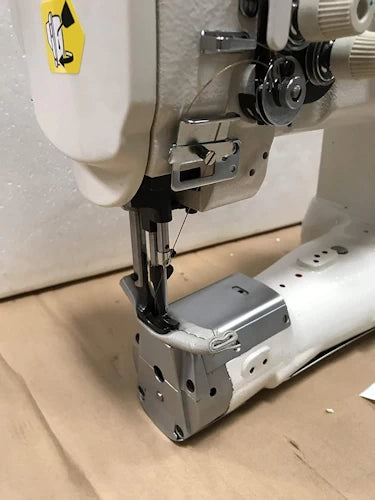

  • The slimmed-down throat plate easily responds to sewing small tubular articles with diameters as small as 40mm.
  • The newly developed mode of highly rigid rectangular feed guarantees outstanding performance. In addition, the ratio between the
  • The alternating vertical movements of the walking and presser feet remain unchanged even when the material thickness changes.
  • With its larger needle bar stroke, larger presser foot lift, and newly adopted double-tension mechanism, the machine sews beautifully
  • with thick threads (low count thread) and at higher thread tensions. This allows the machine to sew a broad range of heavy materials.

MACHINE SPECIFICATIONS:

  • Clearance Under Foot:
  • By Hand: 9mm
  • By Knee: 16mm
  • Needle Bar Stroke: 36mm
  • Max. Stitch Length: 6mm
  • Needle: 135 x 17
  • Sizes: 110-180
  • Thread Size: 33 - 138
  • Hook: Vertical-axis 1.6 fold-capacity hook
  • Locus of feed: Rectangular
  • Knee lift: Built-in on head
  • Bobbin winder: Built-in on head
  • Cylinder size: 72mm
  • Distance from needle to machine arm: 255mm

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch, you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
