Yamata FY-1508NH Heavy Duty Single Needle Walking Foot Industrial Sewing Machine With Table and Servo Motor

Yamata FY-1508NH Heavy Duty Single Needle Walking Foot Industrial Sewing Machine With Table and Servo Motor

FY-1508NH

Yamata FY-1508NH Heavy Duty Single Needle Walking Foot Industrial Sewing Machine With Table and Servo Motor

$2,499.95
$2,499.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Servo Motor

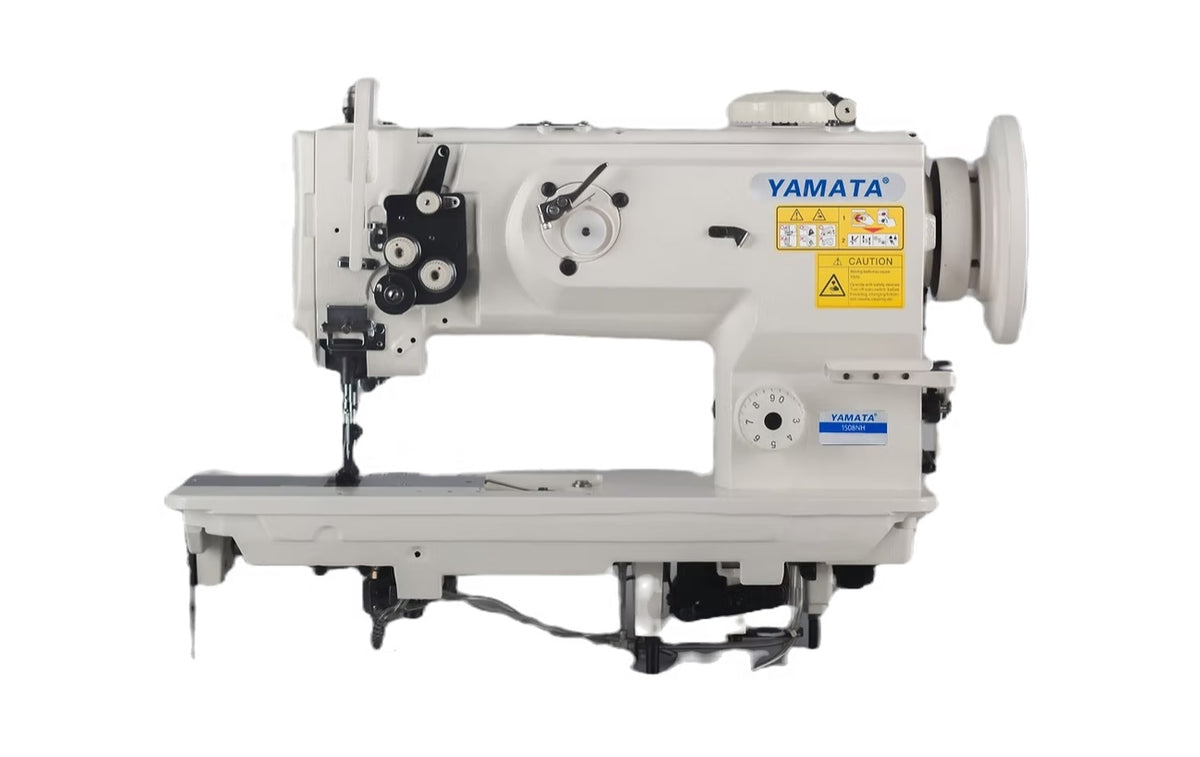

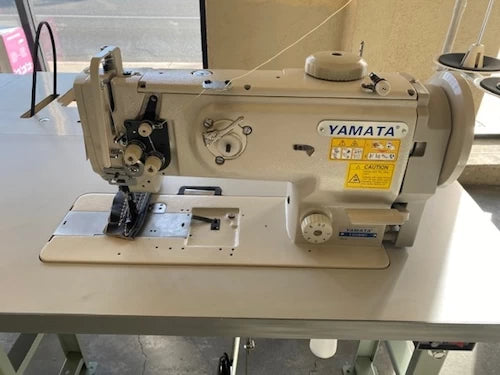

Yamata FY-1508NH

Heavy Duty Single Needle Walking Foot Industrial Sewing Machine With Table, Legs, Servo Motor, and LED Lamp

About the FY-1508NH

High-Quality & Economical Prices

The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering.

The 1508NH is very much like a Juki 1508NH with some improvements such as an adjustable Climbing Device and an Adjustable Take-Up Guide for thread loop timing

Heavy Weight Materials

MACHINE FEATURES:

  • Built-in Knee Lifter
  • Built-in Bobbin Winder
  • Safety Clutch Reset Button
  • Drop in Large Bobbin
  • Rectangular Feed Motion
  • Semi-automatic Lubrication System
  • Large vertical Automatically Oiled Hook
  • High Needle Bar Stroke
  • 190R Needle System
  • High Presser Foot Lift
  • Quick Release Knee Presser Pedal
  • Easy Dial-Adjustable stitch regulator
  • Reverse
  • Built-In Synchronizer Hub
  • Adjustable Climbing Devic
  • Large Hand Wheel

MACHINE SPECIFICATIONS:

  • Max speed: 2000 SPM
  • Max stitch length: 10mm
  • Needle bar stroke: 38mm
  • Max presser foot:
  • By knee: 16mm
  • By hand: 9mm
  • Working space: 255mm

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch, you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of the Servo motor speed control, most users find the machine easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
