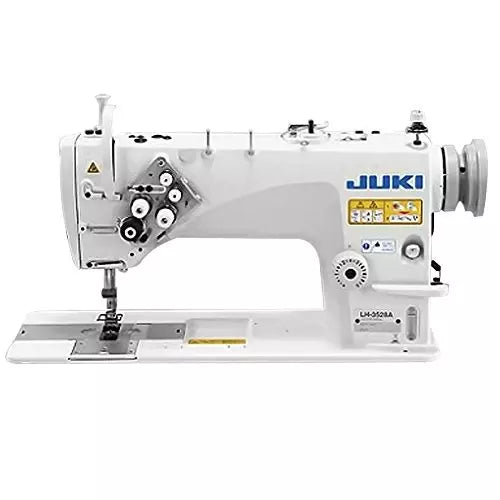

JUKI LH-3528A 2 Needle Semi-Dry Head Lockstitch Industrial Sewing Machine (¼" Standard Gauge) With Table and Servo Motor

JUKI LH-3528A 2 Needle Semi-Dry Head Lockstitch Industrial Sewing Machine (¼" Standard Gauge) With Table and Servo Motor

LH-3528A

JUKI LH-3528A 2 Needle Semi-Dry Head Lockstitch Industrial Sewing Machine (¼" Standard Gauge) With Table and Servo Motor

$4,975.95
$4,975.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Specifications
  • Manuals & warranty
  • Servo Motor

JUKI LH-3528A 2 Needle Semi-Dry Head Lockstitch Industrial Sewing Machine (¼" Standard Gauge) With Table and Servo Motor

JUKI LH-3528A 2

Needle Semi-Dry Head Lockstitch Industrial Sewing Machine (¼" Standard Gauge) Comes With Table, Legs, Servo Motor and LED Lamp

This is the cutting-edge model 2-needle sewing machine which comes with substantially enhanced mechanisms such as the direct-drive mechanism, semi-dry head, new thread tension control mechanism and improved oiling system.All models of the LH-3500A Series are provided with a semi-dry head to eliminate staining with oil from the frame (the needle

bar part).

  • A thread tension control mechanism has been developed for each type of sewing machine in order to achieve the best-suited thread tension for its purpose. Unique to JUKI
  • Two selectable new-method oiling mechanisms. Unique to JUKI
  • The sewing machine for jeans and heavy-weight materials (G type) produces well-tensed seams by the optimization of the feed mechanism.
  • Highly reliable thread-trimming mechanism
  • The internal mechanism of the sewing machine has been thoroughly re-investigated to achieve further improvement of maintainability and workability.
  • The operation panels CP-18A and CP-180A are provided with a production support function.

MACHINE SPECIFICATIONS:

  • Application: Medium-weight
  • Hook: Vertical Axis Regular Hook
  • Lubrication: Semi-dry/hook section: Minute Quantity Lubrication
  • Max. Sewing Speed: 3,000 Stitches per Minute
  • Distance from needle to Machine Arm: 120mm x 266mm x 87mm
  • Feed system Changeover between the Needle: Feed and Bottom Feed
  • Max. Stitch Length: 5mm
  • Needle Bar Stroke: 33.4mm
  • Thread: Take-Up Slide Type
  • Lift of the Presser Foot by Hand: 7mm
  • Lift of the Presser Foot by Knee: 13mm
  • Oiling Method: Eco-oil Method (Circulation Type), Clean oil Method
  • Tank Capacity: 280cm
  • Lubricating Oil: Juki New Defrix Oil no.1 (equivalent to ISO VG7)
  • Needle: DPx5(#10) #9~#16
  • Bobbin: #203470
  • Machine Head Weight: 48kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
