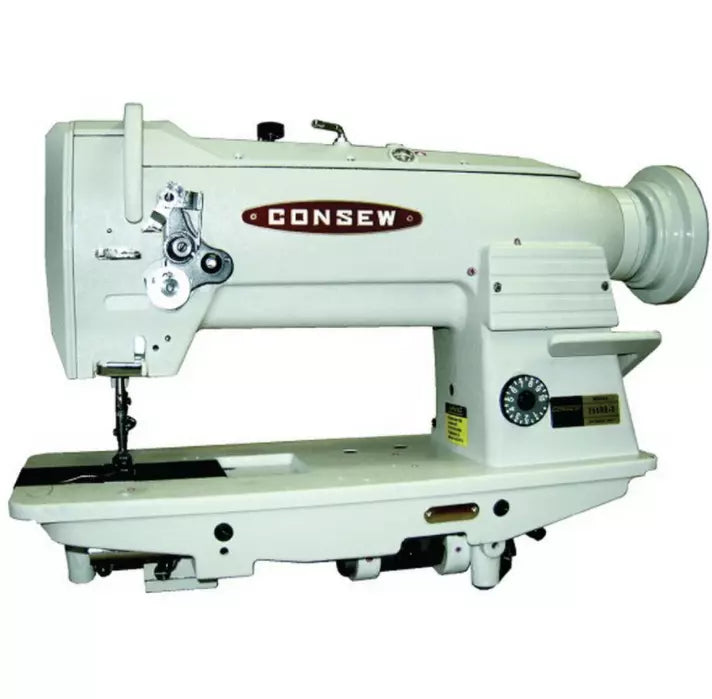

Consew 255RB-3 Walking Foot Heavy Duty Single Needle Triple Feed Drop Feed Needle Feed and Alternating (Walking) Presser Feet Lockstitch Sewing Machine With Table and Servo Motor

SKU:255RB-3

$3,099.95

$3,099.95 Market price: ~~$3,999.00~~ Save 22%

Sale Sold out

Shipping calculated at checkout.

Head Only No Yes

Upgrade to T-Leg Table w- Wheels No, Thank You. Yes, Please.

Delivery within 3-5 working days

View full details

Description
About
Features
Specifications
Application
Manuals & warranty
Servo Motor
More accessories

Consew 255RB-3 Walking Foot Heavy Duty Single Needle Triple Feed Drop Feed Needle Feed and Alternating (Walking) Presser Feet Lockstitch Sewing Machine With Table and Servo Motor

Consew 255RBL-25

Walking Foot Heavy Duty Single Needle Triple Feed Drop Feed Needle Feed and Alternating (Walking) Presser Feet Lockstitch Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

With: Large Bobbin and Vertical Axis Hook, Centra-Lube®, Semi-Automatic Lubrication System, 2 1/2 S.P.I. (10mm) Stitch Length, Reverse Feed, Safety Clutch

MACHINE DESCRIPTION:

The Consew 255RB-3 Sewing Machine contains a variety of features the include, but not limited to: Walking Foot, Heavy Duty, Single Needle, Triple Feed, Drop Feed, Needle Feed, and Alternating (Walking) Presser Feet, Lockstitch Machine, Large Bobbin and Vertical Axis Hook, Centra-Lube®, Semi-Automatic Lubrication System, 2 1/2 S.P.I. (10mm) Stitch Length, Reverse Feed and Safety Clutch.

MACHINE APPLICATIONS:

For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics, and various laminated and coated materials
Designed for stitching such products as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelwear accessories, sports, and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.

MACHINE FEATURES:

Centra-Lube® semi-automatic lubrication system
Automatic hook lubrication
Oil fed take-up
Large bobbin and vertical axis hook
Compound feed, walking foot mechanism assures uniform stitching
Simple wing nut adjustment permits raising and lowering of the center foot to allow for sewing different thicknesses of material
Safety clutch prevents the hook from being damaged
Safety-type handwheel
Stitch length indicator on the outside of the machine
All sizes of cording feet available
Standard attachments easily installed
Reverse stitching
Long Stitch - 21/2 SPI (10mm)
Large bobbin and vertical axis hook and reverse feed and High-lift

MACHINE SPECIFICATIONS:

Number of Needles: 1 (Single)
Feeding Mechanism: Walking Foot
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 2800
Clearance Under Presser Foot: 9/16" (14mm)
Stitch Length: 2-1/2 s.p.i. (10mm)
Work Space: 10 1/4" (258mm)
Needle: 135 x 17
Bobbin: Pre-Wound U
Bed Size: 7" 28-1/4" (177mm x 718mm)
Stitch Type: 301
Needle Bar Stroke: 1 5/16" (33mm)
Hook: 15040

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>PARTS & ACCESSORIES for the CONSEW 255RB-3</h2> Needles: <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a> Bobbins: <a href="https://www.goldstartool.com/bobbin-consew-15041.htm" target="_blank"></a><a href="https://www.goldstartool.com/bobbin-consew-15041.htm" target="_blank">Bobbin - Consew #15041</a> Rotary Hook: <a href="https://www.goldstartool.com/rotary-hook-consew-15040.htm" target="_blank">Rotary Hook - Consew #15040</a> Rotary Hook Base (bobbin case): <a href="https://www.goldstartool.com/hook-base-consew-15040-2.htm" target="_blank">Hook Base - Consew #15040-2</a><a href="https://www.goldstartool.com/needle-plate-throat-plate-feed-dog-for-most-industrial-lockstitch-sewing-machines-combo.htm" target="_blank"> </a>Needle Bar: <a href="https://www.goldstartool.com/needle-bar-consew-16703.htm" target="_blank">Needle Bar - Consew #16703</a> Complete Tension Bracket: <a href="https://www.goldstartool.com/tension-bracket-complete-19421ca.htm" target="_blank">Complete Tension Bracket For Consew #19421CA</a>

THE ADVANTAGES OF A SERVO MOTOR:

They use up to 90% less power than clutch motors
They are 1/3 lighter than clutch motors
With a flick of the switch you can reverse motor rotation
No parts to wear out or adjust.
No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

PARTS & ACCESSORIES for the CONSEW 255RB-3

Needles: Sewing Machine Needles 135x17

Bobbins: Bobbin - Consew #15041

Rotary Hook: Rotary Hook - Consew #15040

Rotary Hook Base (bobbin case): Hook Base - Consew #15040-2

Needle Bar: Needle Bar - Consew #16703

Complete Tension Bracket: Complete Tension Bracket For Consew #19421CA

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
