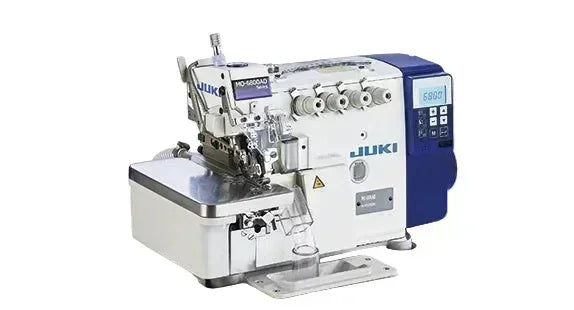

JUKI MO-6814S DD Direct Drive 4-Thread Overlock Industrial Serger With Table and Direct Drive Motor

JUKI MO-6814S DD Direct Drive 4-Thread Overlock Industrial Serger With Table and Direct Drive Motor

MO-6814S DD Direct Drive

JUKI MO-6814S 4-Thread Overlock Industrial Serger With Table and Servo Motor

$2,199.95
$2,199.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Table Size
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Specifications
  • Manuals & warranty
  • More accessories

JUKI MO-6814S

4-Thread Overlock Industrial Serger Comes With Table, Legs, Servo Motor and LED Lamp

THIS ADVANCED OVERLOCK/SAFETY STITCH MACHINE IS EASIER TO USE AND PROMISES SUPERIOR COST-EFFECTIVENESS.

JUKI MO-6814S DD Direct Drive

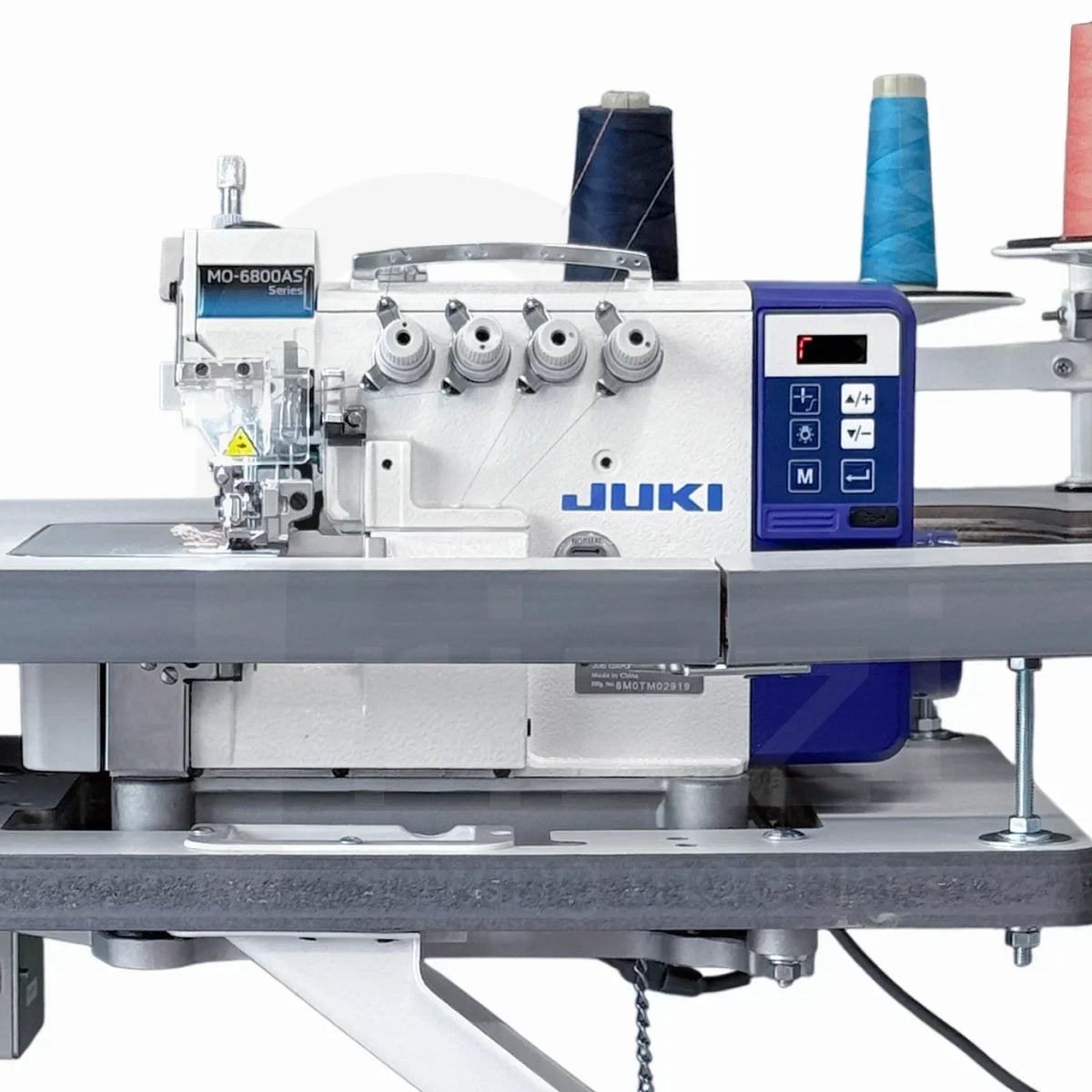

4-Thread Overlock Industrial Serger Comes With Table, Legs, Direct Drive Motor, and LED Lamp

THIS ADVANCED OVERLOCK/SAFETY STITCH MACHINE IS EASIER TO USE AND PROMISES SUPERIOR COST-EFFECTIVENESS.

The MO-6800S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This advanced overlock / safety stitch machine is easier to use and promises superior cost-effectiveness.

THE MACHINE ACHIEVES BEAUTIFULLY FINISHED SEAMS OF IMPROVED QUALITY EVEN WHEN RUN AT A HIGH SPEED.

The machine is widely applicable to the sewing of light- to heavy-weight materials. Since the machine is provided with a needle thread take-up mechanism and a looper thread take-up lever, it ensures high-quality, well-tensed and soft seams with a beautiful texture which flexibly correspond to the elasticity of the materials even when run at speeds as high as 7,000 sti/min. In addition, the machine has a wider and brighter needle entry and provides improved responsiveness to the materials, thereby helping the operator use the machine more easily. The optimally-balanced design of the machine reduces both operating noise and vibration, contributing to more comfortable sewing work.

THE MACHINE IS PROVIDED WITH FUNCTIONS WHICH CONTRIBUTE TO EASIER OPERATION.

The differential-feed micro-adjustment mechanism, external increasing of the differential feed ratio and the main feed dog height can all be adjustable on the front face of the sewing machine with a screwdriver. The machine is provided as standard with functions which enable easy and best-suited adjustments according to the material to be used.

MACHINE SPECIFICATIONS:

  • Model name: MO-6814S DD Direct Drive
  • Stitch Type: 2-Needle Overlock
  • Stitch style in the U.S.A.: 514
  • Max. Sewing speed: 7,000 Stitches Per Minute
  • Stitch length: 0.6 ~ 3.8 (4.5) mm
  • Needle gauge (mm): 2.0
  • Over edging width (mm): 2.0, 3.0, 4.0
  • Differential feed ratio:
  • For gathering 1:2 (Max. 1:4)
  • For stretching 1:0.7 (Max. 1:0.6)
  • Needle bar stroke: 24.5mm(60H:27.0mm)
  • Inclination angle of the needle: 20°
  • Needle bar bushing Lower bushing method
  • Needle: DC 27 (excluding some subclass model)
  • Max. Lift of the presser foot: 7mm (excluding some subclass model)
  • Max. Presser foot pressure: 63.7N (6.5kg)
  • Stitch adjusting method: By push-button
  • Differential-feed adjusting method: By lever (with micro-adjustment)
  • Weight of the machine head: 28kg
  • Lubrication: Automatic
  • Lubricating oil: JUKI Machine Oil 18 (equivalent to ISO VG 18)
  • Needle cooler: Provided as standard
  • Needle thread heat remover: Provided as standard
  • Micro-lifter: Option

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Direct Drive Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3>PARTS for the JUKI MO-6814S</h3>
<p><strong></strong><strong><em>NEEDLE PLATE<br></em></strong><strong>Needle Plate: </strong><a href="https://www.goldstartool.com/needle-plate-juki-401-59834.htm" target="_blank">#401-59834</a></p>
<p></p>
<p><strong><em>LOOPERS</em></strong><br><strong>Upper Looper: </strong><a href="https://www.goldstartool.com/juki-upper-looper-700-00798.htm" target="_blank">#700-00798</a><br><strong>Lower Looper: </strong><a href="https://www.goldstartool.com/lower-looper-juki-700-00405.htm" target="_blank">#700-00405<br></a><strong>Chain Looper:</strong> <a href="https://www.goldstartool.com/upper-looper-juki-goldstar-118-88302.htm" target="_blank">#700-00473</a></p>
<p></p>
<p><strong><em>KNIVES</em></strong><br><strong>Upper Knife:</strong> <a href="https://www.goldstartool.com/upper-knife-juki-700-00229.htm" target="_blank">#700-00229</a><br><strong>Lower Knife:</strong> <a href="https://www.goldstartool.com/lower-knife-juki-700-00399.htm" target="_blank">#700-00399</a></p>
<p><br><strong><em>PRESSER FOOT</em></strong><br><strong>Presser Foot Assembly: </strong><a href="https://www.goldstartool.com/presser-foot-asm-juki-401-59849.htm" target="_blank">#401-59849</a></p>
<p><a href="https://www.goldstartool.com/lower-knife-juki-700-00399.htm" target="_blank"></a></p>

PARTS for the JUKI MO-6814S

NEEDLE PLATE

Needle Plate: #401-59834

LOOPERS

Upper Looper: #700-00798

Lower Looper: #700-00405

Chain Looper: #700-00473

KNIVES

Upper Knife: #700-00229

Lower Knife: #700-00399

PRESSER FOOT

Presser Foot Assembly: #401-59849

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
