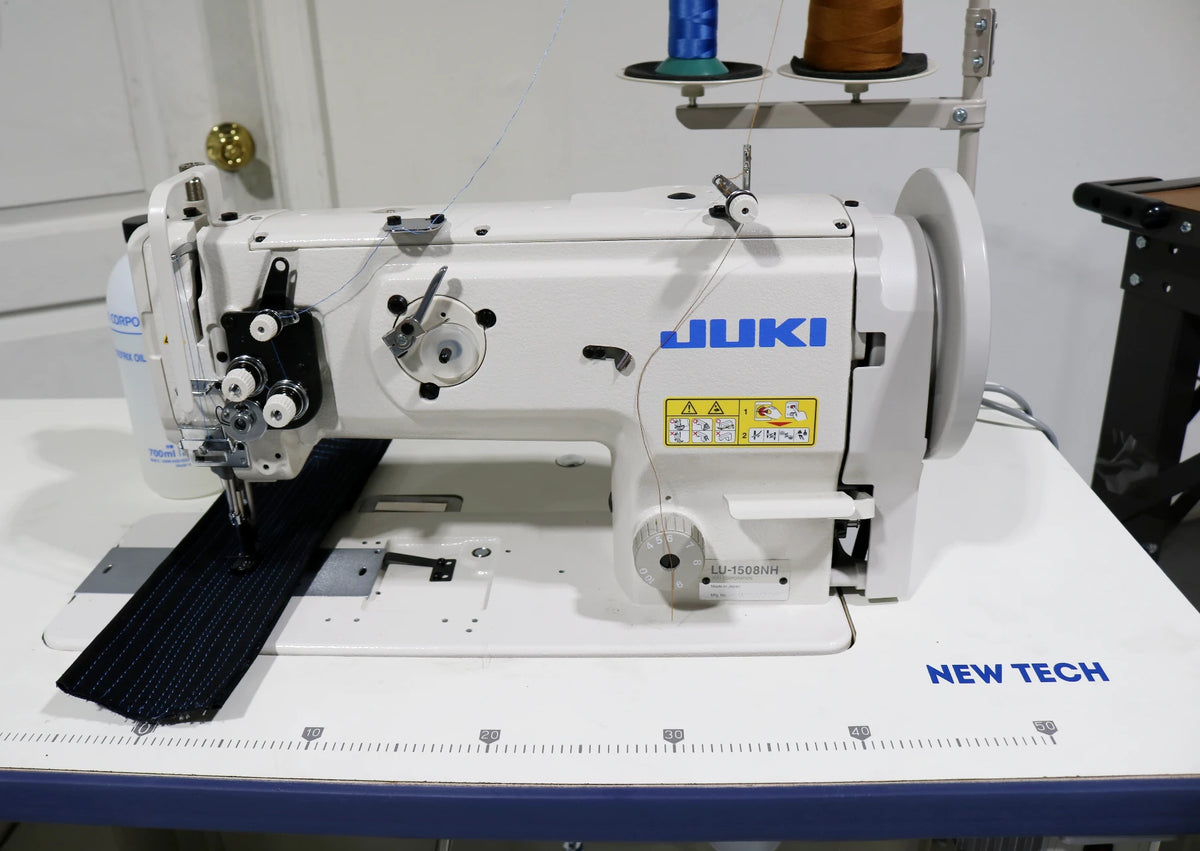

JUKI LU-1508NS Heavy Duty Single Needle Unison Feed Lockstitch Machine With Vertical-axis Large Hook, Table, and Servo Motor

JUKI LU-1508NS Heavy Duty Single Needle Unison Feed Lockstitch Machine With Vertical-axis Large Hook, Table, and Servo Motor

LU-1508NS

JUKI LU-1508NS Heavy Duty Single Needle Unison Feed Lockstitch Machine With Vertical-axis Large Hook, Table, and Servo Motor

$3,399.95
$3,399.95 Market price: $4,299.99 Save 20%
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Specifications
  • Manuals & warranty
  • Servo Motor
  • More accessories

JUKI LU-1508NS Heavy Duty Single Needle Unison Feed Lockstitch Machine With Vertical-axis Large Hook, Table, and Servo Motor

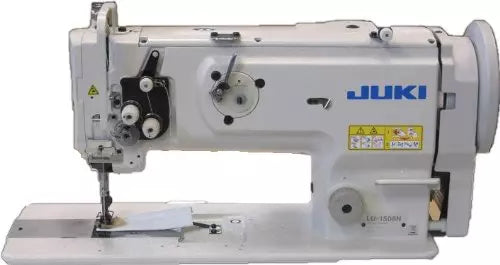

The JUKI LU-1508NS

Heavy Duty Single Needle Unison Feed Lockstitch Machine With Vertical-axis Large Hook Comes With Table, Legs, Servo Motor and LED Lamp

The maximum stitch length is 10mm. The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering. With its sufficient needle-bar stroke of 38mm and long 190R needle, the machine supports the sewing of extra heavy materials. The machine comes with an extra large steel hand-wheel with a diameter as large as φ175.

Improved operability.

  • The stitch length can be easily selected by the stitch dial.
  • The machine is provided with many improved features that offer enhanced operability such as an easy-to-observe area around the needle, placement of the bobbin winder on the front face of the machine arm, and a large handwheel (φ160)
  • A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup. (Machines equipped with automatic thread trimmer are excluded.)
  • The machine is full-open-type top design makes it possible to fully open the top of the machine arm. Thanks to this design, adjusting works can be done without tilting the machine head.
  • The machine is equipped as standard with a safety clutch for preventing hook breakage. Reset work can be done simply by pressing a button.

The alternating vertical movement mechanism prevents irregular stitches.

  • The machine has adopted a new mechanism that does not change the ratio of alternate vertical movement of the walking foot and presser foot even when the material thickness changes.
  • Even when a heavy-weight material is used, the presser foot lift does not decrease. This means that the presser foot comes into contact with the material at exactly the same time that it does when sewing lighter-weight sections of the material. As a result, the walking foot retains the material with a consistent pressure to prevent irregular stitches
  • The amount of the alternating vertical movement of the walking foot and presser foot can be adjusted up to the maximum of 6.5mm according to the height of multilayered portions of material.

Consistent seam quality.

  • With the adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism, and a unison feed mechanism, the machine can feed heavy materials powerfully and smoothly. Well tensed seams are consistently produced without pitch errors.
  • With its maximum stitch length of 9mm, the machine can be applied to a broader range of uses.

The machine comes with a dual-tension mechanism.

The 1-needle type machine has adopted a dual-tension mechanism, with which the machine can support high-tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light- to heavy-weight.

The highly efficient vertical-axis double-capacity hook is equipped as standard.

With the adoption of this vertical-axis doublecapacity hook, the frequency of bobbin thread changing is reduced, promising sewing work of increased efficiency.

MACHINE SPECIFICATIONS:

  • Application: Heavy-Weight
  • Max. Sewing Speed: 2,500 Stitches per Minute
  • Max. Stitch Length: 9mm (forward/backward)
  • Needle Bar Stroke: 38mm
  • Lift of the Presser Foot by Knee: 16mm
  • Alternating Vertical Movement: 2.5~6.5mm
  • Thread: #30～#5, B46～B138, Nm=60/3～20/3
  • Thread Take-Up: Slide Type
  • Needle (at the time of delivery): Standard 190R or 135x17(Nm180) Nm125~Nm200
  • Bobbin: Large Capacity #B9117-563-000
  • Locus Feed: Complete Rectangular Feed
  • Lubrication: Centralized oil wick lubrication (hook: automatic)
  • Lubrication Oil: Juki New Defrix Oil No.2 (equivalent to ISO VG32)
  • Distance from needle to machine arm: 255mm
  • Bed Size: 517mm x 178mm
  • Weight of the Machine Head: 44.5kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>ACCESSORIES for the JUKI LU-1508NS</h2>
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-m-style-bobbins-18034.htm" target="_blank"></a><a href="https://www.goldstartool.com/large-capacity-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-b9117-563-000.htm" target="_blank">Large Capacity Bobbin #B9117-563-000</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Bobbin Case - Metal "M" Size #18045</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-juki-214-10006.htm" target="_blank">Needle Plate - JUKI #214-10006</a><br><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank">Feed Dog - JUKI #400-19908<br></a><br><em><strong>PRESSER FOOT KIT<br></strong></em><a href="https://www.goldstartool.com/walking-foot-presser-foot-kit-18-sets-of-feet.htm" target="_blank">Walking Foot Presser Foot Kit - 18 Sets of Feet</a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a></p>
<p><strong><em>COMPATIBLE PRESSER FOOT OPTIONS</em><br></strong><a href="https://www.goldstartool.com/with-teeth-walking-presser-foot-set-10796t-10795t.htm" target="_blank">With Teeth Walking Presser Foot Set #10796T, 10795T</a><br><a href="https://www.goldstartool.com/without-teeth-walking-presser-foot-set-10796-10795.htm" target="_blank">Without Teeth Walking Presser Foot Set #10796, 10795</a><br><a href="https://www.goldstartool.com/zcording-welting-piping-industrial-walking-presser-foot-set-s84-s83-.htm" target="_blank">Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83<br></a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-s31-s32.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #S31, S32</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795K<br></a><a href="https://www.goldstartool.com/zipper-cording-welting-piping-industrial-walking-presser-foot-set-s94-s93-.htm" target="_blank">Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93</a><br><a href="https://www.goldstartool.com/left-edge-guide-topstitch-industrial-walking-presser-foot-s585l.htm" target="_blank">Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L<br></a><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-s585r.htm" target="_blank">Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R<br></a><a href="https://www.goldstartool.com/left-triple-transport-walking-presser-foot-set-10796l-10795l.htm" target="_blank">Left Triple Transport Walking Presser Foot Set #10796L, 10795L<br></a><a href="https://www.goldstartool.com/right-triple-transport-industrial-walking-presser-foot-set-10796r-10795r.htm" target="_blank">Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R</a><br><br></p>
<p></p>
<h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong></em><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p>
<p><strong><em>GUIDES<br></em></strong><a href="https://www.goldstartool.com/practical-suspended-edge-guide-gb-6-juki-mah-15201-0a0.htm" target="_blank">Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0</a></p>

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

ACCESSORIES for the JUKI LU-1508NS

Needles: Sewing Machine Needles 135x17

Bobbins: Large Capacity Bobbin #B9117-563-000

Bobbin Case: Bobbin Case - Metal "M" Size #18045

Needle Plate: Needle Plate - JUKI #214-10006

Feed Dog: Feed Dog - JUKI #400-19908

PRESSER FOOT KIT

Walking Foot Presser Foot Kit - 18 Sets of Feet

COMPATIBLE PRESSER FOOT OPTIONS

With Teeth Walking Presser Foot Set #10796T, 10795T

Without Teeth Walking Presser Foot Set #10796, 10795

Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83

Welting / Piping / Cording Walking Presser Foot Set #S31, S32

Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795K

Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93

Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L

Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R

Left Triple Transport Walking Presser Foot Set #10796L, 10795L

Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R

OTHER ATTACHMENTS

BINDERS/FOLDERS

Raw Edge Plain Tape Binder Binding Attachment #100LS

Double Fold Binder / Binding Attachment Folder #508L

Top Mount Collarette Binder Top Clean

Table Mount Coverstitch Collarette Binder #S124A

HEMMER

Single Fold Up Turn Hemmer #S75U

BUTTONHOLER

Buttonholer Attachment #YS-4455

RUFFLER

Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E

GUIDES

Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
