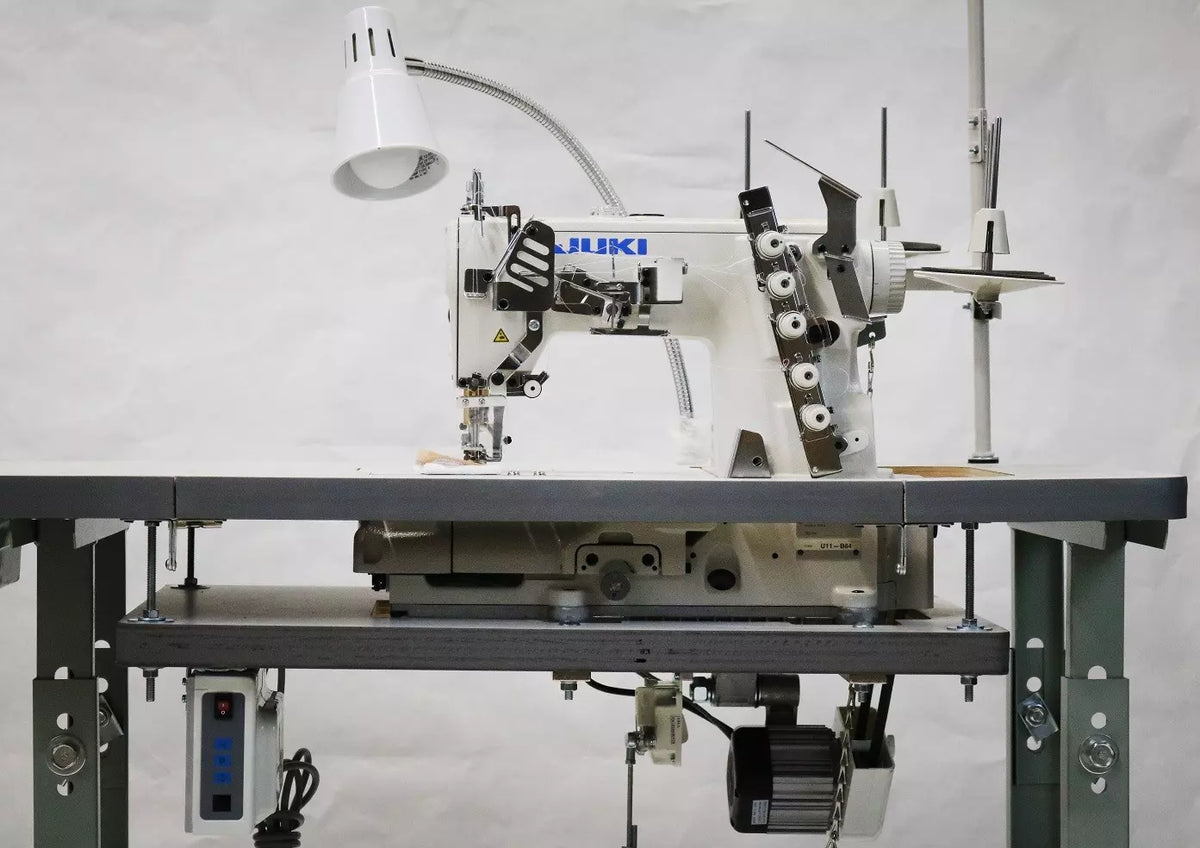

JUKI MF-7523 3 Needle Coverstitch Industrial Sewing Machine With Table and Servo Motor

JUKI MF-7523 3 Needle Coverstitch Industrial Sewing Machine With Table and Servo Motor

MF-7523

JUKI MF-7523 3-Needle Coverstitch Industrial Sewing Machine With Table and Servo Motor

$3,199.95
$3,199.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor
  • More accessories

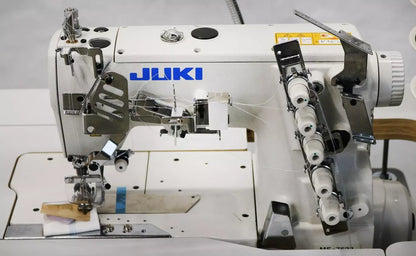

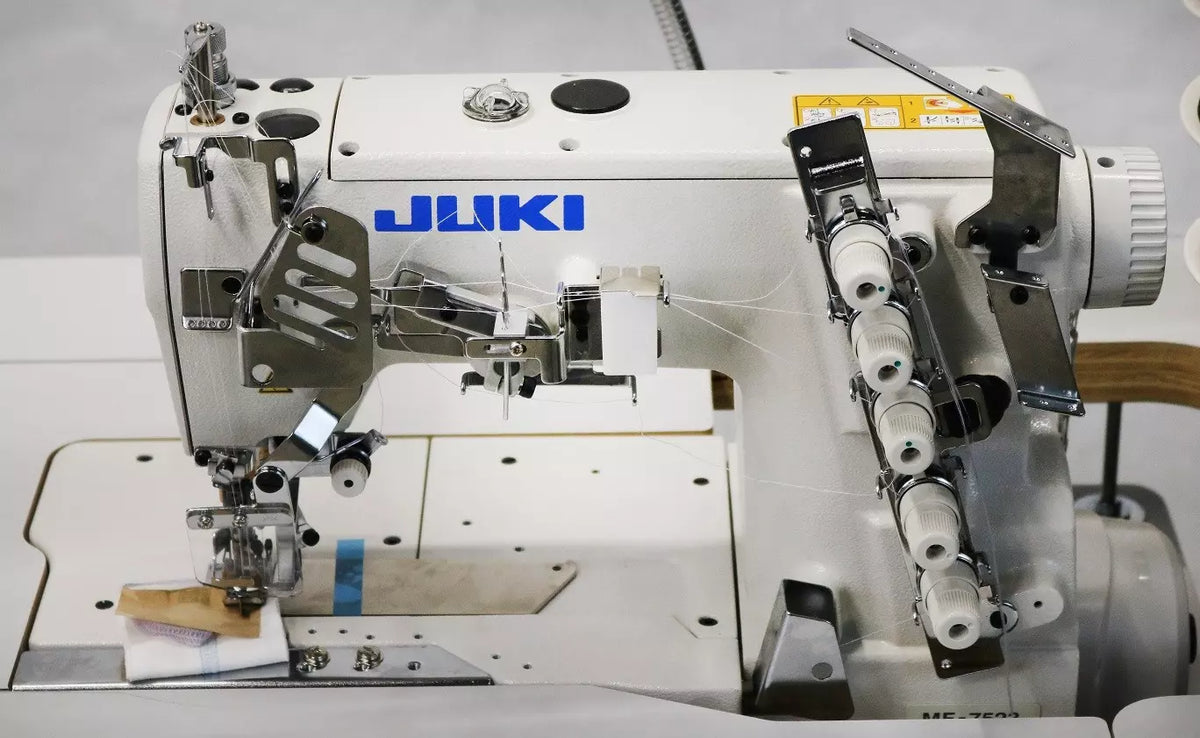

JUKI MF-7523

3-Needle Coverstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

This Juki 3 Needle Coverstitch machine is perfect for hemming of sleeves and bottoms of t-shirts and the covering stitches for sportswear and knitwear. However, it is not a specific-purpose model, but can be used for a broad range of processes independently.  Our package for this machine includes a professional table, lamp, pedal and high-quality adjustable servo motor.

MACHINE FEATURES:

No Looper thread Twining

The rotating part of the looper thread camshaft is covered to prevent the looper thread from twining around the looper thread camshaft. A V-shaped thread catcher has been installed on the looper thread cam bracket to easily clamp the looper thread, which is likely to twine around the cam.

Needle Bar Stroke Conversion Mechanism

By changing over the needle bar stroke, penetrating force of the needle as well as thread tension to fit heavy-weight materials (fleece, blankets) can be obtained. The needle bar stroke can be changed by adjusting the eccentric pin. (Changing of parts is not required. Factory-set at the time of delivery: 31mm; for sewing heavy-weight materials: 33mm) Micro-Lifter Mechanism Elastic material or delicate material can be sewn with the presser foot kept slightly raised. This effectively helps reduce the degree of slippage, warpage, and damage to the material.

Stitch Type Change Over

It is now possible to change the stitch type, such as elastic soft-seams for innerwear and high-quality well-tensed seams for outerwear. The stitch type can be changed over (soft-seams/well-tensed seams) simply by changing the thread path.

Differential-feed Micro-adjustment Mechanism

It is possible to finely adjust the differential feed amount to a best-suited value for the material to be used. The differential feed ratio is constant even if the stitch length is changed Feed Dog Inclination Adjustment The feed dog inclination can be externally adjusted with ease. This adjustment mechanism effectively helps improve the material holding ability of the feed dog and prevent uneven material feed and puckering.

MACHINE SPECIFICATIONS:

  • Stitch Type: 3-Needle
  • Example of application: Hemming and covering for knits and general knitted fabrics
  • Stitch Length: 1.2mm to 3.6mm (can be adjusted up to 4.4mm)
  • Needle Bar Stroke: 31mm (or 33mm when changing over the eccentric pin)
  • Needle Gauge: 3 needle... 4.8mm, 5.6mm, and 6.4mm
  • Needle: #UYX128GAS 9S~12S (10S standard)
  • Lift of the Presser Foot: 5mm (with top and bottom covering stitch), 8mm (with bottom covering stitch)
  • Looper Mechanism: Spherical rod drive method
  • Lubricating system: Forced lubrication method by gear pump
  • Lubrication: Automatic Lubricating oil Juki Machine Oil No.18 (equivalent to ISO VG18)
  • Oil reservoir capacity: Oil gauge lower line: 600cc to upper line: 900cc
  • Weight of the machine head: 46kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>PARTS &&nbsp;ACCESSORIES for the JUKI MF-7523 </h2>
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/coverstitch-chainstitch-industrial-sewing-machine-needle-system-uyx128gas.htm">#UYX128GAS 9S~12S (10S standard)</a><strong><br>Oil</strong>:&nbsp;<a href="https://www.goldstartool.com/juki-new-defrix-oil-no-18.htm" target="_blank">Juki New Defrix Oil No. 18 #MML018900CA</a><br><br></p>
<h3>COMPATIBLE ATTACH<em></em>MENTS</h3>
<p><em><strong>PRESSER FEET</strong></em><a href="https://www.goldstartool.com/3-needle-coverstitch-binder-presser-foot-94909.htm" target="_blank"><br>3 Needle Coverstitch Binder Presser Foot #94909</a><a href="https://www.goldstartool.com/1-4-foot-for-3-needle-industrial-coverstitch-pegasus-257301b-64.htm" target="_blank"><br>1/4" Gauge Presser Foot for 3 Needle Industrial Coverstitch - Pegasus #257301B-64<br></a><em><strong></strong></em><a href="https://www.goldstartool.com/3-needle-64mm-gauge-binder-presser-foot-for-industrial-coverstitch-sewing-machines.htm" target="_blank">3​-Needle 6.4MM Gauge Binder Presser Foot For Industrial Coverstitch Sewing Machines</a><a href="https://www.goldstartool.com/glide-on-foot-for-industrial-coverstitch-sewing-machines.htm" target="_blank"><br>Glide-On Foot For Industrial Coverstitch Sewing Machines #257468T-64</a><a href="https://www.goldstartool.com/presser-foot-adjustable-wide-roller-guide-for-coverstitch-machine.htm" target="_blank"><br>Presser Foot Adjustable Wide Roller Guide for Coverstitch Machine</a><a href="https://www.goldstartool.com/industrial-coverstitch-foot-with-center-guide-6.4mm.htm" target="_blank"><br>Industrial Coverstitch Foot with Center Guide, 6.4mm</a><a href="https://www.goldstartool.com/s537a-adjustable-elastic-big-guide-foot-64mm.htm" target="_blank"><br>S537A Coverstitch Sewing Machine Adjustable Elastic Big Guide Foot 6.4MM</a><em><strong>​</strong></em><br></p>
<p><em><strong>BINDERS/FOLDERS</strong></em><br><a href="https://www.goldstartool.com/coverstitch-collarette-clean-finish-binder-clean-finishtopand-bottomtable-mount.htm" target="_blank">Coverstitch Collarette Clean Finish Binder #s124B<br></a><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A<br></a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank">Top Mount Collarette Binder Top Clean Industrial Cover Stitch Sewing Machine</a><br><a href="https://www.goldstartool.com/belt-loop-folder-for-coverstitch-and-double-needle-s66.htm" target="_blank">Belt Loop Folder for Coverstitch and Double Needle #S66</a></p>
<p><strong><em>GUIDE</em></strong><br><a href="https://www.goldstartool.com/adjustable-cloth-guide-binding-tool.htm" target="_blank">Adjustable Cloth Guide Used for 2 or 3 Needle Coverstitch Machine #DAYU205​</a></p>
<p></p>

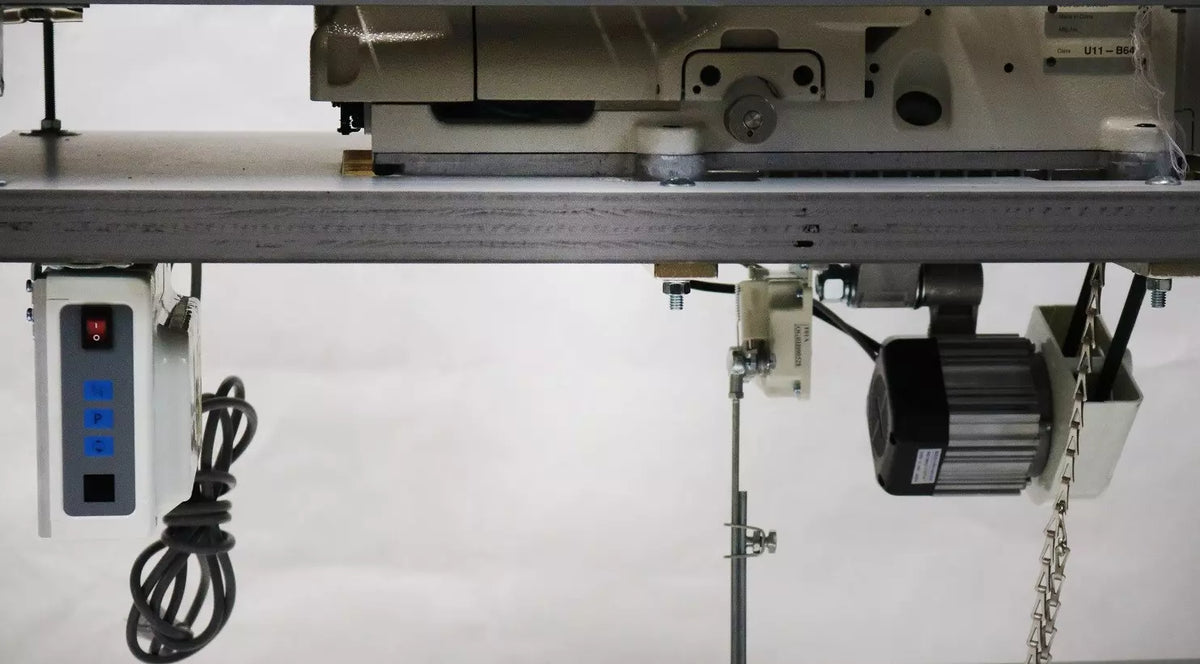

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

PARTS & ACCESSORIES for the JUKI MF-7523

Needles: #UYX128GAS 9S~12S (10S standard)

Oil: Juki New Defrix Oil No. 18 #MML018900CA

COMPATIBLE ATTACHMENTS

PRESSER FEET

3 Needle Coverstitch Binder Presser Foot #94909

1/4" Gauge Presser Foot for 3 Needle Industrial Coverstitch - Pegasus #257301B-64

3-Needle 6.4MM Gauge Binder Presser Foot For Industrial Coverstitch Sewing Machines

Glide-On Foot For Industrial Coverstitch Sewing Machines #257468T-64

Presser Foot Adjustable Wide Roller Guide for Coverstitch Machine

Industrial Coverstitch Foot with Center Guide, 6.4mm

S537A Coverstitch Sewing Machine Adjustable Elastic Big Guide Foot 6.4MM

BINDERS/FOLDERS

Coverstitch Collarette Clean Finish Binder #s124B

Table Mount Coverstitch Collarette Binder #S124A

Top Mount Collarette Binder Top Clean Industrial Cover Stitch Sewing Machine

Belt Loop Folder for Coverstitch and Double Needle #S66

GUIDE

Adjustable Cloth Guide Used for 2 or 3 Needle Coverstitch Machine #DAYU205

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Tutorial - How to Assemble Juki MF-7523 3-Needle Coverstitch - Goldstartool

Product Showcase - S124B Coverstitch Collarette Clean Finish Binder -Goldstartool.com

Product Showcase - JUKI MF-7523 Coverstitch Industrial Sewing Machine
