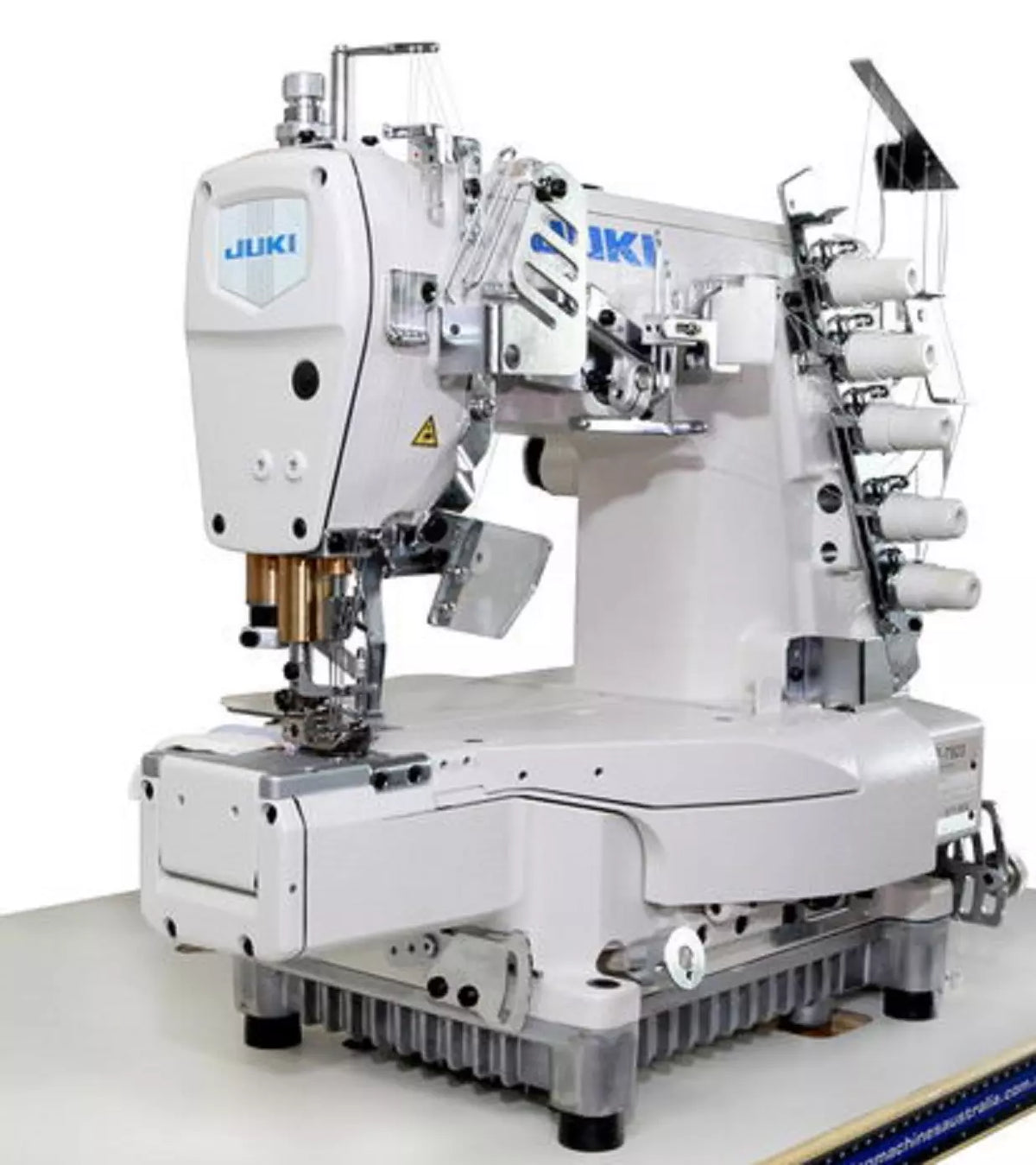

JUKI MF-7923 3 Needle High-Speed Free-Arm Top and Bottom Coverstitch, Cylinder Bed Industrial Sewing Machine With Table and Servo Motor

JUKI MF-7923 3 Needle High-Speed Free-Arm Top and Bottom Coverstitch, Cylinder Bed Industrial Sewing Machine With Table and Servo Motor

MF-7923

JUKI MF-7923 3-Needle High-Speed Free-Arm Top and Bottom Coverstitch, Cylinder Bed Industrial Sewing Machine With Table and Servo Motor

$4,099.95
$4,099.95 Market price:
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Choose Table Type
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor
  • More accessories

JUKI MF-7923

3-Needle High-Speed Free-Arm Top and Bottom Coverstitch, Cylinder Bed Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

The machine can be used for the hemming process of the sleeves and bottoms of T-shirts and for the covering process for sportswear and knitwear. It is not a specific-purpose model, but a basic one which can be used for a broader range of processes independently.

MACHINE FEATURES:

STITCH TYPE CHANGE OVER:

It is now possible to change over the stitch type, such as elastic soft-seams for innerwear and high-quality well-tensed seams for outerwear. The stitch type can be changed over (soft-seams/well-tensed seams) simply by changing the thread path.

DIFFERENTIAL-FEED MICRO-ADJUSTMENT MECHANISM:

It is possible to finely adjust the differential feed amount to a best-suited value for the material to be used. The differential feed ratio is constant even if the stitch length is changed

MACHINE SPECIFICATIONS:

  • Stitch Type: 3-Needle
  • Max. Sewing Speed: 6,500 RPM
  • Needle: UY128GAS #9S~#12S (standard #10S)
  • Lift of the Presser Foot: 5mm (with top and bottom covering stitch), 8mm (with bottom covering stitch)
  • Lubrication: Automatic
  • Lubricating oil: JUKI Machine Oil No.18 (equivalent to ISO VG18)
  • Weight of the machine head: 42kg
  • Servo Motors are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>ACCESSORIES for the JUKI MF-7923</h2>
<p><strong>Needles:</strong>&nbsp;<a href="https://www.goldstartool.com/coverstitch-chainstitch-industrial-sewing-machine-needle-system-uyx128gas.htm">#UYX128GAS 9S~12S (10S standard)</a><br>Oil:&nbsp;<a href="https://www.goldstartool.com/juki-new-defrix-oil-no-18.htm" target="_blank">Juki New Defrix Oil No. 18 #MML018900CA</a><br><br></p>
<h3>COMPATIBLE ATTACHMENTS</h3>
<p><em><strong>PRESSER FEET</strong></em><a href="https://www.goldstartool.com/3-needle-coverstitch-binder-presser-foot-94909.htm" target="_blank"><br>3 Needle Coverstitch Binder Presser Foot #94909</a><a href="https://www.goldstartool.com/1-4-foot-for-3-needle-industrial-coverstitch-pegasus-257301b-64.htm" target="_blank"><br>1/4" Gauge Presser Foot for 3 Needle Industrial Coverstitch - Pegasus #257301B-64<br></a><a href="https://www.goldstartool.com/3-needle-64mm-gauge-binder-presser-foot-for-industrial-coverstitch-sewing-machines.htm" target="_blank">3​-Needle 6.4MM Gauge Binder Presser Foot For Industrial Coverstitch Sewing Machines</a><a href="https://www.goldstartool.com/glide-on-foot-for-industrial-coverstitch-sewing-machines.htm" target="_blank"><br>Glide-On Foot For Industrial Coverstitch Sewing Machines #257468T-64</a><a href="https://www.goldstartool.com/presser-foot-adjustable-wide-roller-guide-for-coverstitch-machine.htm" target="_blank"><br>Presser Foot Adjustable Wide Roller Guide for Coverstitch Machine</a><a href="https://www.goldstartool.com/industrial-coverstitch-foot-with-center-guide-6.4mm.htm" target="_blank"><br>Industrial Coverstitch Foot with Center Guide, 6.4mm</a><a href="https://www.goldstartool.com/s537a-adjustable-elastic-big-guide-foot-64mm.htm" target="_blank"><br>S537A Coverstitch Sewing Machine Adjustable Elastic Big Guide Foot 6.4MM</a><em><strong>​</strong></em><br></p>
<p><em><strong>BINDERS/FOLDERS</strong></em><br><a href="https://www.goldstartool.com/coverstitch-collarette-clean-finish-binder-clean-finishtopand-bottomtable-mount.htm" target="_blank">Coverstitch Collarette Clean Finish Binder #s124B<br></a><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A<br></a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank">Top Mount Collarette Binder Top Clean Industrial Cover Stitch Sewing Machine</a><br><a href="https://www.goldstartool.com/belt-loop-folder-for-coverstitch-and-double-needle-s66.htm" target="_blank">Belt Loop Folder for Coverstitch and Double Needle #S66</a></p>
<p><strong><em>GUIDE</em></strong><br><a href="https://www.goldstartool.com/adjustable-cloth-guide-binding-tool.htm" target="_blank">Adjustable Cloth Guide Used for 2 or 3 Needle Coverstitch Machine #DAYU205​</a></p>

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

ACCESSORIES for the JUKI MF-7923

Needles: #UYX128GAS 9S~12S (10S standard)

Oil: Juki New Defrix Oil No. 18 #MML018900CA

COMPATIBLE ATTACHMENTS

PRESSER FEET

3 Needle Coverstitch Binder Presser Foot #94909

1/4" Gauge Presser Foot for 3 Needle Industrial Coverstitch - Pegasus #257301B-64

3-Needle 6.4MM Gauge Binder Presser Foot For Industrial Coverstitch Sewing Machines

Glide-On Foot For Industrial Coverstitch Sewing Machines #257468T-64

Presser Foot Adjustable Wide Roller Guide for Coverstitch Machine

Industrial Coverstitch Foot with Center Guide, 6.4mm

S537A Coverstitch Sewing Machine Adjustable Elastic Big Guide Foot 6.4MM

BINDERS/FOLDERS

Coverstitch Collarette Clean Finish Binder #s124B

Table Mount Coverstitch Collarette Binder #S124A

Top Mount Collarette Binder Top Clean Industrial Cover Stitch Sewing Machine

Belt Loop Folder for Coverstitch and Double Needle #S66

GUIDE

Adjustable Cloth Guide Used for 2 or 3 Needle Coverstitch Machine #DAYU205

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
