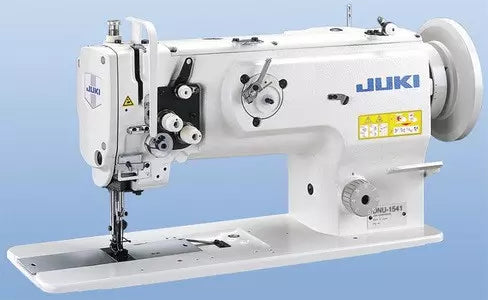

JUKI DNU-1541 Single Needle Walking Foot Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI DNU-1541 Single Needle Walking Foot Lockstitch Industrial Sewing Machine With Table and Servo Motor

DNU-1541

JUKI DNU-1541 Single Needle Walking Foot Lockstitch Industrial Sewing Machine With Table and Servo Motor

$2,179.96
$2,179.96 Market price: $3,200.00 Save 31%
Sale Sold out
Shipping calculated at checkout.
Head Only
Upgrade to T-Leg Table w- Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Specifications
  • Manuals & warranty
  • Servo Motor
  • More accessories

JUKI DNU-1541

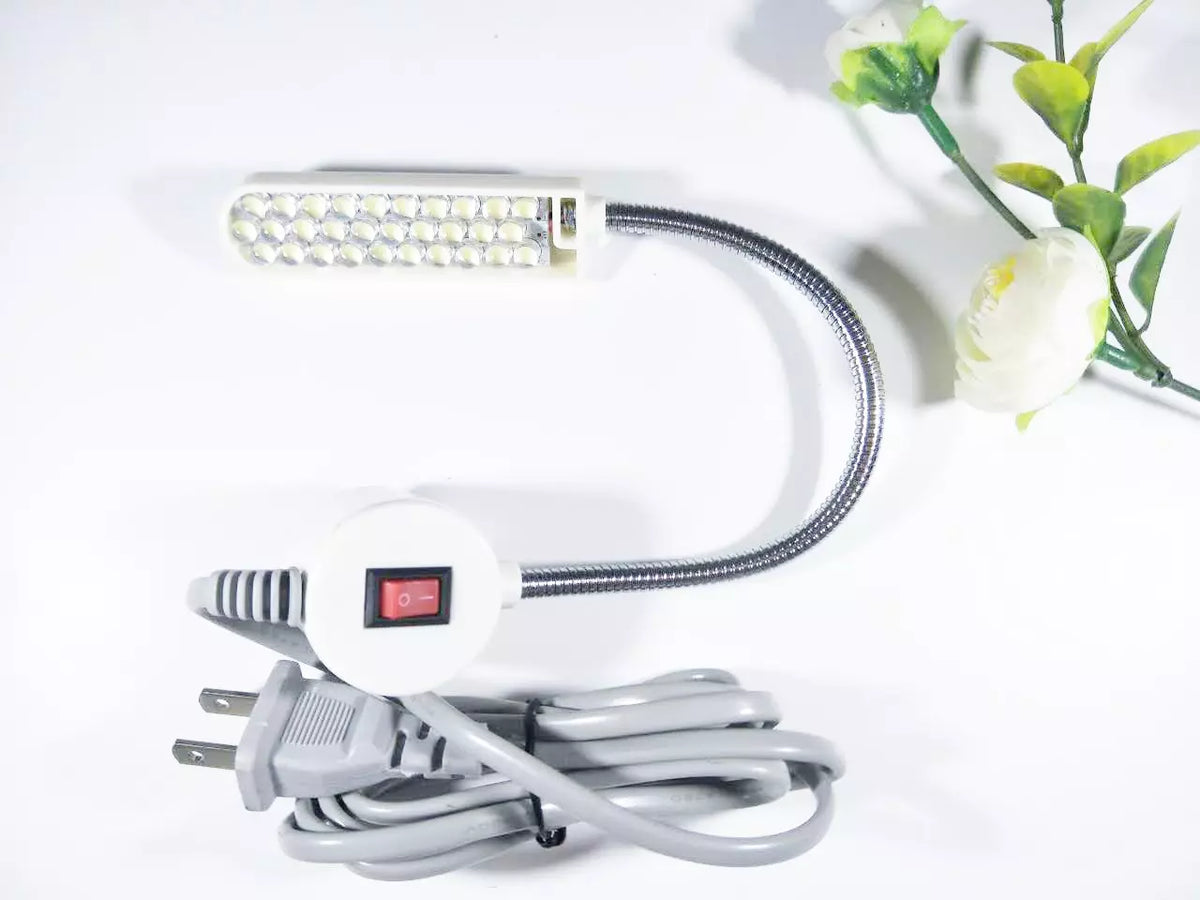

Single Needle Walking Foot Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

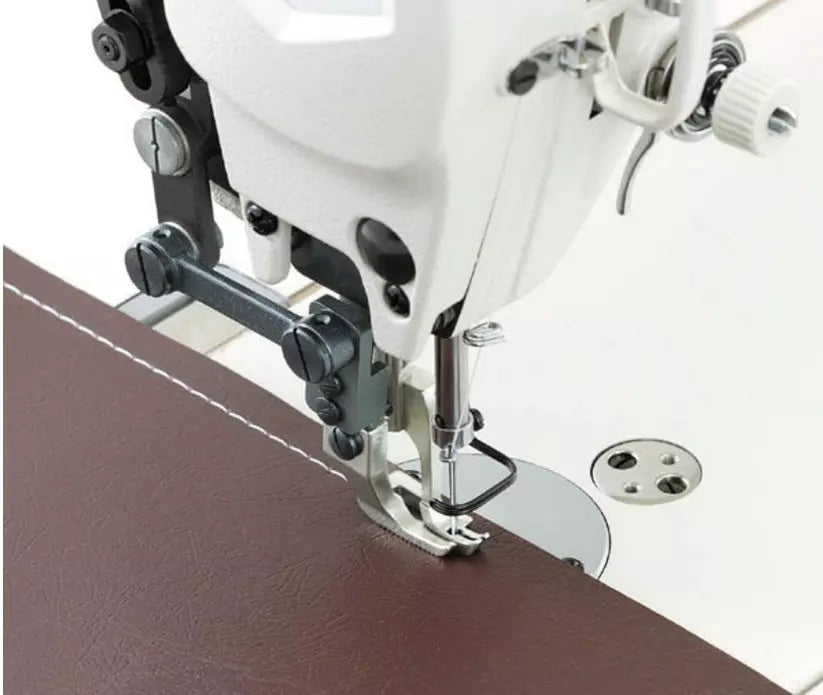

With its larger needle bar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness. The machine's rectangular feeding motion promises the consistent feeding of materials of all thicknesses without stitch gathering.

MACHINE SPECIFICATIONS:

  • Max. Sewing Speed: 2,500 Stitch per Minute
  • Max. Stitch Length: 9mm (forward / backward)
  • Needle Bar Stroke: 36mm
  • Lift of the Presser Foot by Hand: 9mm
  • Lift of the Presser Foot by Knee: 16mm
  • Thread Take-Up: Slide Type
  • Amount of Altering Vertical Movement: 2.5~6.5mm
  • Hook: Horizontal-Axis Full-Rotary Double-Capacity Hook
  • Needle (at time of delivery): 135x17 (Nm160) Nm125~Nm180
  • Bobbin Case: #18045
  • Bobbins: #18034
  • Thread: #30~#5, B46~B138, Nm=60/3~15/3
  • Pitch Changing Method: By Dial
  • Lubrication: Centralized Oil Wick Lubrication (hook: automatic)
  • Lubricating Oil: Juki New Defrix oil No.2 (equivalent to ISO VG32)
  • Distance from Needle to Machine Arm: 264mm
  • Bed Size: 477x178mm
  • Motor Output: 750W
  • Weight of the Machine Head: 36.5kg

DOWNLOADS:

U.S. WARRANTY

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>ACCESSORIES for the JUKI DNU-1541</h2>
<div class="row">
<div class="col-lg-auto">
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-m-style-bobbins-18034.htm" target="_blank">Large "M" Style Bobbins #18034</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Bobbin Case - Metal "M" Size #18045</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-juki-214-10006.htm" target="_blank">Needle Plate - JUKI #214-10006</a><br><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank">Feed Dog - JUKI #400-19908<br></a><br><em><strong>PRESSER FOOT KIT<br></strong></em><a href="https://www.goldstartool.com/walking-foot-presser-foot-kit-18-sets-of-feet.htm" target="_blank">Walking Foot Presser Foot Kit - 18 Sets of Feet</a>
<a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a></p></div>
<div class="col-lg">

<strong><em>COMPATIBLE PRESSER FOOT OPTIONS</em><br></strong><a href="https://www.goldstartool.com/with-teeth-walking-presser-foot-set-10796t-10795t.htm" target="_blank">With Teeth Walking Presser Foot Set #10796T, 10795T</a><br><a href="https://www.goldstartool.com/without-teeth-walking-presser-foot-set-10796-10795.htm" target="_blank">Without Teeth Walking Presser Foot Set #10796, 10795</a><br><a href="https://www.goldstartool.com/zcording-welting-piping-industrial-walking-presser-foot-set-s84-s83-.htm" target="_blank">Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83<br></a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-s31-s32.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #S31, S32</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795K</a><br><a href="https://www.goldstartool.com/cut-out-welting-presser-foot-set.htm" target="_blank">Cut Out Welting Presser Foot Set #S68</a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/zipper-cording-welting-piping-industrial-walking-presser-foot-set-s94-s93-.htm" target="_blank">Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93</a><br><a href="https://www.goldstartool.com/left-edge-guide-topstitch-industrial-walking-presser-foot-s585l.htm" target="_blank">Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L<br></a><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-s585r.htm" target="_blank">Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R<br></a><a href="https://www.goldstartool.com/left-triple-transport-walking-presser-foot-set-10796l-10795l.htm" target="_blank">Left Triple Transport Walking Presser Foot Set #10796L, 10795L<br></a><a href="https://www.goldstartool.com/right-triple-transport-industrial-walking-presser-foot-set-10796r-10795r.htm" target="_blank">Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R</a><br>
<p></p><h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank"><br></a></em><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank">Raw Edge Binder Set #S64​</a><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><a href="https://www.goldstartool.com/right-angle-binder-set-s60.htm" target="_blank"><br>Right Angle Binder Set #S60</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p>
<p><strong><em>GUIDES<br></em></strong><a href="https://www.goldstartool.com/practical-suspended-edge-guide-gb-6-juki-mah-15201-0a0.htm" target="_blank">Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0</a></p>


</div>
</div>

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

ACCESSORIES for the JUKI DNU-1541

Needles: Sewing Machine Needles 135x17

Bobbins: Large "M" Style Bobbins #18034

Bobbin Case: Bobbin Case - Metal "M" Size #18045

Needle Plate: Needle Plate - JUKI #214-10006

Feed Dog: Feed Dog - JUKI #400-19908

PRESSER FOOT KIT

Walking Foot Presser Foot Kit - 18 Sets of Feet

COMPATIBLE PRESSER FOOT OPTIONS

With Teeth Walking Presser Foot Set #10796T, 10795T

Without Teeth Walking Presser Foot Set #10796, 10795

Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83

Welting / Piping / Cording Walking Presser Foot Set #S31, S32

Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795K

Cut Out Welting Presser Foot Set #S68

Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93

Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L

Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R

Left Triple Transport Walking Presser Foot Set #10796L, 10795L

Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R

OTHER ATTACHMENTS

BINDERS/FOLDERS

Raw Edge Binder Set #S64

Raw Edge Plain Tape Binder Binding Attachment #100LS

Right Angle Binder Set #S60

Double Fold Binder / Binding Attachment Folder #508L

Top Mount Collarette Binder Top Clean

Table Mount Coverstitch Collarette Binder #S124A

HEMMER

Single Fold Up Turn Hemmer #S75U

BUTTONHOLER

Buttonholer Attachment #YS-4455

RUFFLER

Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E

GUIDES

Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI DNU-1541S & S75U/S75D Folders - Goldstartool.com - 800-868-4419

Product Showcase - Juki DNU-1541 Ultimate Test - Goldstartool.com
