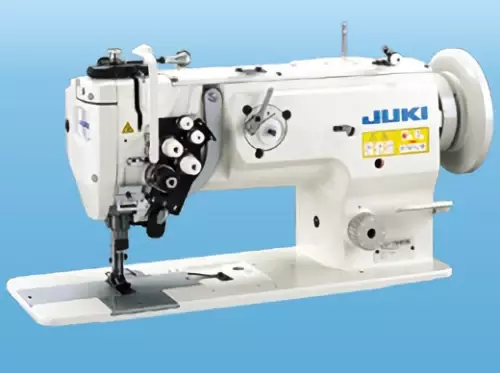

JUKI LU-1565N 2 Needle Unison Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor
JUKI LU-1565N 2 Needle Unison Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor
reseller raitng

JUKI LU-1565N 2 Needle Unison Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

SKU: LU-1565N
Weight: 1 lbs
Vendor: JUKI
Our Price: $5774.99
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

JUKI LU-1565N

2-Needle Unison Feed With organized split needle bar Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

About JUKI LU-1565N

The basic machine and its outstanding response to
the sewing of heavy materials.

The organized split needle bar mechanism makes it possible to stop or reset the left or right needle by operating a one-touch utility lever. The machine produces neatly finished stitches at corner parts of the material.

JUKI's unique feed mechanism promises excellent efficiency of feed. In addition to the
standard models of 1-needle and 2-needle machines and other models intended for special
purposes are available, including models for extra heavy materials and one having a
thread trimmer. The machine is applicable to an extended range of heavy materials for
industrial use, such as cargo handling belts and containers, as well as those for
general use, such as car seats, sofas, and bags, thereby contributing to improved
quality and increased productivity.

MACHINE FEATURES:

  • The alternating vertical movement mechanism prevents irregular stitches.
  • Consistent seam quality.
  • Higher lift of the presser foot.
  • A new feed mechanism with a rectangular feeding motion prevents stitch gathering.
  • The highly efficient vertical-axis double-capacity hook is equipped as standard.
  • The area around the needle entry is designed to be easily observed.
  • The walking foot and presser foot's alternating vertical movement can be set and changed with ease.
  • A helpful automatic reverse feed function is provided as standard.
  • Thread trimming without fail.
  • Improved operability.

MACHINE SPECIFICATIONS:

  • Applications: Heavyweight
  • Max. Sewing Speed: 2,000 sti/min
  • Max. Stitch Length: 9mm (forward/backward)
  • Needle Bar Stroke: 33.4 mm
  • Lift of the presser foot:
    • By hand: 9mm
    • By knee: 13mm (max.)
  • Auto-Lifter: Option
  • Needle Gauge: 4.8mm, 6.4mm, 7.9mm (3/16, 1/4, 5/16)
  • Organized Split Needle Bar: Provided as standard
  • Alternating Vertical Movement: 2.5~6.5mm
  • Thread Take-up: Slide type
  • Hook: Vertical-axis double-capacity hook
  • Needle at time of delivery: 135×17 (Nm160) Nm125~Nm180
  • Thread: #30~#5, B46~B138, Nm=60/3~20/3
  • Locus of feed: Rectangular feed
  • Needle Thread Tension Box: Single-tension method
  • Pitch Changing Method: By dial
  • Bobbin Thread Winder: Built on the machine head
  • Knee-lifter Mechanism:  Built on the machine head
  • Safety Mechanism: Provided as standard (reset with the push of a button)
  • Lubrication: By an oiler (hook: automatic)
  • Lubricating Oil: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
  • Distance from needle to machine arm: 255mm
  • Bed Size: 517mm×178mm
  • Weight of the machine head: 45kg

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
