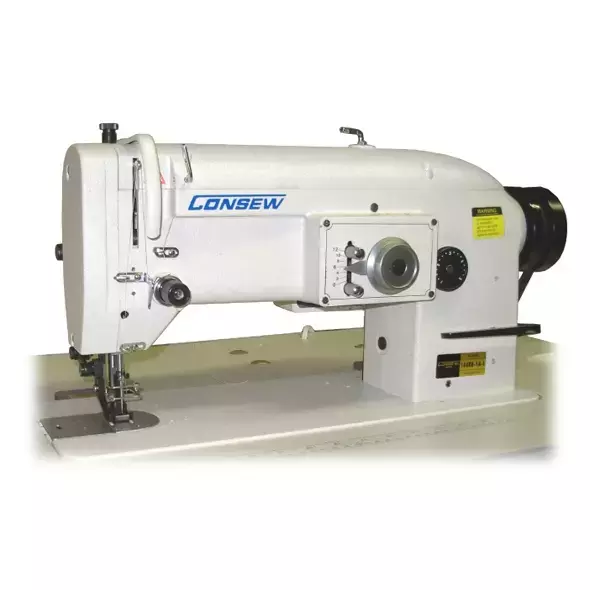

Consew 146RB-2A-1 Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor
Consew 146RB-2A-1 Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor
reseller raitng

Consew 146RB-2A-1 Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

SKU: 146RB-2A-1
Weight: 1 lbs
Vendor: Consew
Our Price: $4299.00
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

Consew 146RB-2A-1 Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

Horizontal Axis Transverse Rotary Hook, Large Bobbin, Wide Zig-Zag, Reverse Feed

MACHINE APPLICATIONS:

  • Three step/two stitch zig-zag
  • For sewing elastic and other stretch materials
  • For stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins and similar products
  • Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials

MACHINE FEATURES:

  • Large bobbin and horizontal axis transverse rotary hook
  • Wide zig-zag
  • Upper feed mechanism helps avoid slippage when sewing
  • Reverse stitching
  • Stitches per minute - 2500*
  • Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included).

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2500
  • Clearance Under Presser Foot: 25/64" (10mm)
  • Stitch Length: 5 s.p.i. (5mm)
  • Work Space: 10" (255mm)
  • Needle: 135 x 17
  • Bobbin: Metal 212O34-312 Pre-wound M
  • Needle Bar Stroke: 1-11/32" (34mm)
  • Bed Size: 7" 18 7/8" (178m x 480mm)
  • Hook: B79
  • Zig-Zag Stitch Width: 3/8" (9.5mm)

DOWNLOADS:

146RB Series Spec Sheet (PDF)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
