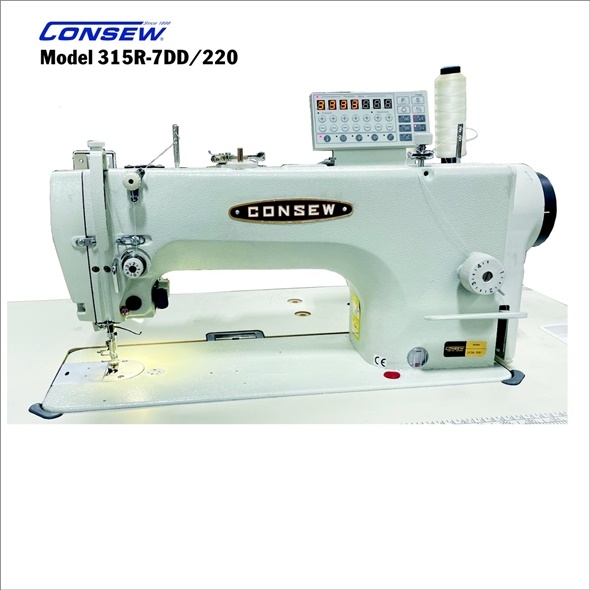

Name: Consew 315R-7DD/220 Single Needle needle Feed Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor
Brand: Consew
SKU: 315R-7DD/220
Price: 3499.95 USD
Availability: InStock

Consew 315R-7DD/220 Single Needle needle Feed Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor

Our Price: $3499.95

Choose Color

Choose Options

Head Only (no table)

Upgrade to T-Leg Table w/ Wheels:

Assembled

Consew 315R-7DD/220 Single Needle needle Feed Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor

SKU: 315R-7DD/220

Weight: 90 lbs

Vendor: Consew

Our Price: $3499.95

Head Only (no table)

Upgrade to T-Leg Table w/ Wheels:

Assembled

Please, enter quantity for at least one product

Quantity unavailable. Try selecting a smaller quantity.

Qty:

Consew 315R-7DD/220 Single Needle needle Feed Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor

Consew 315R-7DD/220 Single Needle Feed Industrial Sewing Machine With Unassembled Table and Direct Drive Servo Motor
Direct Drive, High Speed, Single Needle, Needle Feed, Lockstitch Machine
With: • Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
• Noise and vibration absorbing table mounting
• Treadle controlled foot lifter
• Automatic reverse
• Auto-lubrication rotary hook
• Under bed thread trimmer
• Needle positioning
• Electric and manual foot lift
• Built-in stitch counter
• Locking stitch regulator
• Built-in bobbin winder
• Built-in LED light

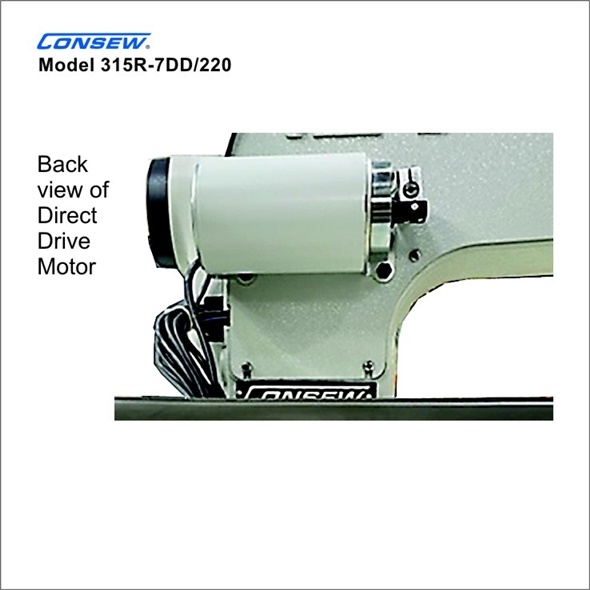

• Built-in 3/4HP, 550 watt Direct Drive Motor - 220v
• Electric thread clamp (holds thread after thread trim)

Applications

For stitching light to medium weight fabric, knits, synthetics, vinyl, canvas, denim and coated and laminated material
Suitable for attaching pockets to shirts, sewing collars and cuffs, stitching skirts, blouses, dresses, raincoats, general wearing apparel

Features

Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
Noise and vibration absorbing table mounting
Treadle controlled foot lifter
Automatic reverse
Auto-lubrication rotary hook
Under bed thread trimmer
Needle positioning
Electric and manual foot lift
Built-in stitch counter
Locking stitch regulator
Built-in bobbin winder
Built-in LED light
Built-in 3/4HP, 550 watt Direct Drive Motor - 220v
Electric thread clamp (holds thread after thread trim)

MACHINE APPLICATIONS:

Sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas, and various coated and laminated products.
Designed for stitching such products as auto, boat, and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances etc.

MACHINE FEATURES:

• Oil Pump System with Pump, Oil Pan and Adjustable Oil Flow
• Adjustable Oil Gauge
• Reverse
• Large Horizontal Axis Hook and Side-Loaded Bobbin
• Adjustable Upper Thread Tension
• Locking Stitch Regulator

MACHINE SPECIFICATIONS:

Speed, Max. (S.P.M.): 3000 *Speed depends on thread, material and operation.
Presser Foot Lift: By Hand- 5/16" (8 mm) / By Knee- 5/8" (16 mm)
Needle Bar Stroke: 1-29/64" (37 mm)
Stitch Length, Max: 3.6 s.p.i. (7 mm)
Work Space: 10-1/4" x 4-3/4" (260 x 120 mm)
Needle: 135 x 17
Pre-wound Bobbin: M

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

They use up to 90% less power than clutch motors
They are 1/3 lighter than clutch motors
With a flick of the switch you can reverse motor rotation
No parts to wear out or adjust.
No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
